2013/04/26

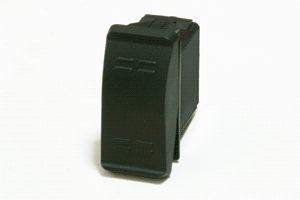

New Release of Panel Seal Rocker Switch "CL-LB series"
Tokyo, Japan - NIDEC COPAL ELECTRONICS CORP. will release Rocker Switches which are used to construction machinery and marine applications, etc. in June 2013. We are actively in progress to enter construction machinery applications which are a growing market, and we will aim to expand business areas in automotive products in the future. The development of this switch was carried out in collaboration with Metoro Denso Corp (Headquarters: Kawasaki City, Kanagawa Prefecture), which has
a highly reputed business experience in vehicle and construction machinery -related products and the switch technology held by us. We will start the sales from Single Pole Single Throw (ON-OFF) type switch. After that, we will release Single Pole Double Throw (ON-OFF-ON), alternate action, momentary action, and LED illuminated type switches.
※ To PDF catalog
FEATURES
(1) Sealed front panel
(2) Actuator is designed forexcellent operability from ergonomics standpoint
(3) Multi-function, versatile function switch
MAIN SPECIFICATION
| Switching function | 1 pole ON-OFF |
|---|---|
| Contact rating | 15A, 24V DC / 20A, 12V DC |
| Contact resistance | 10mΩ maximum (Initial) |
| Operating temp. range | 40~85℃ |
| Life | Mechanical life 150,000 cycles / Electrical life 50,000 cycles |
