Trimmpotentiometer RJ-6｜NIDEC COMPONENTS EUROPE GmbH

Trimmpotentiometer RJ-6

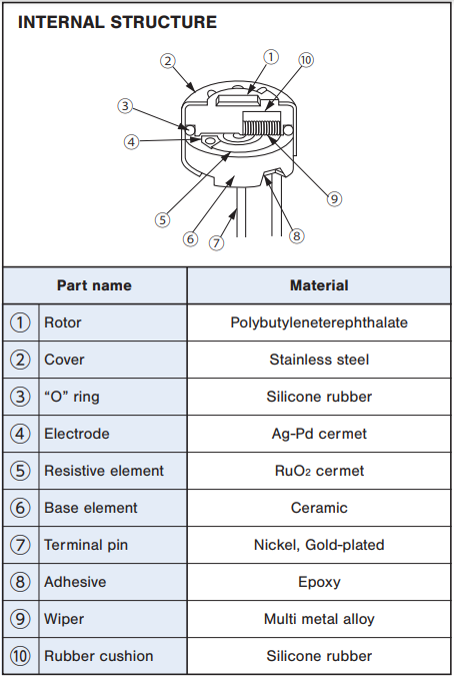

Power ratings	0.5 W (70 °C) 0 W (120 °C)
Nominal resistance range	10 Ω ~ 5 MΩ
Resistance tolerance	± 10 %
Resistance law	Linear law（B）
Maximum input voltage	DC200 V or power rating, whichever is smaller
Maximum wiper current	100 mA or power rating, whichever is smaller
Effective electrical angle	230 ° (1 turn)
End resistance	1 % or 2 , whichever is greater
C.R.V.	1 % or 3 , whichever is greater
1 % or 3 , whichever is greater	−55 ~ 120 °C
Temp. coefficient	10 Ω, 20Ω, 5 MΩ : ± 250 10-6/°C maximum 50 Ω ~ 2 MΩ : ± 100 10-6/°C maximum
Insulation resistance	1000 MΩ minimum (DC500 V)
Dielectric strength	AC900 V, 60 s
Net weight	Approx. 0.60 g (RJ-6P,W) Approx. 0.80 g (RJ-6S, X) Approx. 1.01 g (RJ-6F)

Stop strength	50 mN·m {510 gf·cm} minimum
Mechanical angle	270 ° (1 turn)
Operating torque	2~ 15 mN·m {20 ~ 153 gf·cm}
Rotational life	200 cycles 10 Ω ~ 200 Ω [ΔR/R ≦ ± (0.5 Ω +3 %)] 500 Ω ~ 5 MΩ [ΔR/R ≦ ± (0.5 Ω +2 %)]
Terminal to strength	10 N {1.02 kgf} minimum（Tensile strength）
Thrust rotor	10 N {1.02 kgf} minimum
Solderability	245 ± 3 °C, 2 ~ 3 s

{ }：Reference only

Test item	Test conditions	Specifications
Thermal shock	-65~125 °C (0.5 h), 5 cycles	[ΔR/R ≦ 1%] [S.S. ≦ 1%]
Humidity	-10~65 °C (Relative humidity 80~98%), 10 cycles, 240 h	[ΔR/R ≦ 1%]
Shock	981 m/s2, 6 ms 6 directions for 3 times each	[ΔR/R ≦ 1%] [S.S. ≦ 1%]
Vibration	Amplitude　1.52 mm or Acceleration 196 m/s2 , 10 ~ 2000 Hz, 3 directions, 12 times each	[ΔR/R ≦ 1%] [S.S. ≦ 1%]
Load life	70 °C, 0.5 W, 1000 h	[ΔR/R ≦ 2 %] [S.S. ≦ 1 %]
Low temp. operation	−55 °C, 2 h	[ΔR/R ≦ 1 %] [S.S. ≦ 2 %]
High temp. exposure	120 °C, 250 h	[ΔR/R ≦ ２ %] [S.S. ≦ 2 %]
Immersion seal	85 °C, 60 s	No leaks (No continuous bubbles)
Soldering heat	Flow： 260 ± 3 ° C、5 ~ 6 s, two times Manual soldering： 380 ± 10 °C, 3 ~ 4 s	[ΔR/R ≦ 1%]

Δ R/R: Change in total resistance

S.S.: Setting stability

Nominal resistance values (Ω)	Resistance code	Maximum input voltage(V)	Maximum wiper current (mA)
➡10	100	1.00	100
➡20	200	2.00	100
50	500	5.00	100
100	101	7.07	70.7
200	201	10.0	50.0
500	501	15.8	31.6
1k	102	22.4	22.4
2k	202	31.6	15.8
5k	502	50.0	10.0
10k	103	70.7	7.07
20k	203	100	5.00
➡25k	253	112	4.48
50k	503	158	3.16
100k	104	200	2.00
200k	204	200	1.00
➡250k	254	200	0.80
500k	504	200	0.40
1M	105	200	0.20
2M	205	200	0.10
➡5M	505	200	0.04

The products indicated by ➡ mark are manufactured upon receipt of order basis.

RJ-６	P	１０ kΩ	(１０３)
Series name	Product shape P：Top adjustment S：Side adjustment W:Top adjustment X：Side adjustment F：Rear adjustment	Resistance value	Resistance code

Nominal resistance values	➡10Ω, ➡20Ω,50Ω, 100Ω, 200Ω, 500Ω, 1kΩ, 2kΩ, 5kΩ, 10kΩ, 20kΩ, ➡25kΩ, 50kΩ, 100kΩ, 200kΩ, ➡250kΩ,500kΩ, 1MΩ, 2MΩ, ➡5MΩ

The above part numbers are all available with the respective combination of <Nominal resistance values>
Verify the above part numbers when placing orders.
The products indicated by ➡ mark are manufactured upon receipt of order basis.

PART NUMBER	Adjustment position	Form of packaging	Pieces in package	CAD
RJ-6P	Top adjustment	Plastic bag	50 pcs./pack	3D CAD（Any Model）
RJ-6W	Top adjustment	Plastic bag	50 pcs./pack	3D CAD（Any Model）
RJ-6S	Side adjustment	Plastic bag	50 pcs./pack	3D CAD（Any Model）
RJ-6X	Side adjustment	Plastic bag	50 pcs./pack	3D CAD（Any Model）
RJ-6F	Rear adjustment	Plastic bag	50 pcs./pack	3D CAD（Any Model）
