Oct. 01, 2019
New Product Lineup Announcement:

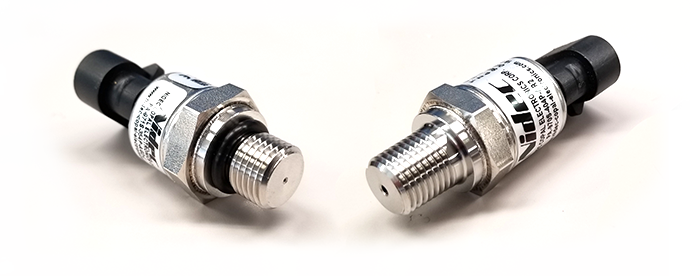

Thin Film Pressure Sensor "PA-97S series" for middle-high pressure
Thank you very much for your continuous support.
We are pleased to announce the new release of thin film pressure sensor “PA-97S series” for middle-high pressure from October 2019.
The “PA-97S series” are developed to measure liquid or gas pressure in general industrial equipment such as hydraulic equipment, machine tools, chiller, etc. By adopting metal thin-film pressure sensing element, a wide pressure range (1MPa to 80MPa) can be measured with high precision and high reliability.
The “PA-97S series” are rated IP67 with welded and integrated connector structure, and can be used in a wide range of temperature, from -40 to 125 °C.
Features
- High precision and high reliability achieved by metal thin-film technology (SUS630 equivalent diaphragm, no silicone oil)
- The maximum permitted media temperature range extends from -40 to +125 °C
*High precision with an accuracy of ±0.5 %F.S. can be achieved within a range of 0 to 105 °C
- Waterproof (IP67) with welded and integrated connector structure
- Wide variety of pressure ranges to choose from
Standard Specifications (Quick Reference Table)
| Series name | PA-970S | PA-971S | PA-972S | PA-973S | PA-978S |
|---|---|---|---|---|---|
| Rated pressure range | 0~1.0 / 2.0 / 3.5 / 5.0 / 10 / 20 / 35 / 40 / 50 / 80 MPa | ||||
| Pressure reference | Gauge (Positive) | ||||
| Pressure port | R1/4 (R2), G1/4 (G2), G3/8 (G3) | ||||
| Pressure medium | Corrosive gases / liquids compatible with SUS630 | ||||
| Analog output | 1~5 V | 0.5~4.5 V | 0~5 V | 0~10 V | 4~20 mA |
| Operating voltage | 9~36 V | 5 V ±10% | 9~36 V | 14~36 V | 9~36 V |
| Operating temp.range | -40~125 °C | ||||
| Storage temp.range | -40~125 °C | ||||
| Integrated accuracy | ± 0.5%F.S. (0~105 °C) / ±1.5 %F.S. (-40~0 °C, 105~125 °C) | ||||
| Linearity / Hysteresis | ±0 .25 %F.S. | ||||
| Protection grade | IP67 | ||||
| Connector cable | *Sold separately, Voltage output cable / Current output cable | ||||
*Product details please click here.
