Jumper switch CJS
- ●To buy this product, please go to the following Online Web stores.
Ideal for Replacing Jumper Pins, Types with Neutral Detent Available
FeaturesFeatures
- Easy to set slider with line marking
- With neutral detent type lined up to 1 pole 2contacts switch
- Compatible with most automatic pick & place machinery
- Compact and space saving SMD type
- In this series, material data sheets ideal for REACH-SVHC
surveys etc. can be downloaded in chemSHERPA-AI format. - Download chemSHERPA-AI from the list of P/N below
Standard Specifications
| Operating temp. range | -40 ~ 85 °C |
|---|---|
| Storage temp. range | -40 ~ 85 °C |
| Sealing | Washable type available with seal tape |
| Net weight | Approx. 0.05 g (CJS-1200) Approx. 0.06 g (CJS-1201) |
Electrical Characteristics
| Contact rating |
Non-switching: 100 mA 50 VDC |
|---|---|
| Contact resistance | 100 mΩ maximum |
| Insulation resistance | 100 MΩ (100 VDC) minimum |
| Dielectric strength | 250 VAC, 60 s |
Mechanical Characteristics
| Operating force | 5.9 N {0.6 kgf} maximum |
|---|---|
| Stop strength | 10 N {1.02 kgf}, 60 s |
| Solderability | 245 ±3 °C, 2~3 s |
| Soldering heat | Reflow: 255 °C (Peak temperature) *Please refer to the profile below. Manual soldering: 350 ±10 °C, 3~4 s |
| Shear (Adhesion) | 5 N {0.51 kgf} 10 s |
| Substrate bending | Width 90 mm, bend 3 mm, 5 s, 1 time |
| Pull-off strength | 5 N {0.51 kgf} 10 s |

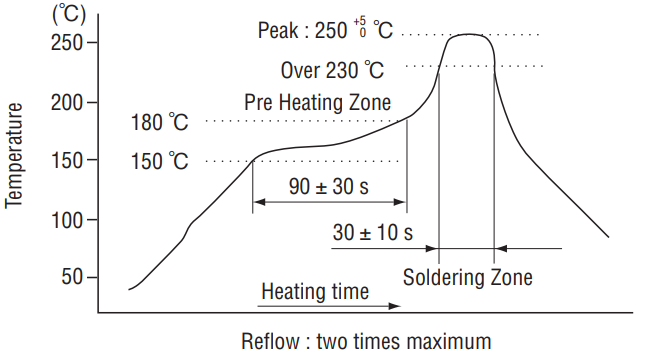

〈Reflow profile for soldering heat evaluation〉
Environmental Characteristics
| Vibration | Amplitude 1.5 mm or Acceleration 98 m/s2, 10-500 Hz, 3 directions for 10 cycles each |
|---|---|
| Shock | 490 m/s, 11 ms6 directions for 3 times each |
| Load life | Continuous load 200 cycles, 100 ±10 mA, 6 ±0.5 VDC |
| Humidity | -10 ~ 65 °C, Relative humidity 0~96 %, 24 h for 10 cycles |
| High temp. exposure | 85 °C, 96 h |
| Low temp. exposure | -40 °C, 96 h |
| Thermal shock | -40 (0.5 h) ~ 85 °C (0.5 h), 5 cycles |
Part Number Designation
| CJS - | 1 | 2 | 0 | 1 | T | B | 1 |
|---|---|---|---|---|---|---|---|
|
Series name |
No. of poles 1：SPDT 1 pole |
No. of contacts 2：2 contacts |
Setting position 0：Top setting |
Neutral detent 0：Without neutral detent 1：With neutral detent |
Form of packaging T：Taping (Reel) Blank：Bulk in plastic bag |
Shape of terminal A：J-hook B：Gull wing |
Structure 1：Non-washable type (Without seal tape) Standard type 2：Non-washable type (With seal tape) Blank : Washable type (With seal tape) |
List of Part Numbers
CAD and chemSHERPA-AI (a material data sheet ideal for REACH surveys, etc. / version: 2.10.00 or 2.09.00 available) can be downloaded from the button for each P/N in the table below. *Need to log in to download.
| Part number | Shape of terminal | Neutral detent | Structure | Packaging spec | REACH-SVHC | CAD | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CJS-1200TA1 | J-hook | Without neutral detent |
Non-washable | 1000 pcs./reel |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.10.00 or the previous ver. 2.09.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CJS-1200A1 | J-hook | Without neutral detent |
Non-washable | 100 pcs./pack |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.10.00 or the previous ver. 2.09.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CJS-1201TA1 | J-hook | With neutral detent |
Non-washable | 1000 pcs./reel |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.10.00 or the previous ver. 2.09.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CJS-1201A1 | J-hook | With neutral detent |
Non-washable | 100 pcs./pack |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.10.00 or the previous ver. 2.09.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CJS-1200TA2 | J-hook | Without neutral detent |
Non-washable | 1000 pcs./reel |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.10.00 or the previous ver. 2.09.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CJS-1200A2 | J-hook | Without neutral detent |
Non-washable | 100 pcs./pack |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.10.00 or the previous ver. 2.09.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CJS-1201TA2 | J-hook | With neutral detent |
Non-washable | 1000 pcs./reel |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.10.00 or the previous ver. 2.09.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CJS-1201A2 | J-hook | With neutral detent |
Non-washable | 100 pcs./pack |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.10.00 or the previous ver. 2.09.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CJS-1200TB1 | Gull wing | Without neutral detent |
Non-washable | 1000 pcs./reel |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.10.00 or the previous ver. 2.09.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CJS-1200B1 | Gull wing | Without neutral detent |
Non-washable | 100 pcs./pack |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.10.00 or the previous ver. 2.09.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CJS-1201TB1 | Gull wing | With neutral detent |
Non-washable | 1000 pcs./reel |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.10.00 or the previous ver. 2.09.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CJS-1201B1 | Gull wing | With neutral detent |
Non-washable | 100 pcs./pack |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.10.00 or the previous ver. 2.09.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CJS-1200TB2 | Gull wing | Without neutral detent |
Non-washable | 1000 pcs./reel |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.10.00 or the previous ver. 2.09.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CJS-1200B2 | Gull wing | Without neutral detent |
Non-washable | 100 pcs./pack |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.10.00 or the previous ver. 2.09.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CJS-1201TB2 | Gull wing | With neutral detent |
Non-washable | 1000 pcs./reel |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.10.00 or the previous ver. 2.09.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CJS-1201B2 | Gull wing | With neutral detent |
Non-washable | 100 pcs./pack |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.10.00 or the previous ver. 2.09.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CJS-1200TA | J-hook | Without neutral detent |
Washable | 1000 pcs./reel |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.10.00 or the previous ver. 2.09.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CJS-1200A | J-hook | Without neutral detent |
Washable | 100 pcs./pack |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.10.00 or the previous ver. 2.09.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CJS-1200TB | Gull wing | Without neutral detent |
Washable | 1000 pcs./reel |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.10.00 or the previous ver. 2.09.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CJS-1200B | Gull wing | Without neutral detent |
Washable | 100 pcs./pack |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.10.00 or the previous ver. 2.09.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CJS-1201TA | J-hook | With neutral detent |
Washable | 1000 pcs./reel |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.10.00 or the previous ver. 2.09.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CJS-1201A | J-hook | With neutral detent |
Washable | 100 pcs./pack |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.10.00 or the previous ver. 2.09.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CJS-1201TB | Gull wing | With neutral detent |
Washable | 1000 pcs./reel |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.10.00 or the previous ver. 2.09.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CJS-1201B | Gull wing | With neutral detent |
Washable | 100 pcs./pack |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.10.00 or the previous ver. 2.09.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
Outline Dimensions
Unless otherwise specified, tolerance: ±0.3 (Unit: mm)
● CJS-1200A1
● CJS-1200B1
Recommended P.C.B. PAD Outline Dimensions
(Unit: mm)
Note) The zero point is the center of mounting.
Packaging Specifications
〈Taping packaging specifications〉
● Taping version is packaged in 1000 pcs. per reel. Orders will be accepted for units of 1000 pcs., i.e., 1000, 2000, 3000 pcs., etc.
● Taping version is boxed with two reels (2000 pcs.).
● Maximum number of consecutive missing pieces=2 Leader length and reel dimension are shown in the diagrams below:
(Unit:mm)
-
● Embossed tape dimensions
-
● Reel dimensions
(JConforms to JIS C 0806)
-
● CJS-1200TA□, 1200TB□, 1201TA□, 1201TB□
-
(JConforms to JIS C 0806)
〈Bulk pack specifications〉
● Boxing of bulk pack in a plastic bag is performed with 100 pcs. (standard 500 pcs.) per box.
Environmental Data
