Pressure gauge for high vacuum PG-20

PG-20

PG-20

●To buy this product, please go to the following Online Web stores.

UL991 Tested, third party test report available

FeaturesFeatures

Tested UL991, third party test report available (PNP output)

Tested for conformance to UL991, third party test report available (PNP output)
Easily installable by fitting block
External diamieter φ 20 mm
Rotable display part (90° step, 270° full travel)
Integrally welded structure of sensing chip and fitting block
UL recognized, CE marking applicable

Click here for the Pressure Switch product which has tested UL991.

Standard Specifications

Model	502	103
Pressure reference	Gauge (Compound)^✽1
Rated pressure range	-0.1~0.5 MPa	-0.1~1.0 MPa
Maximum pressure	0.75 MPa	1.5 MPa
Vacuum pressure	1.4×10-4 Pa (abs) minimum
Leakage (He vacuum method)	5×10-12 Pa・m3/sec. minimum (Weld in pressure port)
Operating temp.range	-10~50 °C (No condensation)
Compensated temp. range	0~50 °C
Operating humidity range	35~85 %RH（No condensation）
Storage temp. range	-20~60 °C （Atmospheric pressure, humidity 65 %RH minimum）
Media	Gases and Liquids compatible with SUS316L
Insulation resistance	50 MΩ minimum (Between bundled electrical wirings and the pressure port. at 125 VDC)
Pressure contact material	SUS316L Double-Melt Material (Fitting and Sensor)
Pressure contact roughness	Ra: 0.15, Rz: 0.7 μm minimum^✽2
Pressure contact particle	Zero count of particle of the size 0.1 μm or bigger (By our inspection standard)
Cable connector	Cable length: 2 m cable AWG26 / include cable holder
Protection grade	IP40
Net weight	Approx. 200g (W1) Approx. 110g (W2)
Operating voltage	Voltage output type and other: 12~24 VDC ±10 % (including ripple) Current output type: 24 VDC ±10 % (including ripple)
Current consumption	30 mA maximum (No current flow from switch / Not include analog output)
CE marking	EN61326-1: 2006, EN61326-2-3: 2006 EMI: Class B, EMS: Annex BB

✽1) If you want a model of positive pressure gauge (0~Rated pressure type), please contact us separately.

✽2) The gas contacting part is treated with Electro Polishing (EP).

Analog Output

Output Voltage	1~5 VDC (Output current: 1 mA minimum / Output residence: 1.5 kΩ)
	Output accuracy: ± 1.0 ％ F.S. (The setting error and LIN / HYS are contained)
	Temperature character: ± 0.1 ％ F.S./°C (0~50 °C Reference temp. 25 °C)
Output Current	4~20 mA (Vort: 24 VDC ±10 %/ 500 Ω minimum)
	Output accuracy: ± 1.0 ％ F.S. (The setting error and LIN / HYS are contained)
	Temperature character: ± 0.1 ％ F.S. / °C (0~50 °C Reference temp. 25 °C)

Switch Output

Number of output	Output 1 or 2
Output interface	NPN / PNP transistor open collector
Switching capacity	30 VDC 100 mA minimum
Residual voltage	1.2V (NPN) / 2.2V (PNP) minimum (Land current 100 mA)
Output working chart	Separate mode / Window comparator mode
Repeatability	± 0.3 ％ F.S.minimum
Thermal error	± 0.1 ％ F.S./°C (0~50 °C Reference temp. 25 °C)
Response	Approx. 2.5, 25, 250 ms (Variable system with digital filter)
Hysteresis setting	0 〜 300counts (Select panel SW)

Display

Model	502	103
Display Method	3-1/2 Digit (7-Segment) LED display (Red LED) (Character height: 5mm)
Rotation angle	270° (90° step)
Rated display range	−.100 ~ .500 MPa	−.100 ~ 1.000 MPa
Display cycle	4 times / sec
Display accuracy	±1.0 ％ F.S. (The repeatability, liniality and hystresis are contained)
Thermal error	±0.1 ％ FS / °C (0~ 50 °C Reference temp. 25 °C)
Resolution	1 digit
Over range	Blinking of pressure display (110 % F.S. or more)
Additional function	Zero point adjustment, Panel lock

Model Number Designation

PG-20-	103	R-	N2	W2
Series name	Rated pressure 502R: -0.1~0.5MPa 103R: -0.1~1.0MPa	Pressure Reference/ Rated analog out put range R: Gauge pressure (Compound) -0.1MPa~Rated pressure	Output specification B: SW Nothing N2: SW Two outputs (NPN open collector) P2: SW Two outputs (PNP open collector) NV: SW One output (NPN open collector) +Voltage output(1~5V) PV: SW One output (PNP open collector) +Voltage output(1~5V) NA: SW One output (NPN open collector) +Current output(4~20mA) PA: SW One output (PNP open collector) +Current output(4~20mA)	Fitting block spec. W1: 1.5 inches W-Seal W2: 1.125 inches W-Seal

PG-20-

103

R-

Series name

Rated pressure

502R: -0.1~0.5MPa

103R: -0.1~1.0MPa

Pressure Reference/

Rated analog out put range

R: Gauge pressure (Compound)

-0.1MPa~Rated pressure

Output specification

B: SW Nothing
N2: SW Two outputs

(NPN open collector)
P2: SW Two outputs

(PNP open collector)
NV: SW One output

(NPN open collector)
+Voltage output(1~5V)
PV: SW One output

(PNP open collector)
+Voltage output(1~5V)
NA: SW One output

(NPN open collector)
+Current output(4~20mA)
PA: SW One output

(PNP open collector)
+Current output(4~20mA)

Fitting block spec.

W1: 1.5 inches

W-Seal

W2: 1.125 inches

W-Seal

List of Model Numbers

Model number	Fitting block spec	Switch output	Pressure Reference/Rated analog out put range	Analog output	CAD
PG-20-502R-BW1	1.5 inches W-Seal	None	Compound/ -0.1MPa~Rated pressure	None	3D CAD（Any Model）
PG-20-502R-BW2	1.125 inches W-Seal	None	Compound/ -0.1MPa~Rated pressure	None	3D CAD（Any Model）
PG-20-502R-N2W1	1.5 inches W-Seal	2 outputs NPN	Compound/ -0.1MPa~Rated pressure	None	3D CAD（Any Model）
PG-20-502R-N2W2	1.125 inches W-Seal	2 outputs NPN	Compound/ -0.1MPa~Rated pressure	None	3D CAD（Any Model）
PG-20-502R-P2W1	1.5 inches W-Seal	2 outputs PNP	Compound/ -0.1MPa~Rated pressure	None	3D CAD（Any Model）
PG-20-502R-P2W2	1.125 inches W-Seal	2 outputs PNP	Compound/ -0.1MPa~Rated pressure	None	3D CAD（Any Model）
PG-20-502R-NVW1	1.5 inches W-Seal	1 outputs NPN	Compound/ -0.1MPa~Rated pressure	Voltage output	3D CAD（Any Model）
PG-20-502R-NVW2	1.125 inches W-Seal	1 outputs NPN	Compound/ -0.1MPa~Rated pressure	Voltage output	3D CAD（Any Model）
PG-20-502G-NVW1	1.5 inches W-Seal	1 outputs NPN	Positive/ 0MPa~Rated pressure	Voltage output	3D CAD（Any Model）
PG-20-502G-NVW2	1.125 inches W-Seal	1 outputs NPN	Positive/ 0MPa~Rated pressure	Voltage output	3D CAD（Any Model）
PG-20-502R-PVW1	1.5 inches W-Seal	1 outputs PNP	Compound/ -0.1MPa~Rated pressure	Voltage output	3D CAD（Any Model）
PG-20-502R-PVW2	1.125 inches W-Seal	1 outputs PNP	Compound/ -0.1MPa~Rated pressure	Voltage output	3D CAD（Any Model）
PG-20-502G-PVW1	1.5 inches W-Seal	1 outputs PNP	Positive/ 0MPa~Rated pressure	Voltage output	3D CAD（Any Model）
PG-20-502G-PVW2	1.125 inches W-Seal	1 outputs PNP	Positive/ 0MPa~Rated pressure	Voltage output	3D CAD（Any Model）
PG-20-502R-NAW1	1.5 inches W-Seal	1 outputs NPN	Compound/ -0.1MPa~Rated pressure	Output current	3D CAD（Any Model）
PG-20-502R-NAW2	1.125 inches W-Seal	1 outputs NPN	Compound/ -0.1MPa~Rated pressure	Output current	3D CAD（Any Model）
PG-20-502G-NAW1	1.5 inches W-Seal	1 outputs NPN	Positive/ 0MPa~Rated pressure	Output current	3D CAD（Any Model）
PG-20-502G-NAW2	1.125 inches W-Seal	1 outputs NPN	Positive/ 0MPa~Rated pressure	Output current	3D CAD（Any Model）
PG-20-502R-PAW1	1.5 inches W-Seal	1 outputs PNP	Compound/ -0.1MPa~Rated pressure	Output current	3D CAD（Any Model）
PG-20-502R-PAW2	1.125 inches W-Seal	1 outputs PNP	Compound/ -0.1MPa~Rated pressure	Output current	3D CAD（Any Model）
PG-20-502G-PAW1	1.5 inches W-Seal	1 outputs PNP	Positive/ 0MPa~Rated pressure	Output current	3D CAD（Any Model）
PG-20-502G-PAW2	1.125 inches W-Seal	1 outputs PNP	Positive/ 0MPa~Rated pressure	Output current	3D CAD（Any Model）
PG-20-103R-BW1	1.5 inches W-Seal	None	Compound/ -0.1MPa~Rated pressure	None	3D CAD（Any Model）
PG-20-103R-BW2	1.125 inches W-Seal	None	Compound/ -0.1MPa~Rated pressure	None	3D CAD（Any Model）
PG-20-103R-N2W1	1.5 inches W-Seal	2 outputs NPN	Compound/ -0.1MPa~Rated pressure	None	3D CAD（Any Model）
PG-20-103R-N2W2	1.125 inches W-Seal	2 outputs NPN	Compound/ -0.1MPa~Rated pressure	None	3D CAD（Any Model）
PG-20-103R-P2W1	1.5 inches W-Seal	2 outputs PNP	Compound/ -0.1MPa~Rated pressure	None	3D CAD（Any Model）
PG-20-103R-P2W2	1.125 inches W-Seal	2 outputs PNP	Compound/ -0.1MPa~Rated pressure	None	3D CAD（Any Model）
PG-20-103R-NVW1	1.5 inches W-Seal	1 outputs NPN	Compound/ -0.1MPa~Rated pressure	Voltage output	3D CAD（Any Model）
PG-20-103R-NVW2	1.125 inches W-Seal	1 outputs NPN	Compound/ -0.1MPa~Rated pressure	Voltage output	3D CAD（Any Model）

✽ If you want a model of positive pressure gauge (0~Rated pressure type), please contact us separately.

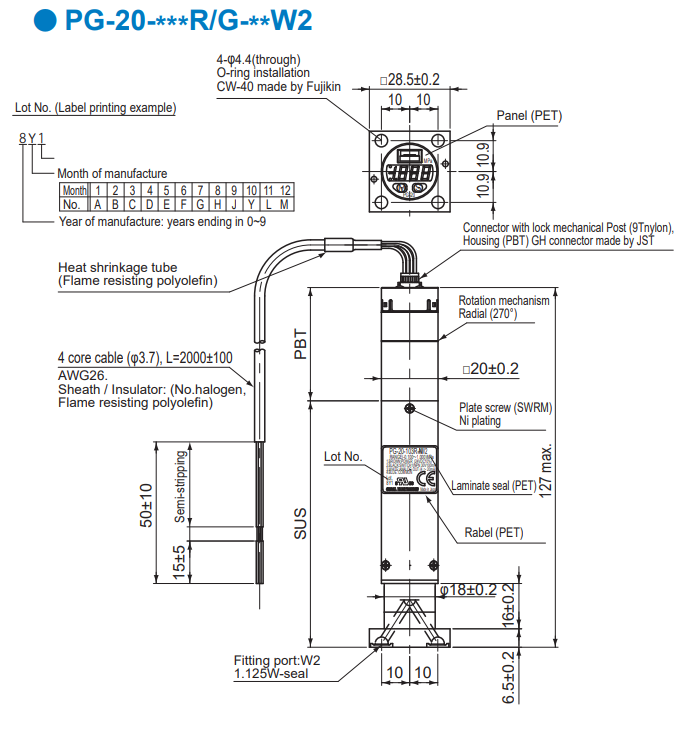

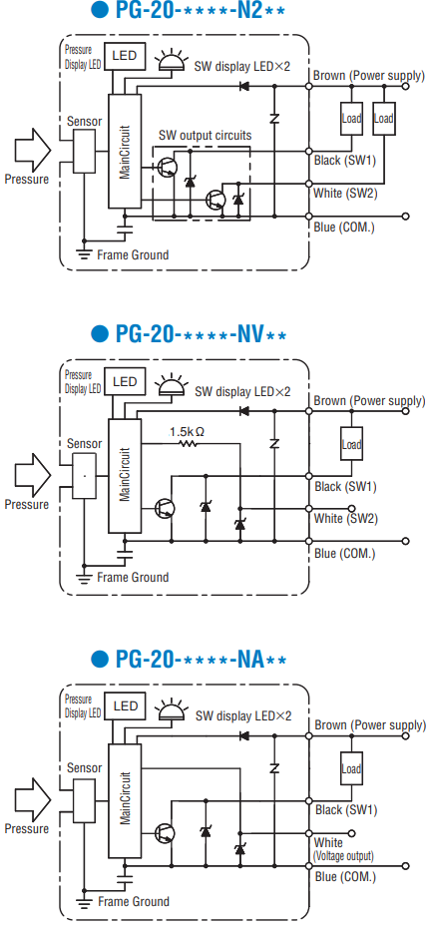

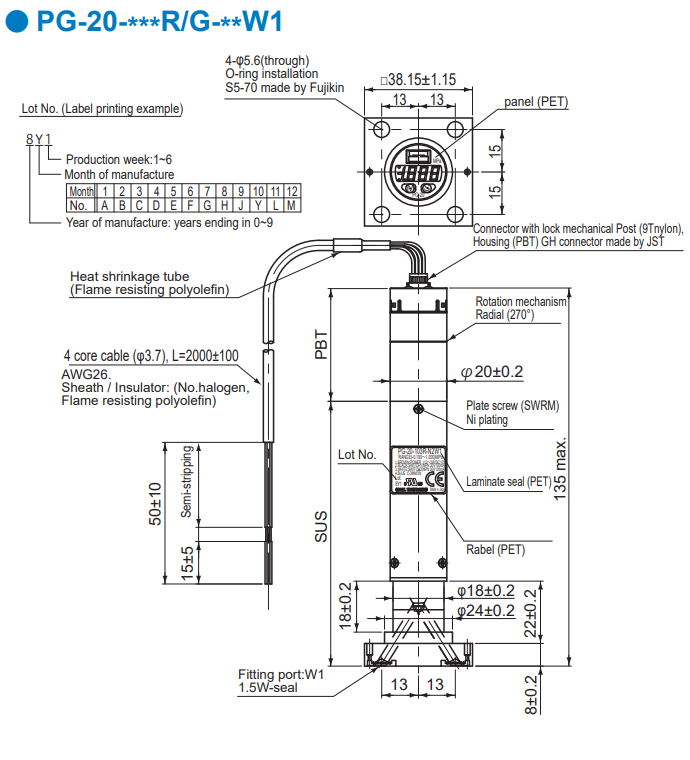

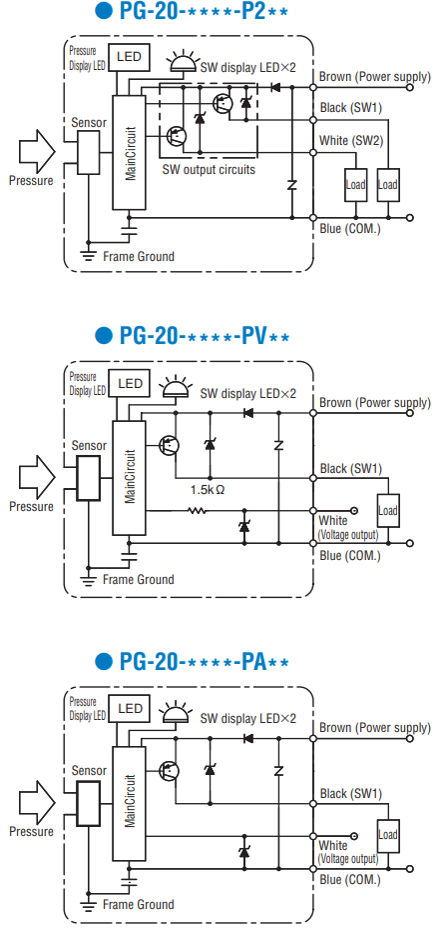

Internal Electrical Schematics

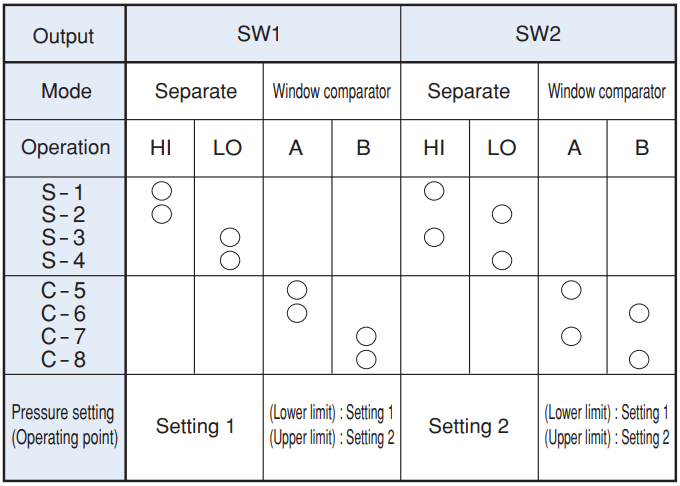

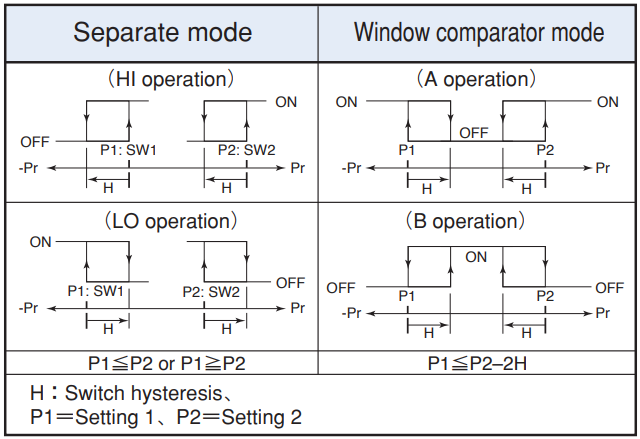

Switch Output mode

Note 1. In the Separate Mode, setting 1 corresponds to SW1, and Setting 2 corresponds to SW2.
Note 2. In the Window Comparator Mode, the minimum value for SW1 and SW2 corresponds to Setting 1 and the maximum value corresponds to Setting 2.
Note 3. It becomes only “SW1” for one switch output specification. In that cace, it displays it in the switch operation mode in order of “S-1”“S-3”“C-5”“C-7”.
