Potentiometer CRV16
- ●To buy this product, please go to the following Online Web stores.
Ideal for remote control (joystick)
- Long life
- Cost effective
- High linearity through precision wire winding
- RoHS compliant
Electrical characteristics
| Nominal resistance value | 1 kΩ, 2 kΩ, 5 kΩ, 10 kΩ |
|---|---|
| Resistance tolerance | ± 20% |
| Resolution | Essentially infinite |
| Independent linearity | ± 1% |
| Effective electrical angle | 220° ± 10° |
| Power rating (at 40 °C) | 0.25W |
| Dielectric strength | 500, 1min |
| Insulation resistance | 50 MΩ minimum(at DC 500 V) |
| Temp. coefficient of resistance | ± 400 ppm/°C |
| Output smoothness | 0.5 % maximum |
Mechanical characteristics
| Mechanical angle | 260° ± 5° |
|---|---|
| Rotational torque | 3.92 {40}mN·m {gf·cm} |
| Stop strength | 0.196 {2} N·m {kgf·cm} minimum |
| Rotational life (cycles) | 500 thousand cycles |
Environmental characteristics
| Operating temp. range | −10 ~ 80°C |
|---|---|
| Net weight | Approx.5ｇ |
| Protection grade | IP20 |

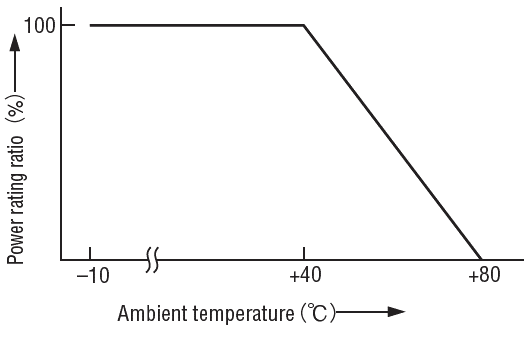

RATED POWER DERATING CURVE
|
|

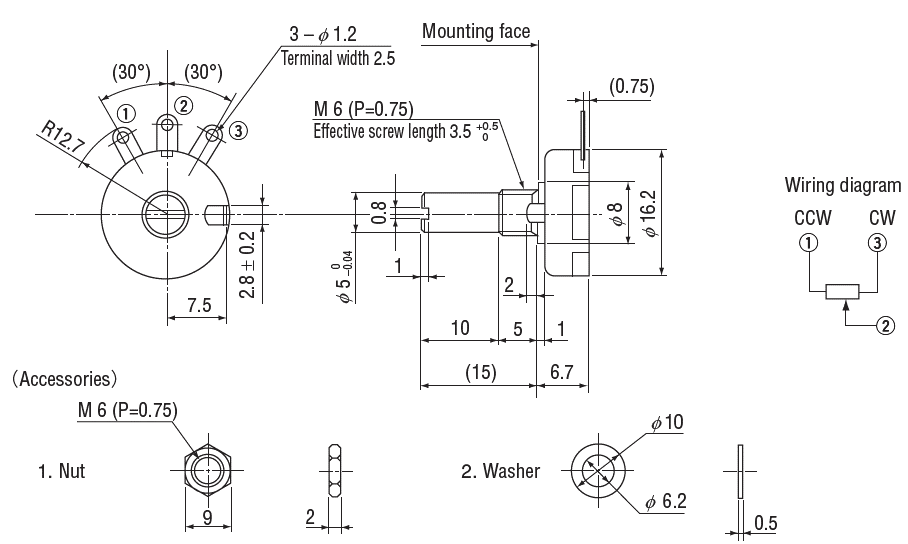

OUTLINE DIMENSIONS
Unless otherwise specified tolerance : ± 0.5 (Unit : mm)
Documents
- ●The above contents and descriptions are subject to change without notice.
