Potentiometer MC1003
- ●To buy this product, please go to the following Online Web stores.

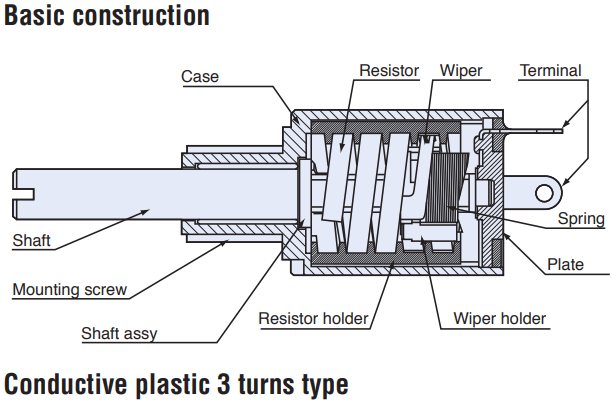

Ideal for small servo mechanism
- Compact size
- Fine setting is possible
- Long life
- High following characteristics
- High resolution (Essentially infinite)
- RoHS compliant
PART NUMBER DESIGNATION
| MC1003- | 000- | 502 |
|---|---|---|
|
Series name |
|
Nominal resistance value(Ω) 502:5 k |
LIST OF PART NUMBERS
| Part number | Nominal resistance value |
|---|---|
| MC1003-000-502 | 5 kΩ |
| MC1003-000-103 | 10 kΩ |
| ➡MC1003-000-203 | 20 kΩ |
➡印の型式は受注生産となります。
Electrical characteristics
| Nominal resistance value | 5 kΩ, 10 kΩ, 20 kΩ |
|---|---|
| Resistance torelance | ± 20 % |
| Resolution | Essentially infinite |
| Power rating | 0.19 W |
| Independent linearity | ± 1 % |
| Effective electrical angle | 1080° |
| Temp. coefficient of resistance | ± 400 ppm/°C maximum |
| Insulation resistance | 1000 MΩ (at DC250 V) minimum |
| Dielectric strength | 500 V rms (1 min) |
Mechanical characteristics
| Mechanical angle | 1080° ± 10° |
|---|---|
| Stop strength | 4.41 N·cm {0.45 kgf·cm} maximum |
| Operating torque | 0.294 N·cm {30 gf·cm} maximum |
| Rotational life | 1 million cycles |
| Tighten screw torque | 49 N·cm {5 kgf·cm} maximum |
Environmental characteristics
| Operating temp. range | -40~85 °C |
|---|---|
| Net weight | Approx. 2.5 g |
| Protection grade | IP40 |
RATED POWER DERATING CURVE
|
|
OUTLINE DIMENSIONS
(Unit: mm)
Documents
- ●The above contents and descriptions are subject to change without notice.
