Potentiometer JCL / JCL B
- ●To buy this product, please go to the following Online Web stores.
Ideal for injection molding machines
- 10 ~ 500 mm
- High resolution (Essentially infinite)
- Long life
- Mounting plate seating position can be set to any positions(JCL B)
- RoHS compliant
STANDARD SPECIFICATIONS
| Item | 10 | 20 | 50 | 100B | 200B | 300B | 500B |
|---|---|---|---|---|---|---|---|
| Resistance torelance | ± 20% | ||||||
| Resolution | Essentially infinite | ||||||
| Independent linearity | ± 0.5% | ||||||
| Effective electrical travel | 10+10 mm |
20+10 mm |
50+10 mm |
100+20 mm |
200+20 mm |
300+30 mm |
500+30 mm |
| Mechanical travel | Minimum effective electrical travel | ||||||
| Power rating (at 40 °C) | 0.13W | 0.25W | 0.6W | 1.5W | 3W | 4W | 7W |
| Dielectric strength | 1000 Vrms 1 min | ||||||
| Insulation resistance | 1000 MΩ minimum (at DC500 V) |
||||||
| Operating force | 147 {15} mN {gf} maximum |
1960 {200} mN{gf} maximum |
|||||
| Stop strength | 0.196 {2} N·m {kgf·cm} minimum |
0.981 {10} N·m {kgf·cm} minimum |
|||||
| Maximum traveling speed | 500 mm/s | ||||||
| Temp. coefficient of resistance | ± 400 ppm/°C | ||||||
| Operating temp. range | −40 ~ 85°C | ||||||
| Life | 20 million cycle | 10 million cycle | 6 million cycle | 4 million cycle | |||
| Net weight | Approx. 23g | Approx. 27g | Approx. 38g | Approx. 182g | Approx. 272g | Approx. 373g | Approx. 555g |
| Protection grade | IP40 | ||||||
PART NUMBER DESIGNATION
| JCL100B | 1K | 0.5% |
|---|---|---|
|
Series name JCL10, JCL20, JCL50, JCL100B |
Nominal resistance value(Ω) 1 k, 2 k, 5 k, 10 k |
Independent linearity 0.5%:±0.5 % |
LIST OF PART NUMBERS
| Part number | Effective electrical travel | Nominal resistance value |
|---|---|---|
| JCL10 1 k 0.5 % | 10 mm | 1 kΩ |
| JCL10 2 k 0.5 % | 2 kΩ | |
| JCL10 5 k 0.5 % | 5 kΩ | |
| JCL20 1 k 0.5 % | 20 mm | 1 kΩ |
| JCL20 2 k 0.5 % | 2 kΩ | |
| JCL20 5 k 0.5 % | 5 kΩ | |
| JCL20 10 k 0.5 % | 10 kΩ | |
| JCL50 1 k 0.5 % | 50 mm | 1 kΩ |
| JCL50 2 k 0.5 % | 2 kΩ | |
| JCL50 5 k 0.5 % | 5 kΩ | |
| JCL50 10 k 0.5 % | 10 kΩ | |
| JCL100B 1 k 0.5 % | 100 mm | 1 kΩ |
| JCL100B 2 k 0.5 % | 2 kΩ | |
| JCL100B 5 k 0.5 % | 5 kΩ | |
| JCL100B 10 k 0.5 % | 10 kΩ | |
| JCL200B 1 k 0.5 % | 200 mm | 1 kΩ |
| JCL200B 2 k 0.5 % | 2 kΩ | |
| JCL200B 5 k 0.5 % | 5 kΩ | |
| JCL200B 10 k 0.5 % | 10 kΩ | |
| JCL300B 2 k 0.5 % | 300 mm | 2 kΩ |
| JCL300B 5 k 0.5 % | 5 kΩ | |
| JCL300B 10 k 0.5 % | 10 kΩ | |
| JCL500B 5 k 0.5 % | 500 mm | 5 kΩ |
| JCL500B 10 k 0.5 % | 10 kΩ |

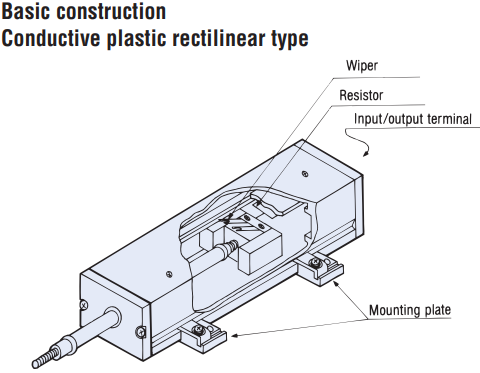

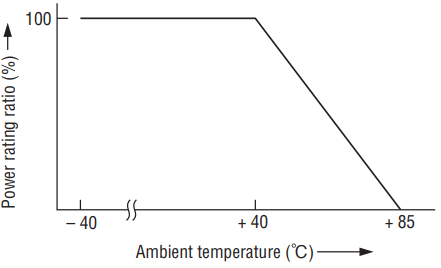

RATED POWER DERATING CURVE
|
|

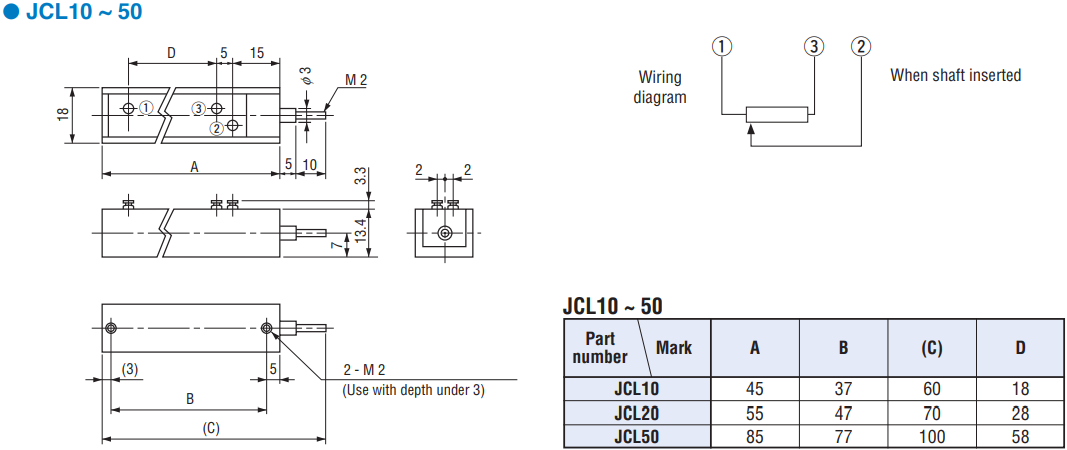

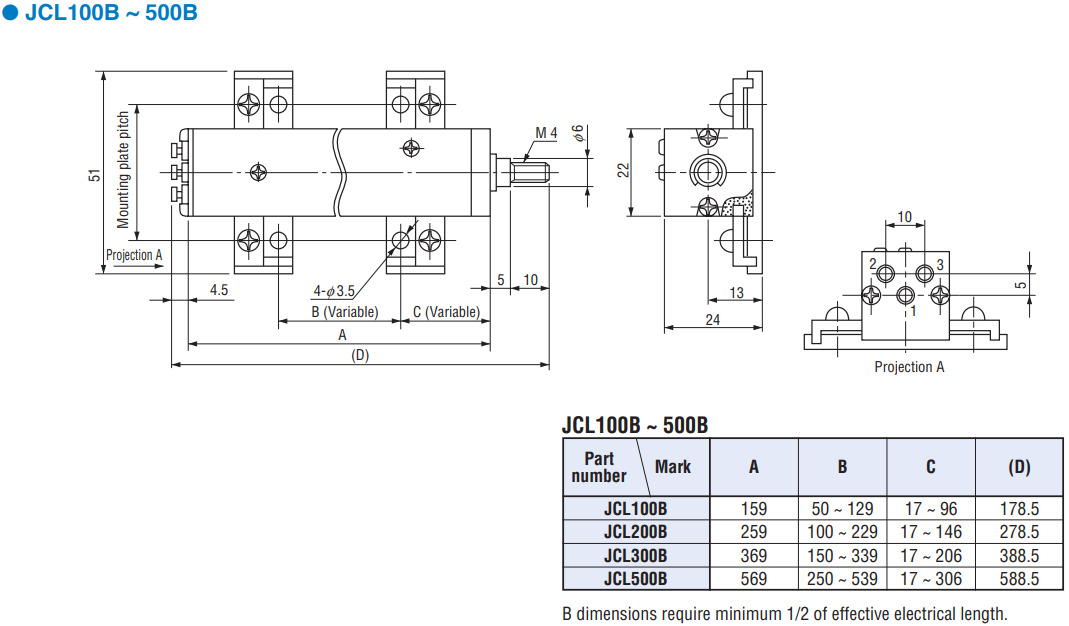

OUTLINE DIMENSIONS
