Potentiometer M22L10
- ●To buy this product, please go to the following Online Web stores.

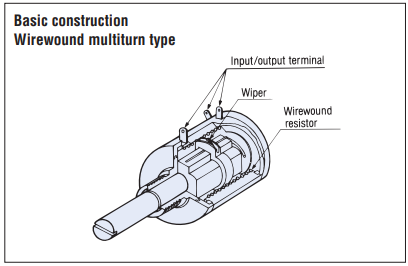

5 million long-life potentiometers
- Fine setting is possible
- Long life
- RoHS compliant
STANDARD SPECIFICATIONS
| Resistance torelance | ± 5% |
|---|---|
| Independent linearity | ± 0.2% |
| End resistance, maximum | 5 Ω |
| Effective electrical angle | 3600° |
| Mechanical angle | 3600° +10°/0 |
| Power rating | 2W |
| Dielectric strength | 1000Vrms 1 min |
| Insulation resistance | 1000 (at DC 500 V) MΩ minimum |
| Rotational torque | 9.81 {100} mN·m {gf·cm} maximum |
| Strength of tighten screw | 0.98 {10} N·m {kgf·cm} maximum |
| Stop strength N | 0.196 {2} N·m {kgf·cm} maximum |
| Peak noise | 50 (at 4 min-1) Ω maximum |
| Temp. coefficient of resistance | ± 50ppm/°C |
| Operating temp. range | -40 ~ 85°C |
| Rotational life | 5 million turns (At the reciprocation of ten rotations) |
| Net weight | Approx. 19 |
| Net weight | IP40g |
NOMINAL RESISTANCE • RESOLUTION • RATED VOLTAGE • RATED CURRENT
| Nominal resistance value(Ω) | Resolution（%） | Rated voltage（V） | Rated current（mA） |
|---|---|---|---|
| 1 k | 0.025 | 44.7 | 44.7 |
| 2 k | 0.020 | 63.2 | 31.6 |
| 5 k | 0.014 | 100.0 | 20.0 |
| 10k | 0.018 | 141.1 | 14.1 |
| 20 k | 0.014 | 200.0 | 10.0 |
PART NUMBER DESIGNATION
| M 2 2 L 1 0- | 0 0 0 - 1 0 2 |
|---|---|
|
Series name |
Nominal resistance value（Ω） 000-102： 1 k |
LIST OF PART NUMBERS
| Part number | Nominal resistance value(Ω) |
|---|---|
| M22L10-000-102 | 1 k |
| M22L10-000-202 | 2 k |
| M22L10-000-502 | 5 k |
| M22L10-100-103 | 10 k |
| M22L10-100-203 | 20 k |
RATED POWER DERATING CURVE
|
|
OUTLINE DIMENSIONS
Documents
