Trimmer potentiometer TM-7

●To buy this product, please go to the following Online Web stores.
 To the Trimmer potentiometer“TM-7 series” page on the DigiKey online shop
To the Trimmer potentiometer“TM-7 series” page on the Chip One Stop online shop
To the Trimmer potentiometer“TM-7 series” page on the Mouser online shop

3 turns Cermet Trimmers



FeaturesFeatures

Electrical Characteristics

Power ratings 0.5 W (70 °C) 0 W (120 °C)
Nominal resistance range 50 Ω ~ 2 MΩ
Resistance tolerance ± 10 %
Resistance law Linear law(B)
Maximum input voltage DC300 V or power rating, whichever is smaller
Maximum wiper current 100 mA or power rating, whichever is smaller
Effective electrical turn 2.5 turns
End resistance 1 % or 2 Ω , whichever is greater
C.R.V. 1 % or 3 Ω , whichever is greater
Operating temp. range −55 ~ 120 °C
Temp. coefficient ± 100 10-6/°C maximum
Insulation resistance 1000 MΩ minimum (DC500 V)
Dielectric strength AC900 V, 60 s
Net weight Approx. 0.50 g (TM-7EP, EW)
Approx. 0.69 g (TM-7ES, EX)

Mechanical Characteristics

Mechanical turn 3 turns
Operating torque 20 mN·m {204 gf·cm} maximum
Mechanical stop Clutch action
Rotational life 200 cycles ΔR/R ≦ ± (2 Ω +3 %)
Terminal strength 10 N {1.02 kgf} minimum(Tensile strength)
Thrust to shaft 10 N {1.02 kgf} minimum
Solderability 245 ± 3 °C, 2 ~ 3 s

{ }:Reference only

Environmental Characteristics

Test itemTest conditionsSpecifications
Shock 981 m/s2, 6 ms 6 directions for 3 times each [ΔR/R ≦ 1 %] [S.S. ≦ 1 %]
Thermal shock −65 ~ 125 °C(0.5 h), 5 cycles [ΔR/R ≦ 1 %] [S.S. ≦ 1 %]
Humidity −10 ~ 65 °C ( Relative humidity 80 ~ 98 %),10 cycles, 240 h [ΔR/R ≦ 2 %]
Vibration Amplitude 1.52 mm or Acceleration 196 m/s2,
10 ~ 2000 Hz, 3 directions, 12 times each
[ΔR/R ≦ 1 %] [S.S. ≦ 1 %]
Load life 70 °C, 0.5 W, 1000 h [ΔR/R ≦ 3 %] [S.S. ≦ 1 %]
Low temp. operation −55 °C, 2 h [ΔR/R ≦ 2 %] [S.S. ≦ 2 %]
High temp. exposure 120 °C, 250 h [ΔR/R ≦ 3 %] [S.S. ≦ 2 %]
Immersion seal 85 °C, 60 s No leaks (No continuous bubbles)
Soldering heat Flow soldering :260 ± 3 °C, 5 ~ 6 s, two times maximum
Manual soldering : 380 ± 10 °C, 3 ~ 4 s
[ΔR/R ≦ 1 %]
Δ R/R:Change in total resistance  S.S. :Setting stability

Maximum Input Ratings

Nominal resistance values (Ω)Resistance codeMaximum input voltage(V)Maximum wiper current(mA)
50 500 5.00 100
100 101 7.07 70.7
200 201 10.0 50.0
500 501 15.8 31.6
1k 102 22.4 22.4
2k 202 31.6 15.8
5k 502 50.0 10.0
10k 103 70.7 7.07
20k 203 100 5.00
50k 503 158 3.16
100k 104 224 2.24
200k 204 300 1.50
500k 504 300 0.60
1M 105 300 0.30
2M 205 300 0.15

Part Number Designation

TM-7EP50 kΩ (503)

Series

Terminal pin

E:
Sn (Lead-free)

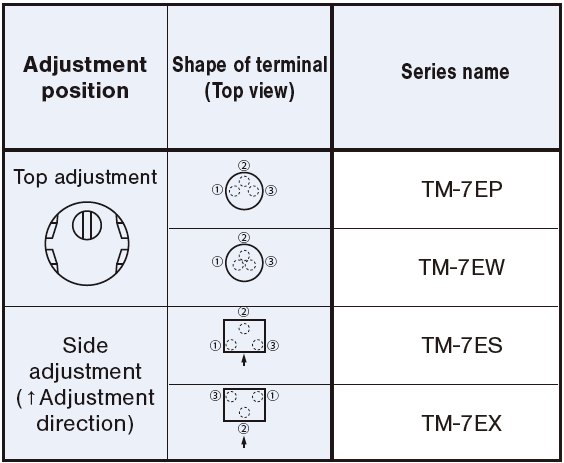

Terminal shape (Adjust Pos.)※1

P:
W: 
S:
X:
Through hole (Top adjustment)
Through hole (Top adjustment)
Through hole (Side adjustment)
Through hole (Side adjustment)

Resistance value (Resistance code)

  • ※1)
    For the details on each product shape, refer to the following table and Outline Dimensions.
Nominal resistance values 50 Ω, 100 Ω, 200 Ω, 500 Ω, 1 kΩ, 2 kΩ, 5 kΩ, 10 kΩ, 20 kΩ, 50 kΩ, 100 kΩ, 200 kΩ, 500 kΩ, 1 MΩ, 2 MΩ
When ordering, please be sure to include the above nominal resistance value at the end of the part number in the table list below. For resistance code, please refer to the Maximum Input Ratings table in the previous section.

List of Part Numbers








CAD and chemSHERPA-AI (a material data sheet ideal for REACH surveys, etc. / version: 2.09.00) can be downloaded from the button for each P/N in the table below. *Need to log in to download.
Part No.Product shapeForm of packagingPieces in packageMaterial dataCAD
TM-7EP Top adjustment Through hole 50 pcs./pack
TM-7EW Top adjustment Through hole 50 pcs./pack
TM-7ES Side adjustment Through hole 50 pcs./pack
TM-7EX Side adjustment Through hole 50 pcs./pack

Outline Dimensions

Unless otherwise specified, tolerance: ± 0.3 (Unit: mm)

Environmental Data
