Jumper switch CL-SA
- ●To buy this product, please go to the following Online Web stores.
Designed to Replace Jumper Pin
FeaturesFeatures
- Correspond to rating current 500mA
- Possible to continue mounting with 2.54mm pitch
Standard Specifications
| Operating temp. range | − 40 ~ 85 °C |
|---|---|
| Storage temp. range | − 40 ~ 85 °C |
| Sealing | Non- Washable |
Electrical Characteristics
| Contact rating | Non-switching：DC50 V 500mA Switching：DC12 V 500mA Minimum：DC20 mV 1 μ A |
|---|---|
| Initial contact resistance | 22 MΩ maximum |
| Insulation resistance | 10,000 MΩ minimum (DC100 V) |
| Dielectric strength | AC500 V 60 s |
Mechanical Characteristics
| Stroke | 1.6 mm |
|---|---|
| Operation force | 2.5 ± 1.5 N {0.26 ± 0.15kgf} |
| Load life | Rated load 2,000 cycles No load 10,000 cycles |
| Soldering heat | Flow：260 °C ± 3 5 ~ 6 s 2 times max. ※Except a right angle(CL-SA-12C4-＊2) Manual soldering：：380 ± 10 °C 3 ~ 4 s |
Part Number Designation
| CL-SA- | 1 | 2 | C - | 0 | 2 |
|---|---|---|---|---|---|
|
Series name |
No. of bits 1：1 pole |
No. of positions 2：2 positions |
Shape of terminal C:PC terminal C4:PC terminal-R/A(Right angle) |
Knob length・Color 0：Short・White 2：Short・Red |
Contact material 2：Gold |
List of Part Numbers
| Part number | Shape of terminal | Contact material | Knob length・Color | Pieces in package | CAD |
|---|---|---|---|---|---|
| CL-SA-12C-02 | PC terminal | Gold | Short・White | 50pcs./pack | |
| CL-SA-12C-22 | PC terminal | Gold | Short・Red | 50pcs./pack | |
| CL-SA-12C4-02 | PC terminal-R/A | Gold | Short・White | 50pcs./pack | |
| CL-SA-12C4-22 | PC terminal-R/A | Gold | Short・Red | 50pcs./pack |

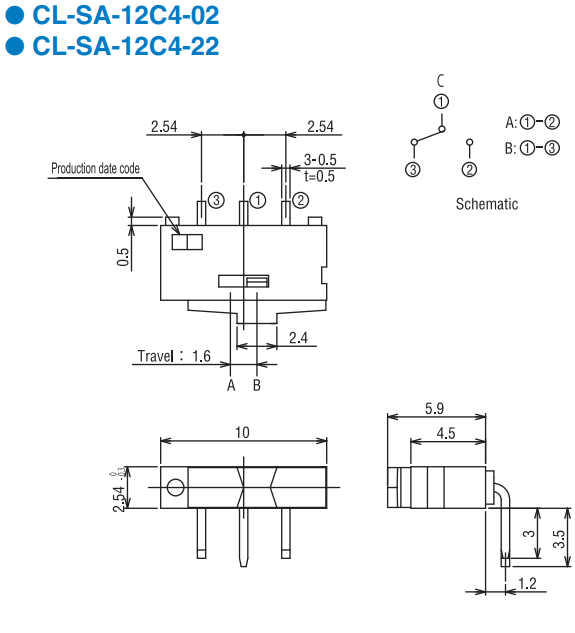

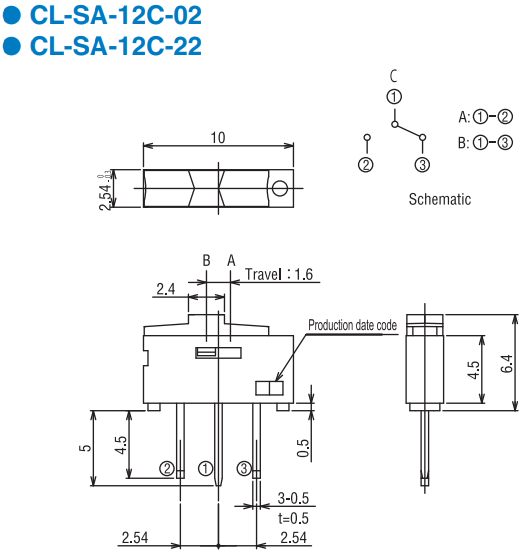

Outline Dimensions
Unless otherwise specified, tolerance: ± 0.3 (Unit: mm)

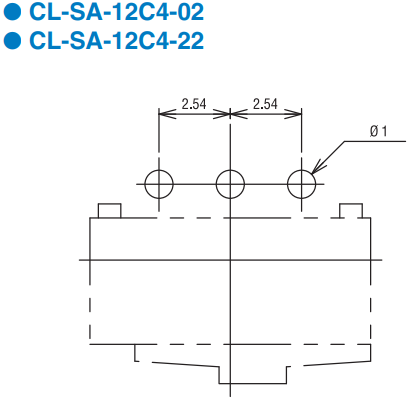

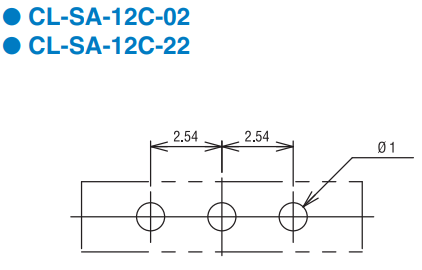

Size of P.C.B. Processing
(Unit : mm)
Packaging specifications
〈Bulk pack specifications〉
● The smallest unit of bulk pack in plastic bag is 10 pcs. per pack.
Orders will be accepted for unit of minimum 10 pcs., i.e., 10, 20, 30 pcs., etc.
● Boxing of bulk in a plastic bag is performed with 50 pcs. (standard 100 pcs.) per box.
Documents
Environmental Data
