Toggle switch 8C

●To buy this product, please go to the following Online Web stores.
To the Toggle switch“8C series”page on the DigiKey online shop
To the Toggle switch“8C series”page on the Chip One Stop online shop
To the Toggle switch“8C series”page on the Mouser online shop

Flatted Toggle Switch


FeaturesFeatures
  • The 8C series has a fl atted actuator and is anti-rotation.. The dress nut is standard with the fl atted toggle.

  • Suitable for applications where panel space is limited and a larger toggle is needed.

  • Terminal style : Solder, PC Straight

  • Epoxy resin case : UL94V-0 self-extinguishing epoxy.

  • Insulation between terminal and ground : 4 mm minimum. Prevention of flux entry The epoxy resin seal on bottom of the switch helps prevent the entry of solder and flux.

  • Insulation barrier : Insulation barrier design between poles helps prevent short-circuiting between poles ensuring high reliability.

  • UL Recognized product File No.E43275 CSA Certified product File No.LR38341

Part Number Designation

8C1011 - Z

Series

Actuator shape

C: Flatted toggle

No. of poles

1: 1 pole

2: 2 poles

3: 3 poles

Switching function

01: ON-ON

02: ON-OFF-ON

Terminal style

1: Solder

2: PC straight

Contact material / Plating

Blank:

Bs+Ag or Cu+Ag / Silver plated (Ag)

/ Silver plated (Ag)

Bs=Brass, Ag=Silver, Cu=Copper

◆Terminals

List of Part Numbers







Part No.No. of polesTerminalsSW functionsCAD
Part No.:8C1011-Z 1 pole Solder ON-ON
Part No.:8C1021-Z 1 pole Solder ON-OFF-ON
Part No.:8C1012-Z 1 pole PC straight ON-ON
Part No.:8C2011-Z 2 poles Solder ON-ON
Part No.:8C2021-Z 2 poles Solder ON-OFF-ON
Part No.:8C3011-Z 3 poles Solder ON-ON
☆: Semi-standard products /
★: Made to order products

Common Specifications

Rating Max. 125 VAC 6 A / 250 VAC 3 A / 30 VDC 4 A
Initial contact resistance 10 mΩ Max. (2~4 VDC 1 A)
Initial dielectric strength 1500 VAC 1 minute
Initial insulation resistance 1000 MΩ Min. (500 VDC)
Electrical life Alternate type: 50,000 cycles
Momentary type: 25,000 cycles
Operating temperature range ー30 ~ +85 ℃
Storage temperature range ー40 ~ +85 ℃

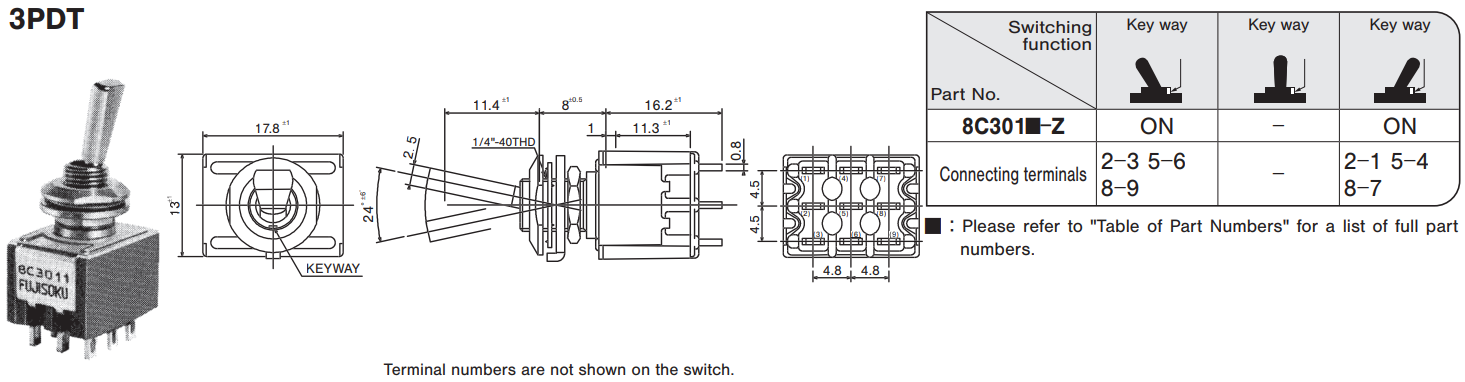

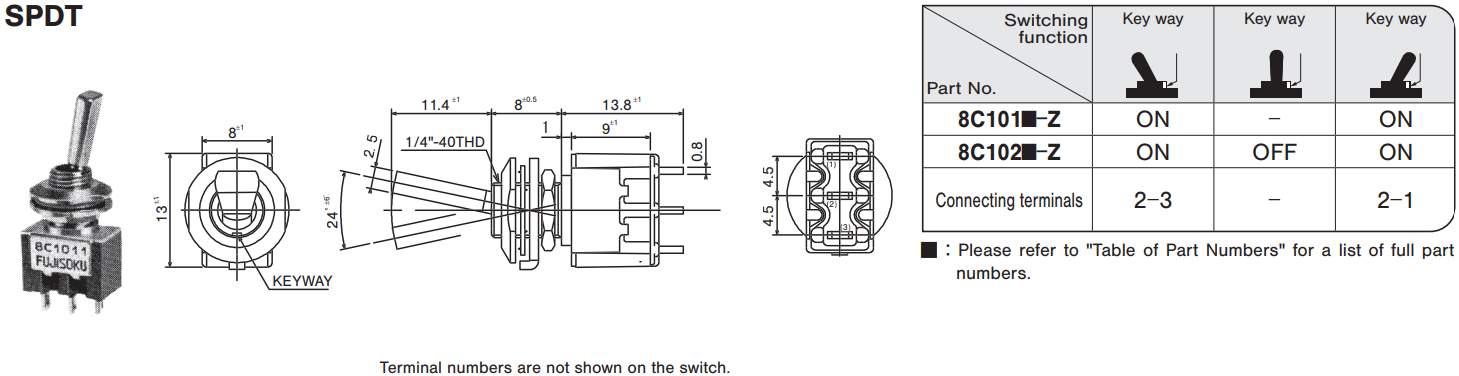

Outline Dimensions

(Unit:mm)

Precautions

Soldering Specifications

  • Manual soldering/Device :Solder iron ①420℃ Max. 3 sec. Max.
  • Auto soldering/275℃ Max. 6 sec. Max.
  • The above-stated soldering conditions shall apply only to switches with straight terminals. Auto soldering is not possible with right-angle terminals. Switches with right-angle terminals should be soldered manually according to the conditions specifi ed in (1) above.
  • When soldering two or more terminals to the common land, use the solder resist to isolate the terminals.。

Flux Cleaning

  • Solvent : Fluorine or Alcohol type.
  • 8A/B/C/D/E/F/J series are not washable. To wash the PC board, clean the soldering surface of the PC board with a brush so that the switch is not exposed to the cleaning solution.
  • Cleaning after soldering should be done after the terminal temperature falls to 90℃ or below, or after leaving the switch for fi ve minutes or longer at room temperature.

Mounting

  • Do not bend the terminals before mounting the switch on the PC board.
  • After mounting the switch, do not place the device in such a way that the device weight will be applied on to the actuator of the switch.
  • For switches with straight terminals, solder the switch on the PC board after fi xing the switch on the panel with a nut.

Panel Cut-Out Dimensions

  • With Locking Ring:Panel thickness 2.4 mm Max.
  • Without Locking Ring:Panel thickness 3.4 mm Max.

PC Hole Layouts

Standard Accessories

  • Numbers in the above chart show the quantities of each accessories enclosed with the switch.

8 Series Toggles Selection Table

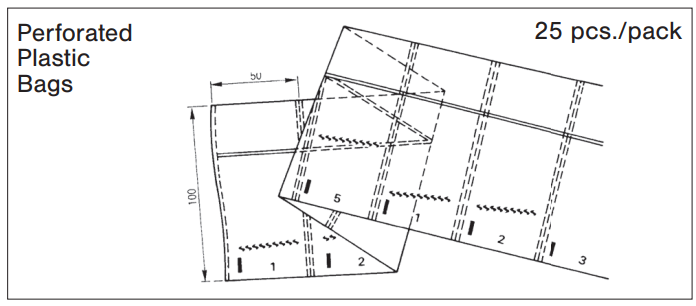

Packaging Specification

(Unit:mm)

Environmental Data

●The above contents and descriptions are subject to change without notice.
