Pushbutton switch CF-PD
- ●To buy this product, please contact Sales Reps, Distributors.
Nut type Pushbutton Switches
- Solidly design
We added an assembly nut on LTM3-02.
It improves the strength of the panel. - Due to new design,
it improves the strength of push button product. - Connector-wiring
be able to one-touch fitting on the terminal parts,
without using PCB. - A light operating touch
We adopted dome shape contact.
It provides a sharp click feeling.

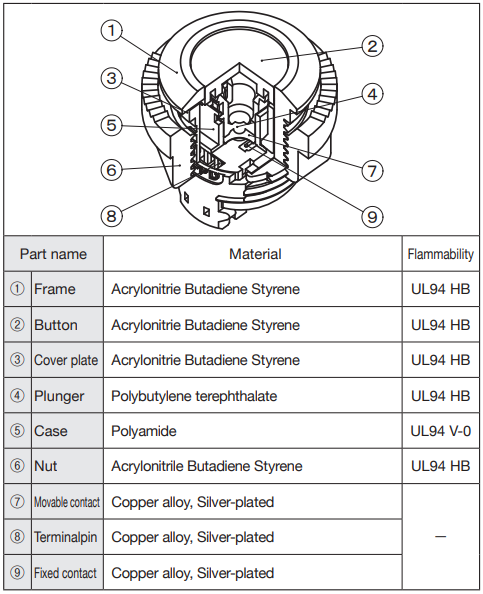

◆Internal Structure
Specification
| Rating | 1VA Max.（DC48V 50mA Max.）(Resistive load) |
|---|---|
| Dielectric strength | 250VAC 1minute |
| Initial contact resistance | 100mΩ Max. (200μVAC 1.5mA) |
| Initial insulation resistance | 100MΩ Min. (100VDC) |
| Electrical life | 300,000 operations |
| Operating force | 0.98～1.76N |
| Operating temp. range | -25～+70℃ |
Part number designation
| CF-PD - | 1 | C | N - | A | G | 1 | □ |
|---|---|---|---|---|---|---|---|
|
Series name |
No.of pole(s) 1: 1 bit |
Switching function C: OFF － （ON） |
Terminal style N:Connector |
Operating function A: Standard |
Button color G: Gray |
Contact material 1: Silver plated |
Packaging specifications blank: Plastic bag |
List of part numbers
| part number | No.of pole | Switching function | Terminal style | Packaging specifications | Contact material | CAD |
|---|---|---|---|---|---|---|
| CF-PD-1CN-AG1 | 1 bit | OFF － （ON） | Connector | Plastic bag | Silver plated |

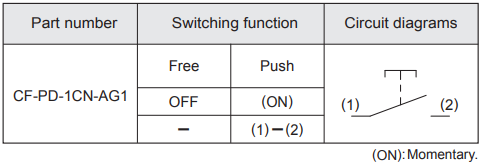

Switching Function

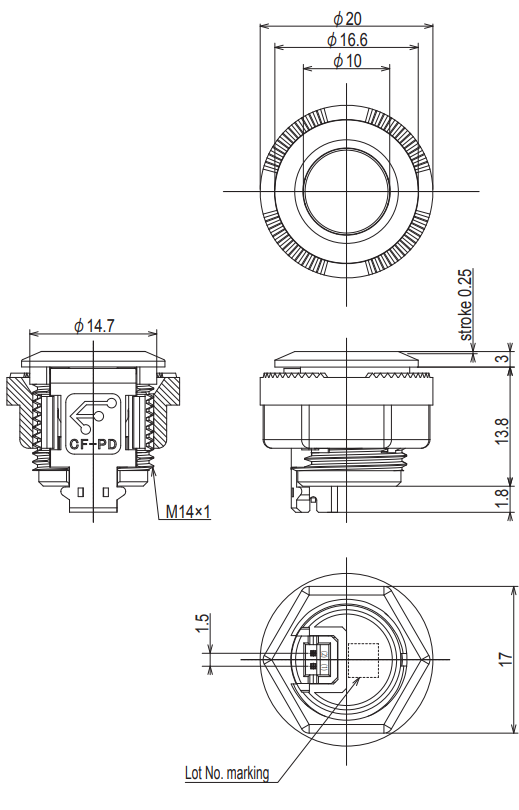

Outline Dimensions

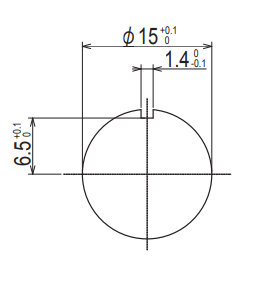

Panel Cut-out Dimensions
Panel tickness: 1~3mm
Precautions
※Nut tighten torque : under 0.29（N・m）
※Nut is an accessory.
Applicable Connector
ZHR-2（Housing）by J.S.T. MFG CO.,LTD.
