Rotary coded switch SC-1000/2000

  • SC-1000/2000
    SC-1000/2000
  • SC-1000/2000
    SC-1000/2000

Contact Us

●To buy this product, please go to the following Online Web stores.
To the Rotary coded switch“SC-1000/2000 series”page on the DigiKey online shop
To the Rotary coded switch“SC-1000/2000 series”page on the RS online shop
To the Rotary coded switch“SC-1000/2000 series”page on the Chip One Stop online shop
To the Rotary coded switch“SC-1000/2000 series”page on the Mouser online shop

Low Profile of 3.9 mm, 10 mm Square Size



FeaturesFeatures
  • Fine click with metallic spring
  • Low profile makes perfect for high density board mounting
  • Gold plated contact provides excellent reliability
  • Cross and minus slot are available
  • Terminal pin arrangement 4-1
  •  Resin material is UL Recognized 94V-0
  • In this series, material data sheets ideal for REACH-SVHC
     surveys etc. can be downloaded in chemSHERPA-AI format.
  • Download chemSHERPA-AI from the list of P/N below

Standard Specifications

Circuit type BCD (Real code, complementary code)
BCH (Real code, complementary code)
Operating temperature range -40 ~ 85 °C
Storage temperature range -40 ~ 85 °C
Sealing Washable
Net weight Without knob Top setting type: 0.63 g
With knob Top setting type: 0.73 g
Without knob Side setting type: 0.76 g
With knob Side setting type: 0.86 g

Electrical Characteristics

Contact rating Non-switching: 100 mA 50 VDC
Switching: 100 mA 5 VDC
Minimum: 1 μA 20 mVDC
Contact resistance 100 mΩ maximum
Insulation resistance 1000 MΩ (100 VDC) minimum
Dielectric strength 250 VAC, 60 s

Mechanical Characteristics

No. of positions 16 (SC-1000), 10 (SC-2000)
Adjustment torque 4 ~ 20 mN·m {41 ~ 204 gf·cm}
Stepping angle 22.5° (SC-1000), 36° (SC-2000)
Terminal strength (Through hole pin only) 10 N {1.02 kgf} minimum
Stop strength (With knob only) 10 N {1.02 kgf}, 10 s
Solderability 245 ± 3 °C, 2 ~ 3 s
Soldering heat
Gull wing:
  • Reflow: Peak temperature 255 °C (Please refer to the profile below.)
  • Manual soldering: 350 ± 10 °C, 3 ~ 4 s
Through hole pin:
  • Flow: 260 ± 3 °C as the temperature in a pot of molten solder, immer sion from head of terminal to backside of board 5 ~ 6 s, two times maximum
  • Manual soldering: 380 ± 10 °C, 3 ~ 4 s
Shear (Gull wing only) 5 N {0.51 kgf}, 10 s
Substrate bending (Gull wing only) Width 90 mm, bend 3 mm, 5 s, 1 time
Pull-off strength (Gull wing only) 5 N {0.51 kgf}, 10 s

Environmental Characteristics

Vibration Amplitude 1.5 mm or Acceleration 98 m/s2,
10-500-10 Hz, 3 directions for 2 h each
Shock 490 m/s2, 11 ms 6 directions for 3 times each
Humidity Resistance load 50 VDC 100 mA 40 °C, Relative humidity 90 ~ 95 %, 240 h
Load life 20000 steps
High temperature exposure 85 °C, 96 h
Low temperature exposure -40°C, 96 h
Thermal shock -40 (0.5 h) ~ 85 °C (0.5 h), 5 cycles
Solvent resistance (Dipping) Solvent: IPA (Isopropyl alchol), Temperature: 23 ± 5 °C, Time: 5 ± 0.5 minutes

Part Number Designation

SC -１０１０TW

Series name

No. of positions

1: 16 pos.
2: 10 pos.

Shape of rotor

0: Flush recessed for Flat slot (Without knob)
1: With knob (Extended shaft)

2: Flush recessed for Phillips slot (Without knob)

Code format

1: Real code (Rotor/Knob color: Yellow)

3: Complementary code (Rotor/Knob color: Red)

Setting position

0: Top setting
1: Side setting

Form of packaging

T: Taping (Gull wing type only)

W: Tray

Blank: Bulk in plastic bag

Shape of terminal

B: Gull wing (Top setting type only)

Blank: Through hole pin

List of Part Numbers








CAD and chemSHERPA-AI (a material data sheet ideal for REACH surveys, etc. / version: 2.10.00 or 2.09.00 available) can be downloaded from the button for each P/N in the table below. *Need to log in to download.
Part No.Circuit, CodeShape of
rotor		Setting
position		Shape of
terminal		Packaging
spec		Material dataCAD
SC-2010 10 pos. Real
(Rotor color: Yellow)		  Flush recessed
 for Flat slot		 Top Through
 hole		 Plastic bag,
 25 pcs/pack
SC-2010W 10 pos. Real
(Rotor color: Yellow)		  Flush recessed
 for Flat slot		 Top Through
 hole		 Tray,
 50 pcs/tray
SC-2110 10 pos. Real
(Knob color: Yellow)		 With knob Top Through
 hole		 Plastic bag,
 25 pcs/pack
SC-2110W 10 pos. Real
(Knob color: Yellow)		 With knob Top Through
 hole		 Tray,
 50 pcs/tray
SC-2210 10 pos. Real
(Rotor color: Yellow)		  Flush recessed
 for Phillips slot		 Top Through
 hole		 Plastic bag,
 25 pcs/pack
SC-2210W 10 pos. Real
(Rotor color: Yellow)		  Flush recessed
 for Phillips slot		 Top Through
 hole		 Tray,
 50 pcs/tray
SC-2011 10 pos. Real
(Rotor color: Yellow)		  Flush recessed
 for Flat slot		 Side Through
 hole		 Plastic bag,
 25 pcs/pack
SC-2011W 10 pos. Real
(Rotor color: Yellow)		  Flush recessed
 for Flat slot		 Side Through
 hole		 Tray,
 50 pcs/tray
SC-2111 10 pos. Real
(Knob color: Yellow)		 With knob Side Through
 hole		 Plastic bag,
 25 pcs/pack
SC-2111W 10 pos. Real
(Knob color: Yellow)		 With knob Side Through
 hole		 Tray,
 50 pcs/tray
SC-2211 10 pos. Real
(Rotor color: Yellow)		  Flush recessed
 for Phillips slot		 Side Through
 hole		 Plastic bag,
 25 pcs/pack
SC-2211W 10 pos. Real
(Rotor color: Yellow)		  Flush recessed
 for Phillips slot		 Side Through
 hole		 Tray,
 50 pcs/tray
SC-2010B 10 pos. Real
(Rotor color: Yellow)		  Flush recessed
 for Flat slot		 Top Gull wing Plastic bag,
 25 pcs/pack
SC-2010WB 10 pos. Real
(Rotor color: Yellow)		  Flush recessed
 for Flat slot		 Top Gull wing Tray,
 50 pcs/tray
SC-2010TB 10 pos. Real
(Rotor color: Yellow)		  Flush recessed
 for Flat slot		 Top Gull wing Taping,
 500 pcs/reel
SC-2210B 10 pos. Real
(Rotor color: Yellow)		  Flush recessed
 for Phillips slot		 Top Gull wing Plastic bag,
 25 pcs/pack
SC-2210WB 10 pos. Real
(Rotor color: Yellow)		  Flush recessed
 for Phillips slot		 Top Gull wing Tray,
 50 pcs/tray
SC-2210TB 10 pos. Real
(Rotor color: Yellow)		  Flush recessed
 for Phillips slot		 Top Gull wing Taping,
 500 pcs/reel
SC-2030  10 pos. Complementary 
 (Rotor color: Red)		  Flush recessed
 for Flat slot		 Top Through
 hole		 Plastic bag,
 25 pcs/pack
SC-2030W  10 pos. Complementary 
 (Rotor color: Red)		  Flush recessed
 for Flat slot		 Top Through
 hole		 Tray,
 50 pcs/tray
SC-2130  10 pos. Complementary 
 (Knob color: Red)		 With knob Top Through
 hole		 Plastic bag,
 25 pcs/pack
SC-2130W  10 pos. Complementary 
 (Knob color: Red)		 With knob Top Through
 hole		 Tray,
 50 pcs/tray
SC-2230  10 pos. Complementary 
 (Rotor color: Red)		  Flush recessed
 for Phillips slot		 Top Through
 hole		 Plastic bag,
 25 pcs/pack
SC-2230W  10 pos. Complementary 
 (Rotor color: Red)		  Flush recessed
 for Phillips slot		 Top Through
 hole		 Tray,
 50 pcs/tray
SC-2031  10 pos. Complementary 
 (Rotor color: Red)		  Flush recessed
 for Flat slot		 Side Through
 hole		 Plastic bag,
 25 pcs/pack
SC-2031W  10 pos. Complementary 
 (Rotor color: Red)		  Flush recessed
 for Flat slot		 Side Through
 hole		 Tray,
 50 pcs/tray
SC-2131  10 pos. Complementary 
 (Knob color: Red)		 With knob Side Through
 hole		 Plastic bag,
 25 pcs/pack
SC-2131W  10 pos. Complementary 
 (Knob color: Red)		 With knob Side Through
 hole		 Tray,
 50 pcs/tray
SC-2231  10 pos. Complementary 
 (Rotor color: Red)		  Flush recessed
 for Phillips slot		 Side Through
 hole		 Plastic bag,
 25 pcs/pack
SC-2231W  10 pos. Complementary 
 (Rotor color: Red)		  Flush recessed
 for Phillips slot		 Side Through
 hole		 Tray,
 50 pcs/tray
SC-2030B  10 pos. Complementary 
 (Rotor color: Red)		  Flush recessed
 for Flat slot		 Top Gull wing Plastic bag,
 25 pcs/pack
SC-2030WB  10 pos. Complementary 
 (Rotor color: Red)		  Flush recessed
 for Flat slot		 Top Gull wing Tray,
 50 pcs/tray
SC-2030TB  10 pos. Complementary 
 (Rotor color: Red)		  Flush recessed
 for Flat slot		 Top Gull wing Taping,
 500 pcs/reel
SC-2230B  10 pos. Complementary 
 (Rotor color: Red)		  Flush recessed
 for Phillips slot		 Top Gull wing Plastic bag,
 25 pcs/pack
SC-2230WB  10 pos. Complementary 
 (Rotor color: Red)		  Flush recessed
 for Phillips slot		 Top Gull wing Tray,
 50 pcs/tray
SC-2230TB  10 pos. Complementary 
 (Rotor color: Red)		  Flush recessed
 for Phillips slot		 Top Gull wing Taping,
 500 pcs/reel
SC-1010 16 pos. Real
(Rotor color: Yellow)		  Flush recessed
 for Flat slot		 Top Through
 hole		 Plastic bag,
 25 pcs/pack
SC-1010W 16 pos. Real
(Rotor color: Yellow)		  Flush recessed
 for Flat slot		 Top Through
 hole		 Tray,
 50 pcs/tray
SC-1110 16 pos. Real
(Knob color: Yellow)		 With knob Top Through
 hole		 Plastic bag,
 25 pcs/pack
SC-1110W 16 pos. Real
(Knob color: Yellow)		 With knob Top Through
 hole		 Tray,
 50 pcs/tray
SC-1210 16 pos. Real
(Rotor color: Yellow)		  Flush recessed
 for Phillips slot		 Top Through
 hole		 Plastic bag,
 25 pcs/pack
SC-1210W 16 pos. Real
(Rotor color: Yellow)		  Flush recessed
 for Phillips slot		 Top Through
 hole		 Tray,
 50 pcs/tray
SC-1011 16 pos. Real
(Rotor color: Yellow)		  Flush recessed
 for Flat slot		 Side Through
 hole		 Plastic bag,
 25 pcs/pack
SC-1011W 16 pos. Real
(Rotor color: Yellow)		  Flush recessed
 for Flat slot		 Side Through
 hole		 Tray,
 50 pcs/tray
SC-1111 16 pos. Real
(Knob color: Yellow)		 With knob Side Through
 hole		 Plastic bag,
 25 pcs/pack
SC-1111W 16 pos. Real
(Knob color: Yellow)		 With knob Side Through
 hole		 Tray,
 50 pcs/tray
SC-1211 16 pos. Real
(Rotor color: Yellow)		  Flush recessed
 for Phillips slot		 Side Through
 hole		 Plastic bag,
 25 pcs/pack
SC-1211W 16 pos. Real
(Rotor color: Yellow)		  Flush recessed
 for Phillips slot		 Side Through
 hole		 Tray,
 50 pcs/tray
SC-1010B 16 pos. Real
(Rotor color: Yellow)		  Flush recessed
 for Flat slot		 Top Gull wing Plastic bag,
 25 pcs/pack
SC-1010WB 16 pos. Real
(Rotor color: Yellow)		  Flush recessed
 for Flat slot		 Top Gull wing Tray,
 50 pcs/tray
SC-1010TB 16 pos. Real
(Rotor color: Yellow)		  Flush recessed
 for Flat slot		 Top Gull wing Taping,
 500 pcs/reel
SC-1210B 16 pos. Real
(Rotor color: Yellow)		  Flush recessed
 for Phillips slot		 Top Gull wing Plastic bag,
 25 pcs/pack
SC-1210WB 16 pos. Real
(Rotor color: Yellow)		  Flush recessed
 for Phillips slot		 Top Gull wing Tray,
 50 pcs/tray
SC-1210TB 16 pos. Real
(Rotor color: Yellow)		  Flush recessed
 for Phillips slot		 Top Gull wing Taping,
 500 pcs/reel
SC-1030  16 pos. Complementary 
 (Rotor color: Red)		  Flush recessed
 for Flat slot		 Top Through
 hole		 Plastic bag,
 25 pcs/pack
SC-1030W  16 pos. Complementary 
 (Rotor color: Red)		  Flush recessed
 for Flat slot		 Top Through
 hole		 Tray,
 50 pcs/tray
SC-1130  16 pos. Complementary 
 (Knob color: Red)		 With knob Top Through
 hole		 Plastic bag,
 25 pcs/pack
SC-1130W  16 pos. Complementary 
 (Knob color: Red)		 With knob Top Through
 hole		 Tray,
 50 pcs/tray
SC-1230  16 pos. Complementary 
 (Rotor color: Red)		  Flush recessed
 for Phillips slot		 Top Through
 hole		 Plastic bag,
 25 pcs/pack
SC-1230W  16 pos. Complementary 
 (Rotor color: Red)		  Flush recessed
 for Phillips slot		 Top Through
 hole		 Tray,
 50 pcs/tray
SC-1031  16 pos. Complementary 
 (Rotor color: Red)		  Flush recessed
 for Flat slot		 Side Through
 hole		 Plastic bag,
 25 pcs/pack
SC-1031W  16 pos. Complementary 
 (Rotor color: Red)		  Flush recessed
 for Flat slot		 Side Through
 hole		 Tray,
 50 pcs/tray
SC-1131  16 pos. Complementary 
 (Knob color: Red)		 With knob Side Through
 hole		 Plastic bag,
 25 pcs/pack
SC-1131W  16 pos. Complementary 
 (Knob color: Red)		 With knob Side Through
 hole		 Tray,
 50 pcs/tray
SC-1231  16 pos. Complementary 
 (Rotor color: Red)		  Flush recessed
 for Phillips slot		 Side Through
 hole		 Plastic bag,
 25 pcs/pack
SC-1231W  16 pos. Complementary 
 (Rotor color: Red)		  Flush recessed
 for Phillips slot		 Side Through
 hole		 Tray,
 50 pcs/tray
SC-1030B  16 pos. Complementary 
 (Rotor color: Red)		  Flush recessed
 for Flat slot		 Top Gull wing Plastic bag,
 25 pcs/pack
SC-1030WB  16 pos. Complementary 
 (Rotor color: Red)		  Flush recessed
 for Flat slot		 Top Gull wing Tray,
 50 pcs/tray
SC-1030TB  16 pos. Complementary 
 (Rotor color: Red)		  Flush recessed
 for Flat slot		 Top Gull wing Taping,
 500 pcs/reel
SC-1230B  16 pos. Complementary 
 (Rotor color: Red)		  Flush recessed
 for Phillips slot		 Top Gull wing Plastic bag,
 25 pcs/pack
SC-1230WB  16 pos. Complementary 
 (Rotor color: Red)		  Flush recessed
 for Phillips slot		 Top Gull wing Tray,
 50 pcs/tray
SC-1230TB  16 pos. Complementary 
 (Rotor color: Red)		  Flush recessed
 for Phillips slot		 Top Gull wing Taping,
 500 pcs/reel

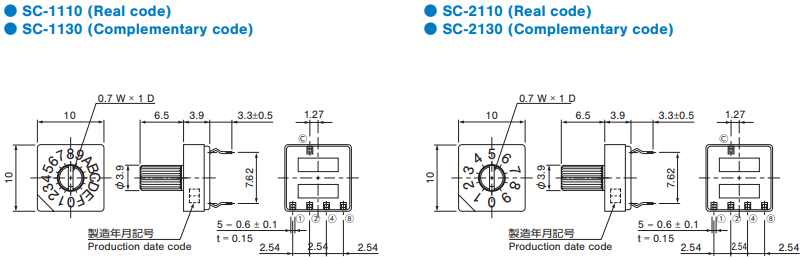

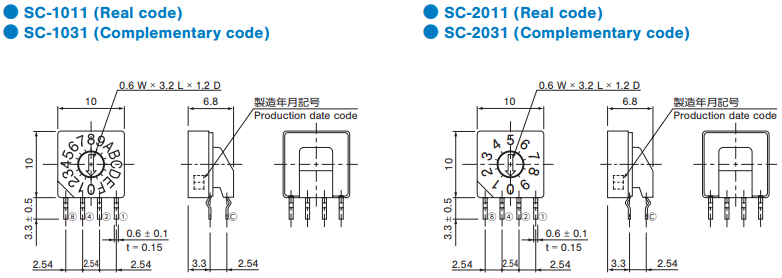

Outline Dimensions

Unless otherwise specified, tolerance: ± 0.3 (Unit: mm)

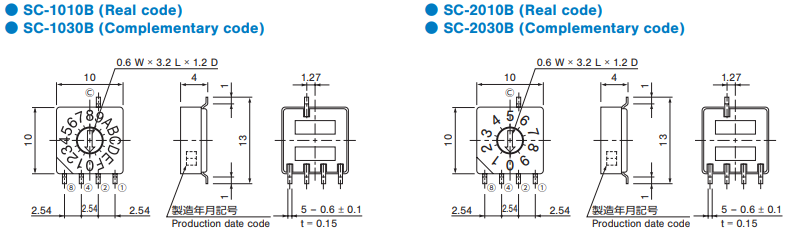

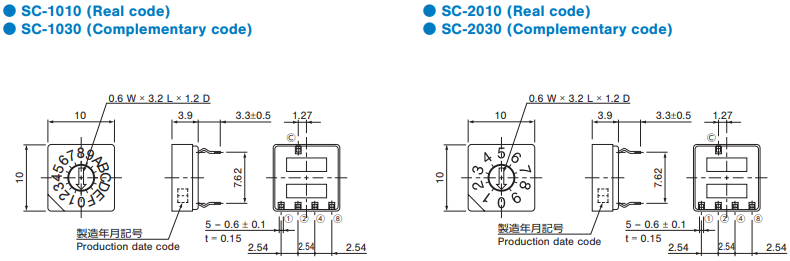

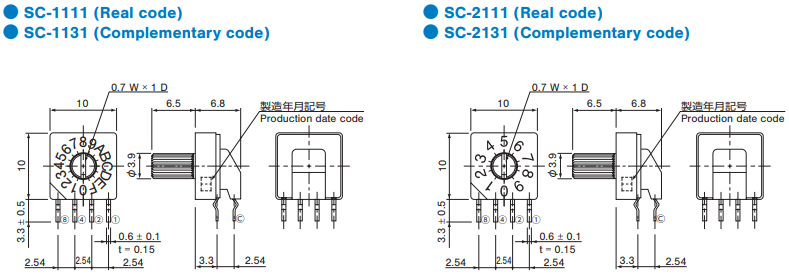

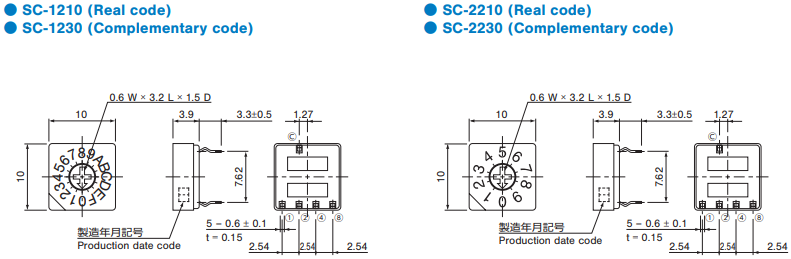

<Through hole pin, Top setting>

/
/
/
/
/
/

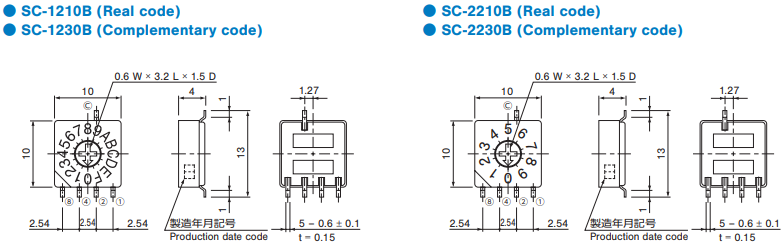

<Gull wing, Top setting>

/
/

Recommended P.C.B. Pap Outline Dimensions

(Unit:mm)

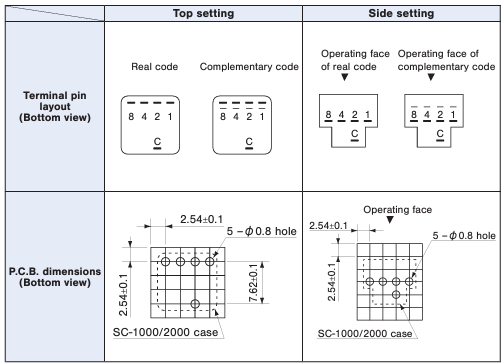

Terminal Pin Layout / P.C.B. Dimensions [Bottom view]

(Unit:mm)

Packaging Specificatins

〈Taping packaging specifications〉

● Taping version is packaged in 500 pcs. per reel. Orders will be accepted for units of 500 pcs., i.e., 500, 1000, 1500 pcs., etc.
● Taping version is boxed with one reel (500 pcs.).
● Maximum number of consecutive missing pieces = 2 Leader length and reel dimension are shown in the diagrams below:

(Unit:mm)

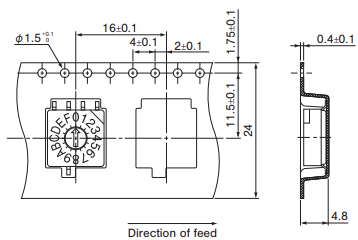

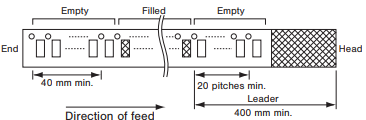

  • ● Embossed tape dimensions

  • ● Reel dimensions
    (In accordance with EIAJ ET-7200A)
  • (In accordance with EIAJ RC-1009B)

〈Tray packaging specifications〉

● Tray version is packaged in 50 pcs. per tray. Orders will be accepted for units of 50 pcs., i. e., 50, 100, 150 pcs. etc.
● Tray version is boxed with 10 trays.

〈Bulk pack specifications〉

● The smallest unit of bulk pack in a plastic bag is 10 pcs. per pack. Orders will be accepted for unit of minimum 10 pcs., i.e., 10, 20, 30 pcs. , etc
● Boxing of bulk pack in a plastic bag is performed with 25 pcs. (standard 50 pcs.) per box.

Documents

Environmental Data

●The above contents and descriptions are subject to change without notice.

Return previous page

Products

×

page top
