Toggle switch ETW
-
![ETW115A12 [SW function: ON-OFF]](/file/products/etw115a12_200x200px.png "ETW115A12 [SW function: ON-OFF]")
ETW115A12
[SW function: ON-OFF] -
![ETW115D12 [SW function: ON-ON]](/file/products/etw115d12_200x200px.png "ETW115D12 [SW function: ON-ON]")
ETW115D12
[SW function: ON-ON] -
![ETW115E12 [SW function: ON-OFF-ON]](/file/products/etw115e12_200x200px.png "ETW115E12 [SW function: ON-OFF-ON]")
ETW115E12
[SW function: ON-OFF-ON] -
![ETW115G12 [SW function: (ON)-OFF-(ON)]](/file/products/etw115g12_200x200px.png "ETW115G12 [SW function: (ON)-OFF-(ON)]")
ETW115G12
[SW function: (ON)-OFF-(ON)]
-
ETW115A12
[SW function: ON-OFF] -
ETW115D12
[SW function: ON-ON] -
ETW115E12
[SW function: ON-OFF-ON] -
ETW115G12
[SW function: (ON)-OFF-(ON)]
- ●To buy this product, please go to the following Online Web stores.
Environmentally Sealed Miniature Toggles
FeaturesFeatures
-
High dust and water-proof properties ensure high reliability even in tough situation
Front Panel Seal: IP67 of IEC60529
Behind Panel Seal: IP60 of IEC60529 -
The area around the terminal is sealed with adhesive
-
Optimized structural design provides a light operating feel
-
Applications suitable for the general equipment market, construction machinery, power generation systems, kitchen equipment, and machine tools.
Specifications
| Rating (Resistive load) | 15 A 127 VAC 10 A 250 VAC |
|---|---|
| Initial contact resistance | 20 mΩ max.（ 1 A 2～4 VDC ） |
| Dielectric strength | 1,500 VAC 1 minute |
| Insulation resistance | 100 MΩ min. (500 VDC） |
| Electrical life | 25,000 cycles |
| Operating temperature range | ｰ10～+70 ℃ |
| Storage temperature range | ｰ20～+80 ℃ |
Part Number Designation
| ETW | 1 | 15 | A | 12 |
|---|---|---|---|---|
|
Series |
Number of poles 1: 1 pole |
Current capacity 5: 15 A |
Switching function A: ON - OFF D: ON - ON E: ON - OFF - ON G: (ON) - OFF - (ON) |
Terminal style 12: Solder |
List of Part Numbers
| Part number | Number of poles | Current capacity | Terminal style | Switching function | CAD |
|---|---|---|---|---|---|
| ETW115A12 | 1 pole | 15 A | Solder | ON - OFF | |
| ETW115D12 | 1 pole | 15 A | Solder | ON - ON | |
| ETW115E12 | 1 pole | 15 A | Solder | ON - OFF - ON | |
| ETW115G12 | 1 pole | 15 A | Solder | (ON) - OFF - (ON) |
Switching Function
| A | ON | ― | OFF |
|---|---|---|---|
| Connecting terminals | 1-3 | ― | ― |
| D | ON | ON | |
| E | ON | OFF | ON |
| G | (ON) | OFF | (ON) |
| Connecting terminals | 2-3 | ― | 2-1 |
Outline Dimensions
(Unit: mm)

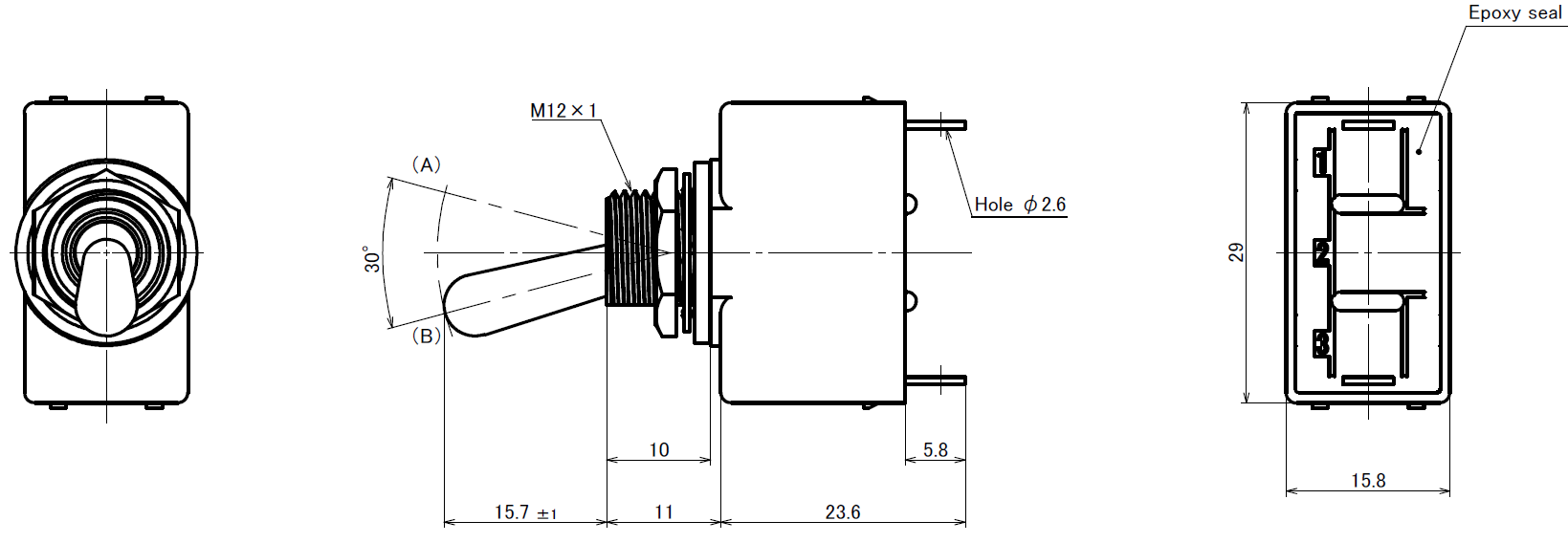

- ETW115A

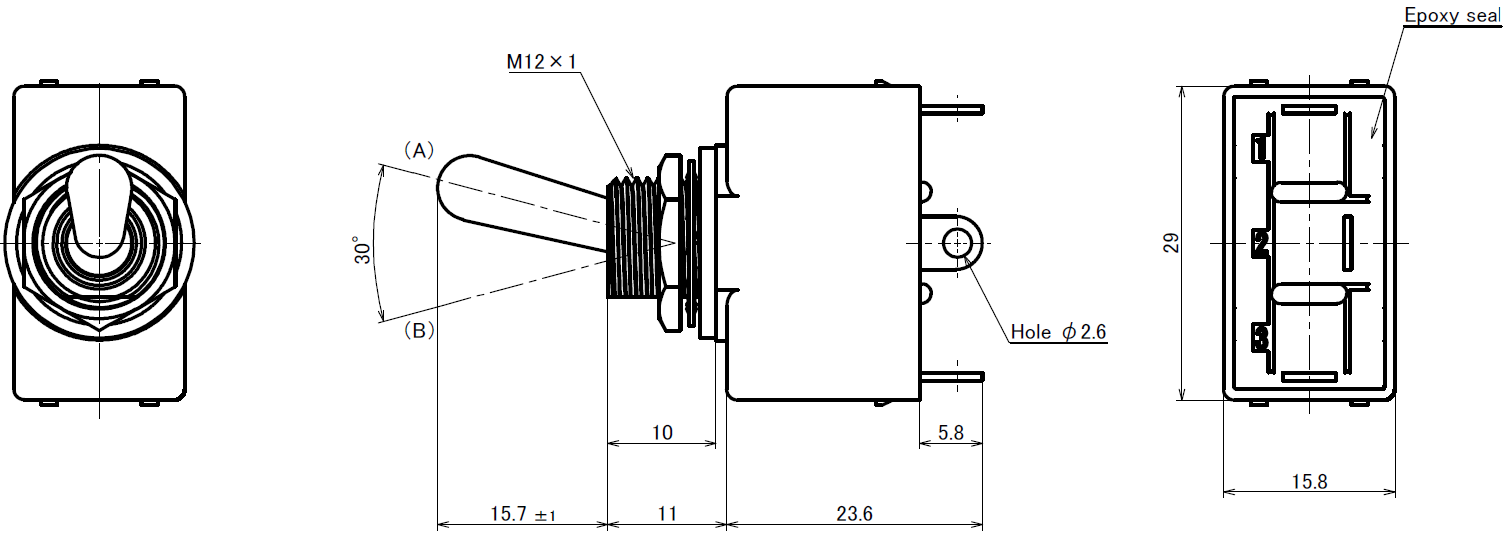

- ETW115D

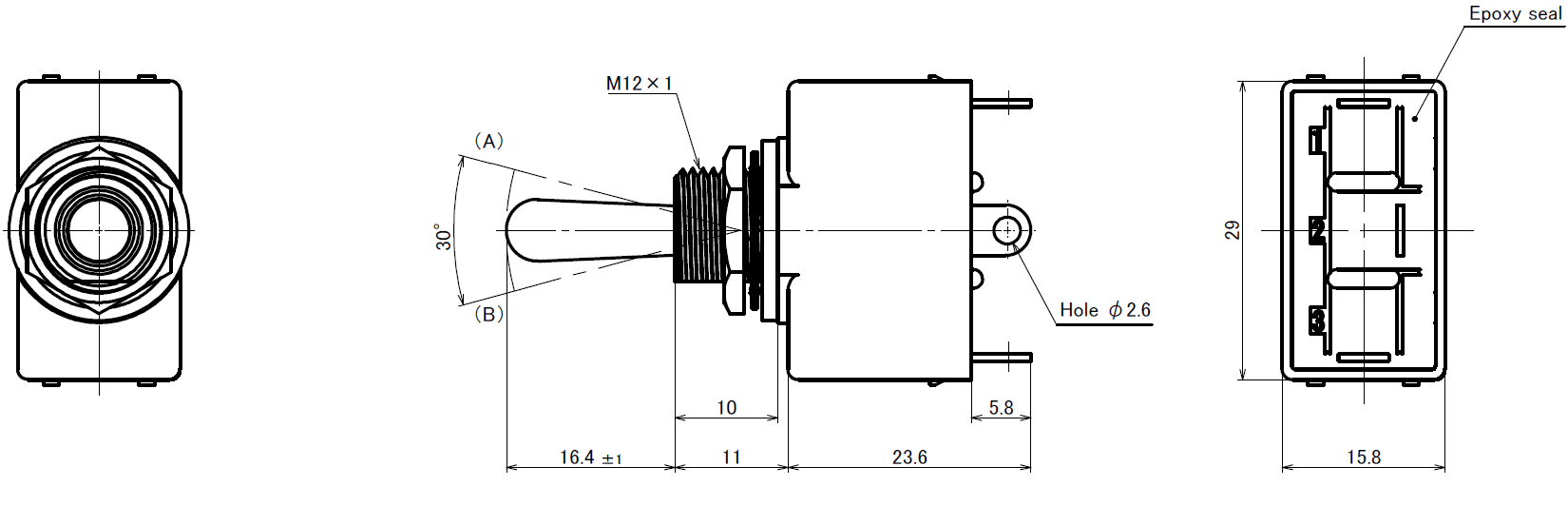

- ETW115E/G

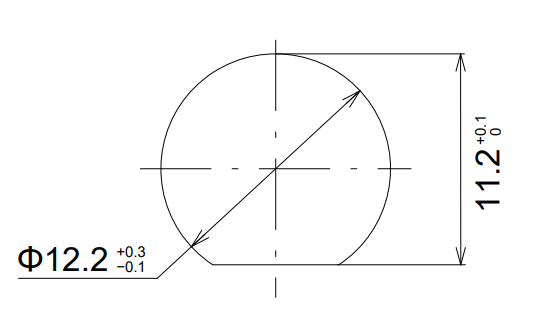

Panel Cut-out Dimension
(Unit: mm)
■ Panel thickness max. 5.5mm
Documents
Environmental Data
