Potentiometer M-1303
- ●To buy this product, please go to the following Online Web stores.
WIREWOUND MULTITURN TYPE
FeaturesFeatures
-
Line-up includes products ranging from 3 turns
-
RoHS Compliant
STANDARD SPECIFICATIONS
| Resistance torelance | ± 5% |
|---|---|
| Independent linearity | ± 0.5 % |
| End resistance, maximum | 2 % or 4 Ω, whichever is greater |
| Effective electrical angle | 1080° |
| Mechanical angle | 1080° +10° |
| Power rating | 0.75 W |
| Dielectric strength | 1000 Vrms 1 min |
| Insulation resistance | 1000 MΩ minimum(at DC 500 V) |
| Rotational torque | 14.7 {150}mN·m {gf·cm} maximum |
| Strength of tighten screw | 0.98 {10} N·m {kgf·cm} maximum |
| Stop strength | 0.147 {1.5}N·m {kgf·cm} maximum |
| Peak noise | 20 Ω maximum(at 4 min-1) |
| Temp. coefficient of resistance | ± 50 ppm/°C |
| Operating temp. range | − 40 ~ 85°C |
| Rotational life | 15000 cycles |
| Net weight | Approx. 7g |
| Protection grade | IP40 |
NOMINAL RESISTANCE • RESOLUTION • RATED VOLTAGE • RATED CURRENT
| Nominal resistance value(Ω) | Resolution(%) | Rated voltage(V) | Rated current(mA) | |||
|---|---|---|---|---|---|---|
| 100 | 0.190 | 8.7 | 86.2 | |||
| 200 | ➡ 0.154 | ➡ 12.2 | ➡ 61.5 | |||
| 500 | 0.115 | 19.4 | 38.7 | |||
| 1 k | 0.072 | 27.4 | 28.5 | |||
| 2 k | 0.056 | 38.7 | 19.4 | |||
| 5 k | 0.069 | 61.2 | 12.3 | |||
| 10k | 0.053 | 86.6 | 8.7 | |||
| 20 k | 0.038 | 122.5 | 6.1 | |||
The products indicated by ➡ mark are manufactured upon receipt of order basis.
PART NUMBER DESIGNATION
| M - 1303 | 100 |
|---|---|
|
Series name |
Nominal resistance value(Ω) 100, 200, 500, 1 k, 2 k, 5 k, 10 k, 20 k |
LIST OF PART NUMBERS
| Part number | No. of turn | Nominal resistance value (Ω) | CAD |
|---|---|---|---|
|
M-1303 [Resistance value] ※
|
3 turns
|
100, 200, 500, 1 k, 2 k, 5 k,10 k, 20 k
|

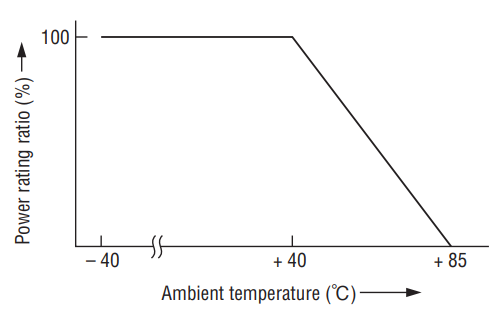

RATED POWER DERATING CURVE
OUTLINE DIMENSIONS
