Panal seal Rocker switch CL-LB
- ●To buy this product, please contact Sales Reps, Distributors.
Ideal for function operation switches in the cockpit
-
- ●
- Made to Order Product, so please contact us separately.
- Multifunction and utility switch
- The actuator that the operability is sought for from the ergonomics
- Illuminated type also lineup
◆Applications
- Function operation switches for construction machinery, automotive and ship.
Part number designation
| CL-LB- | １ | １ | A | 1- | S | 0 |
|---|---|---|---|---|---|---|
|
Series name |
1. No. of pose(s) |
2. Switchinng function |
3. Contact rating |
4. Terminal / Base style |
5. Illumination |
6. LED a |
| 0- | 21 | A0- | 0- | ＊＊ | ||
|
7. LED b |
8. Actuator |
9. Actuator lens |
10. Panel seal |
11. Actuator marking |
◆Lock type
| CL － LB- | １ | 4 | A | 1- | A | C |
|---|---|---|---|---|---|---|
|
series name |
1.No.of pose(s) |
2.Switchinng function |
3.Contact rating |
4.Terminal/ Base style |
5.Illumination |
6. LED a |
| Y- | 21 | 4 | A- | 1- | ＊＊ | |
|

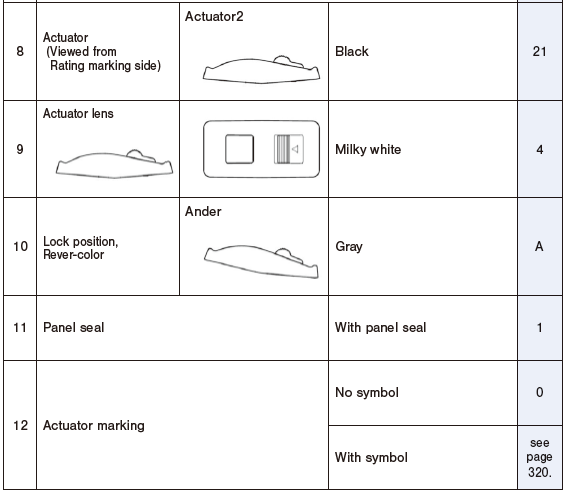

7.Lock type |
8.Actuator |
9.Actuator lens |
10.Lock position,Rever-color |
11.Panel seal |
12.Actuator marking |
Standard specifications
| Operating temp. range | -40-+85 ℃ |
|---|---|
| Storage temp. range | -40-+85 ℃ |
| Protection grade | Panel seal(Equivalent to IP68) |
| No.of poles | 1pole 2poles |
| Switching function | ON - OFF Standard type (ON) ‒ OFF Standard type ON ‒ ON Standard type ON － OFF ‒ ON Standard type ON － OFF － (ON) Standard type (ON) － OFF － (ON) Standard type ON ‒ OFF Lock type ON ‒ ON Lock type |
Electrical characteristics
| Contact rating | 15A, 24VDC （Resistive road） 20A, 12VDC （Resistive road） 100mA, 5VDC （Minimum rating) |
|---|---|
| Contact resistance | (2〜4VDC, 1A) 10mΩ Maximum (initial) |
| Insulation resistance | 50MΩ Minimum (500VDC) |
| Dielection strength | 1,500VAC 1minute |
LIFE
| Electrical life | 50,000 cycles (Rated load） Switching frequency 7.5 cycles/minute |
|---|---|
| Mechanical life | 150,000 cycles Switching frequency 30 cycles/minute |
Environmental characteristics
| Vibration | 10-500 Hz, 10-500-10 Hz, 15 minutes 3 directions for 12 times each |
|---|---|
| Shock | 294 m/s2, 11 ms 6 directions for 3 times each |
| Humidity | 10 ~ 65 ℃ , Relative 0 ~ 96 %, 24 h for 10 cycles |
| High temperature exposure | 85 ℃, 16 h |
| Low temperature exposure | −40 ℃, 16 h |
| Thermal shock | −55 ℃ (0.5 h) ~ 85 ℃ (0.5 h), 5 cycles |
| Corrosion resistance(salt spray test) | 35℃±2℃ , alt spray of concentration of 5±1% (mass ratio),Spray pressure,68.6~176kPa, Spray 48h |
Mechanical characteristics
|
Switching angle |
2 Positions: 18 ° 3 Positions : 9 ° |
|---|---|
|
Operating force |
0.3 ～10 N |
|
Stop strength |
(Static load Applied time) : 60 s |
| Lock strength(Lock type) | Static load): 98 N Applied time：60S Apply load to the top in lock state |
Illuminated characteristics
●LED max rating
|
Item | Symbol | LED | Unit | ||||
|---|---|---|---|---|---|---|---|
| Red | Amber | Green | White | Red(high brightness) | |||
| Forward Curen | IF | 30 | 30 | 30 | 20 | 30 | mA |
| Reverse Voltage | VR | ５ | ５ | ５ | ５ | ５ | V |
●LED electrical characteristics
|
Item |
Symbol | LED |
Unit | |||||
|---|---|---|---|---|---|---|---|---|
| Red | Amber | Green | White | Red(high brightness) | ||||
| Forward Curent (IF = 20 mA) | IF | TYP. | 1.9 | 1.9 | 1.9 | 2.9 | 1.9 | mA |
| MAX. | 2.4 | 2.4 | 2.6 | 3.4 | 2.4 | V | ||
●Resistance
- Connected in series with the LED inside the product.
|
Item | LED |
Unit | ||||
|---|---|---|---|---|---|---|
| Red | Amber | Green | White | Red(high brightness) | ||
| Resistance（24VDC） | 10 | 10 | 2.4 | 10 | 2.4 | kΩ |
| Resistance（12VDC） | 4.7 | 4.7 | 1.1 | 4.7 | 1.1 | kΩ |
Outline dimensions
●Standard type
- The presence or absence of the terminal depends on the number of poles, Switching function, and illumination circuit.
●Lock type
Panel cut out dimensions
Circuit characteristics
Illumination position, internal connection
Accessories
Marking symbol
Packaging Specifiation
● Orders will be accepted for units of 5pcs.
Documents
Environmental Data
- ●The above contents and descriptions are subject to change without notice.
