Potentiometer JP-30B
- ●To buy this product, please go to the following Online Web stores.

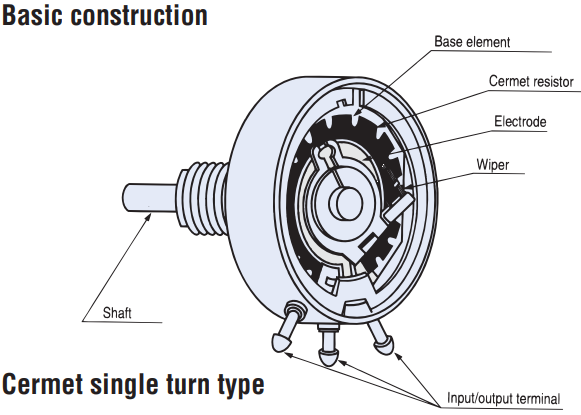

CERMET SINGLE TURN TYPE
- Cost effective (In house comparison)
- High resoluiion (Essentially infinite)
- RoHS compliant
STANDARD SPECIFICATIONS
| Resistance torelance | ± 2% |
|---|---|
| Resolution | Essentially infinite |
| Independent linearity | ± 0.5% |
| Effective electrical angle | 300° ± 1° |
| Mechanical angle | 300° +20°-0° |
| Power rating (at 40 °C) | 1.5W |
| Dielectric strength | 1000 Vrms 1 min |
| Insulation resistance | 1000 MΩ minimum(at DC500 V) |
| Rotational torque | 2.94 ~ 14.7 {30 ~ 150} mN·m {gf·cm} maximum |
| Stop strength | 0.490 {5} N·m {kgf·cm}maximum |
| Peak noise | 2 % or 100 Ω, whichever is greater |
| Temp. coefficient of resistance | ± 150 10-6/°C |
| Operating temp. range | − 55 ~ 85°C |
| Maximum rotational speed | 150 r/min |
| Rotational life | 10 万サイクル |
| Net weight | Approx. 26g |
| Strength of tighten screw | 0.98 N·m {10 kgf·cm} maximum |
- Perform soldering of the terminals at 380 °C for no more three seconds, and avoid applying excess heat. Also, avoid applying outside force to the terminals.
In case of using multiturn potentiometers, when rotating the shaft to the mechanical limit, apply torque below the strength of the stopper. Also, give due consideration to thrust and radial loading.
PART NUMBER DESIGNATION
| JP - 30B- | 1K |
|---|---|
|
Series name JP-30B：For manual setting |
Nominal resistance value（Ω） 500, 1 k, 2 k, 5 k, 10 k, 20 k, 50 k, 100 k |
LIST OF PART NUMBERS
| Part number | Nominal resistance value |
|---|---|
| JP-30B 500 | 500 Ω |
| JP-30B 1 k | 1 kΩ |
| JP-30B 2 k | 2 kΩ |
| JP-30B 5 k | 5 kΩ |
| JP-30B 10 k | 10 kΩ |
| JP-30B 20 k | 20 kΩ |
| JP-30B 50 k | 50 kΩ |
| JP-30B 100 k | 100 kΩ |
NOMINAL RESISTANCE VALUE • RATED VOLTAGE • RATED CURRENT
| Nominal resistance value | Rated voltage | Rated current |
|---|---|---|
| 500Ω | 27.3 V | 54.7 mA |
| 1 kΩ | 38.7 V | 38.7 mA |
| 2 kΩ | 54.7 V | 27.3 mA |
| 5 kΩ | 86.6 V | 17.3 mA |
| 10kΩ | 122 V | 12.2 mA |
| 20 kΩ | 173 V | 8.66 mA |
| 50 kΩ | 273 V | 5.47 mA |
| 100 kΩ | 387 V | 3.87 mA |
RATED POWER DERATING CURVE
|
|
OUTLINE DIMENSIONS
Unless otherwise specified, tolerance: ± 0.5 (Unit: mm)
