Trimmer potentiometer FT-63
-
FT-63
-
FT-63
- ●To buy this product, please go to the following Online Web stores.
Low Cost General-Purpose Type
FeaturesFeatures
- RoHS compliant
- Resistance tolerance ±10 %
- “O” ring sealed (Washable)
- Suitable for automatic insertion and automatic adjust ment
- Increase in the level of characteristics in the high frequency
field (In house comparison) - In this series, material data sheets ideal for REACH-SVHC
surveys etc. can be downloaded in chemSHERPA-AI format. - Download chemSHERPA-AI from the list of P/N below
Electrical Characteristics
| Power ratings | 0.5 W (70 °C) 0 W (125 °C) |
|---|---|
| Nominal resistance range | 10 ~ 2 MΩ |
| Resistance tolerance | ± 10 % |
| Resistance law | Linear law (B) |
| Maximum input voltage | DC200 V or power rating, whichever is smaller |
| Maximum wiper current | Power ratings |
| Effective electrical angle | 220 ° (1 turn) |
| End resistance | 1 % or 2 Ω , whichever is greater |
| C.R.V. | 2 % or 3 Ω , whichever is greater |
| Operating temp. range | － 55 ~ 125 °C |
| Temp. coefficient | 10Ω ~ 20Ω : ± 150 10-6/°C maximum 50Ω ~ 2 MΩ : ± 100 10-6/°C maximum |
| Insulation resistance | 1000 MΩ minimum (DC500 V) |
| Dielectric strength | AC900 V, 60 s |
| Net weight | Approx. 0.52 g (FT-63EP, EV) Approx. 0.66 g (FT-63ES, EH, EX, EN) |
Mechanical Characteristics
| Mechanical angle | 260° (1 turn) |
|---|---|
| Operating torque | 20 mN·m {204 gf·cm} maximum |
| Stop strength | 50 mN·m {510 gf·cm} minimum |
| Rotational life | 100 cycles [ Δ R/R ≦ ± (2 Ω +3 %)] |
| Thrust to rotor | 10 N {1.02 kgf} minimum |
| Solderability | 245 ± 3 °C, 2 ~ 3 s |
| Terminal strength | 10 N {1.02 kgf} minimum （Tensile strength） |
Environmental Characteristics
| Test item | Test conditions | Specifications |
|---|---|---|
| Thermal shock | -65~125 °C (0.5 h), 5 cycles | [ΔR/R ≦ 1%] [S.S. ≦ 1%] |
| Humidity | -10~65 °C (Relative humidity 80~98%), 10 cycles, 240 h | [ΔR/R ≦ 2%] |
| Shock | 981 m/s2, 6 ms 6 directions for 3 times each | [ΔR/R ≦ 1%] [S.S. ≦ 1%] |
| Vibration | Amplitude 1.52 mm or Acceleration 196 m/s2, 10~2000 Hz, 3 directions, 12 times each | [ΔR/R ≦ 1%] [S.S. ≦ 1%] |
| Load life | 70 °C, 0.5 W, 1000 h | [ΔR/R ≦ 3 %] [S.S. ≦ 1 %] |
| Low temp. operation | −55 °C, 2 h | [ΔR/R ≦ 2%] [S.S. ≦ 2%] |
| High temp. exposure | 125 °C, 250 h | [ΔR/R ≦ 3%] [S.S. ≦ 2%] |
| Immersion seal | 85 °C, 60 s | No leaks (No continuous bubbles) |
| Soldering heat |
|
[ΔR/R ≦ 1%] |
Δ R/R: Change in total resistance
S.S.: Setting stability
Maximum Input Ratings
| Nominal resistance values(Ω) | Resistance code | Maximum input voltage(V) | Maximum wiper current(mA) |
|---|---|---|---|
| 10※ | 100 | 2.24 | 223 |
| 20※ | 200 | 3.16 | 158 |
| 50 | 500 | 5.00 | 100 |
| 100 | 101 | 7.07 | 70.7 |
| 200 | 201 | 10.0 | 50.0 |
| 300 | 301 | 12.2 | 40.8 |
| 500 | 501 | 15.8 | 31.6 |
| 1k | 102 | 22.4 | 22.4 |
| 2k | 202 | 31.6 | 15.8 |
| 3k | 302 | 38.7 | 12.9 |
| 5k | 502 | 50.0 | 10.0 |
| 10k | 103 | 70.7 | 7.07 |
| 20k | 203 | 100 | 5.00 |
| 30k | 303 | 122 | 4.08 |
| 50k | 503 | 158 | 3.16 |
| 100k | 104 | 200 | 2.00 |
| 200k | 204 | 200 | 1.00 |
| 300k | 304 | 200 | 0.66 |
| 500k | 504 | 200 | 0.40 |
| 1M | 105 | 200 | 0.20 |
| 2M | 205 | 200 | 0.10 |
The products indicated by ※ mark are manufactured upon receipt of order basis
Part Number Designation
| FT-63 | E | T | A | 5 kΩ (502) |
|---|---|---|---|---|
|
Series |
Terminal pins E: Sn (Lead-free) |
Packaging form T: Taping (Ammo pack type) Blank: Bulk in plastic bag |
Adjust position P: Top adjustment S: Side adjustment V: Top adjustment X: Side adjustment H: Side adjustment N: Side adjustment *Classified by pin position |
Resistance value (Resistance code) |
| Nominal resistance values | 10Ω*, 20Ω*, 50Ω, 100Ω, 200Ω, 300Ω, 500Ω, 1kΩ, 2kΩ, 3kΩ, 5kΩ, 10kΩ, 20kΩ, 30kΩ, 50kΩ, 100kΩ, 200kΩ, 500kΩ, 1MΩ, 2MΩ |
|---|
When ordering, please be sure to include the above nominal resistance value at the end of the part number in the table list below. *10 Ω item, 20 Ω item are made to order.
For resistance code, please refer to the Maximum Input Ratings table in the previous section.
List of Part Numbers
CAD and chemSHERPA-AI (a material data sheet ideal for REACH surveys, etc. / version: 2.10.00 or 2.09.00 available) can be downloaded from the button for each P/N in the table below. *Need to log in to download.
| Part No. | Adjustment position | Packaging form | Packaging quantity | Material data | CAD | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FT-63ETP | Top adjust | Taping (Ammo pack type) |
1000 pcs./reel |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.10.00 or the previous ver. 2.09.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| FT-63ETV | Top adjust | Taping (Ammo pack type) |
1000 pcs./reel |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.10.00 or the previous ver. 2.09.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| FT-63ETS | Side adjust | Taping (Ammo pack type) |
1000 pcs./reel |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.10.00 or the previous ver. 2.09.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| FT-63ETH | Side adjust | Taping (Ammo pack type) |
1000 pcs./reel |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.10.00 or the previous ver. 2.09.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| FT-63EP | Top adjust | Bulk in plastic bag | 100 pcs./pack |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.10.00 or the previous ver. 2.09.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| FT-63EV | Top adjust | Bulk in plastic bag | 100 pcs./pack |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.10.00 or the previous ver. 2.09.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| FT-63ES | Side adjust | Bulk in plastic bag | 100 pcs./pack |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.10.00 or the previous ver. 2.09.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| FT-63EX | Side adjust | Bulk in plastic bag | 100 pcs./pack |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.10.00 or the previous ver. 2.09.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| FT-63EH | Side adjust | Bulk in plastic bag | 100 pcs./pack |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.10.00 or the previous ver. 2.09.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| FT-63EN | Side adjust | Bulk in plastic bag | 100 pcs./pack |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.10.00 or the previous ver. 2.09.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
※
Taping specification is not sold separately and must be purchased in taping unit.

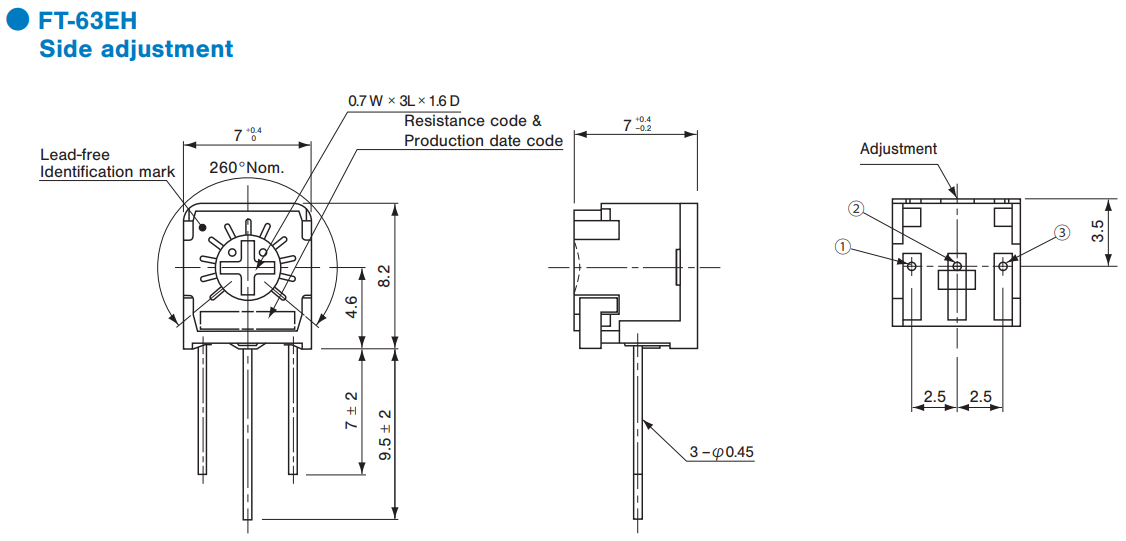

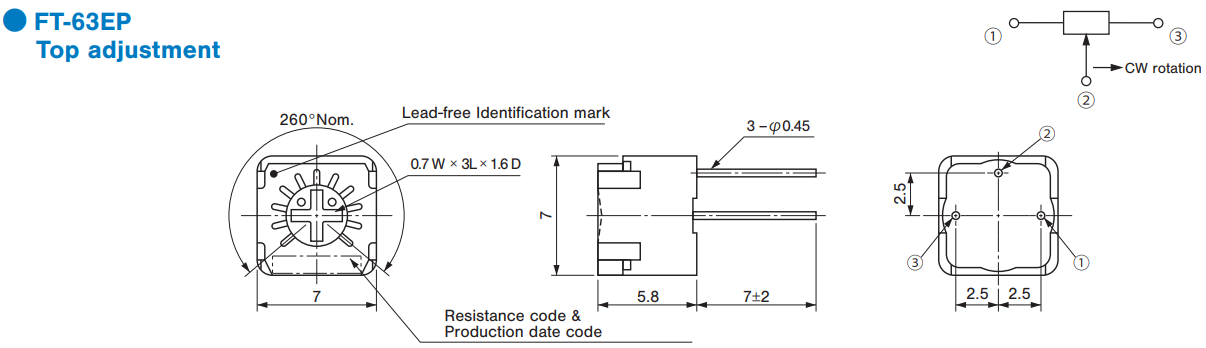

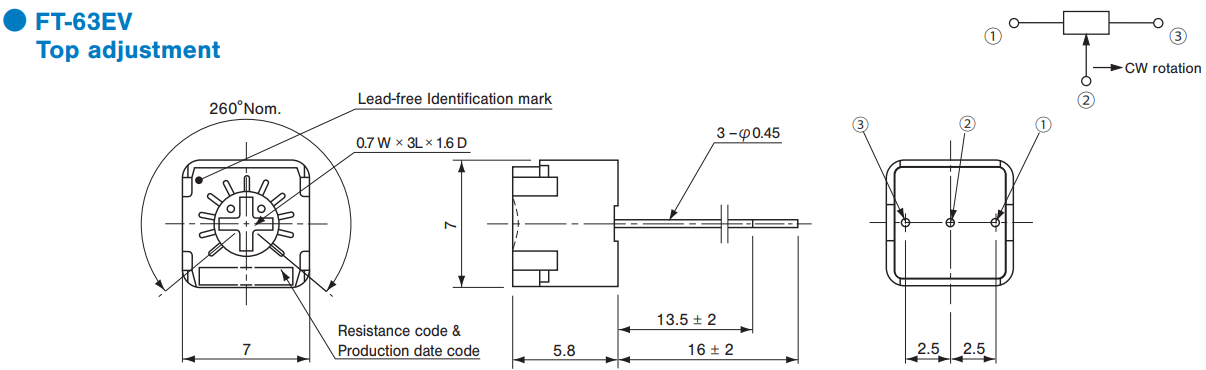

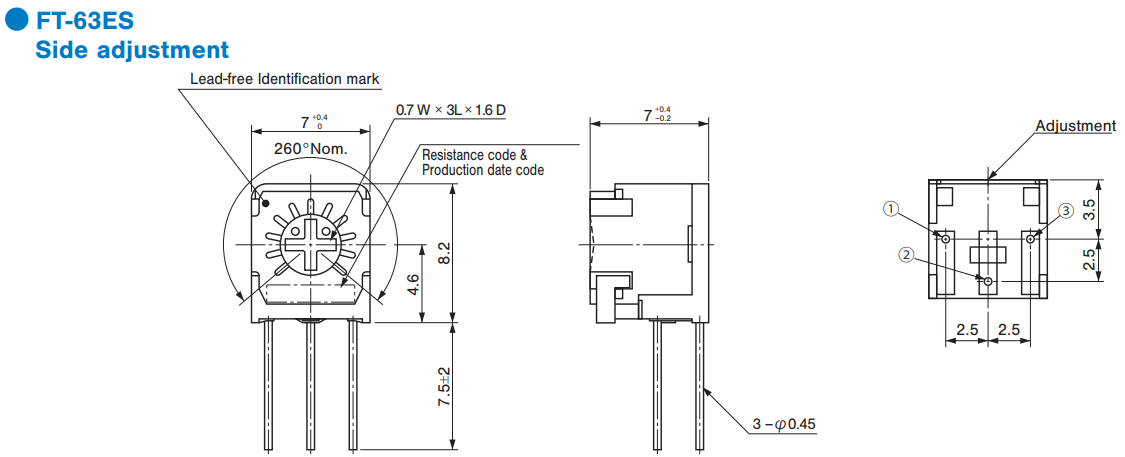

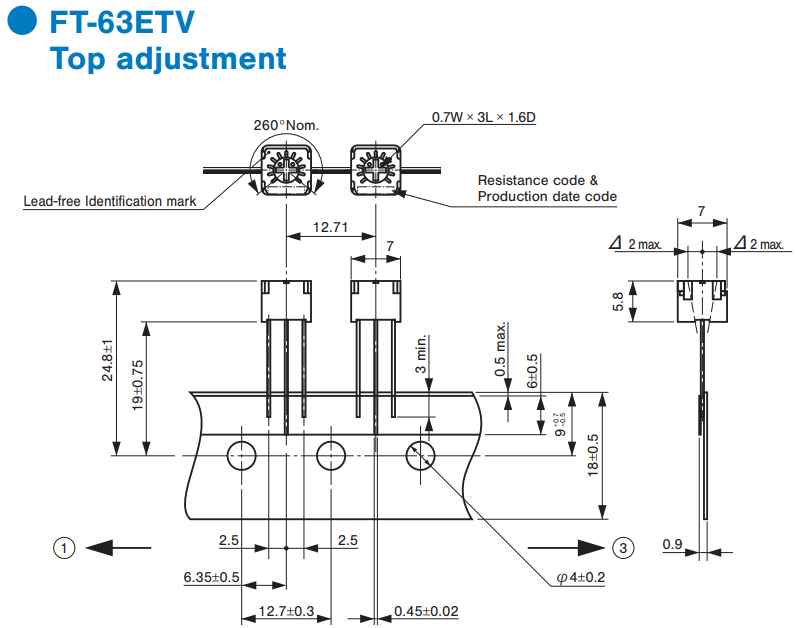

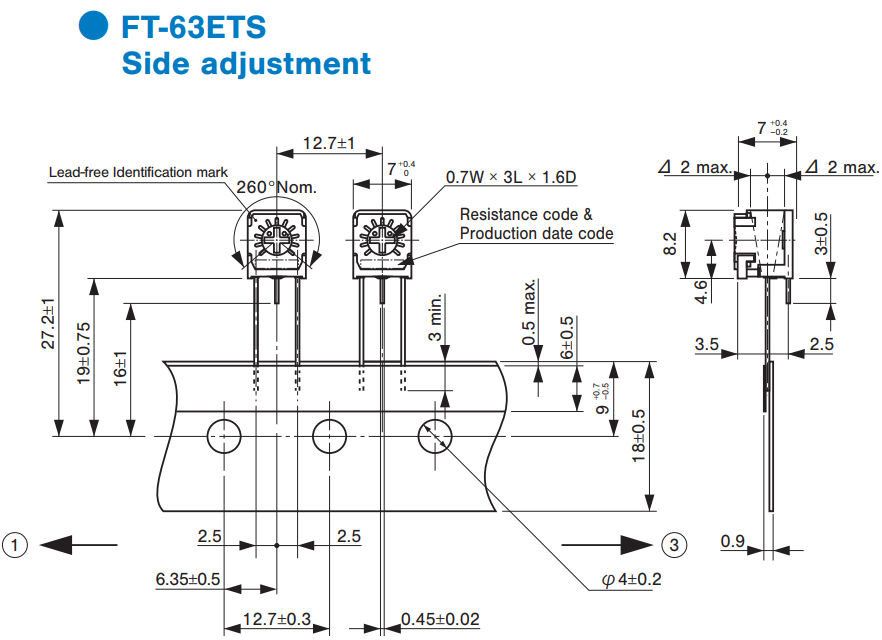

Outline Dimensions
Unless otherwise specified, tolerance: ± 0.3 (Unit: mm)

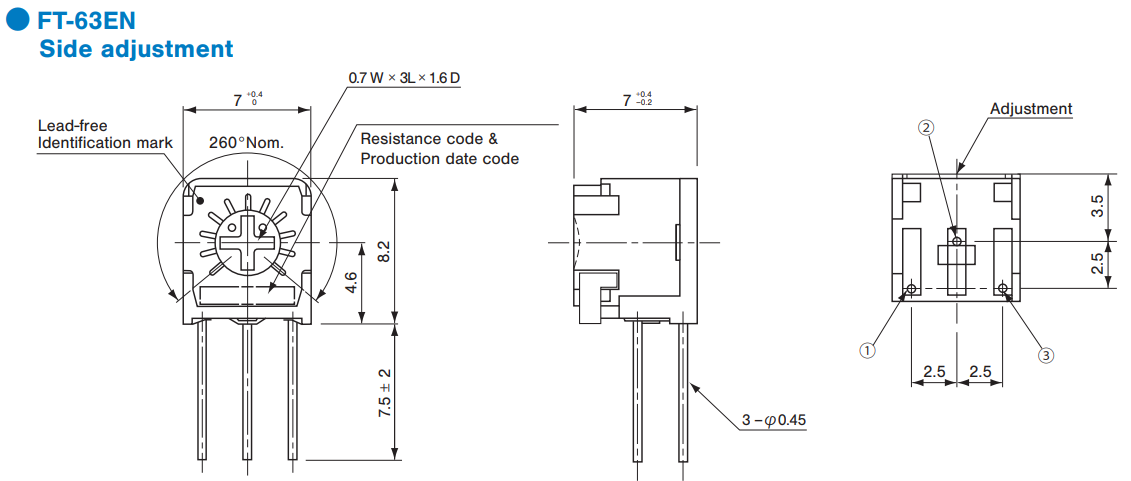

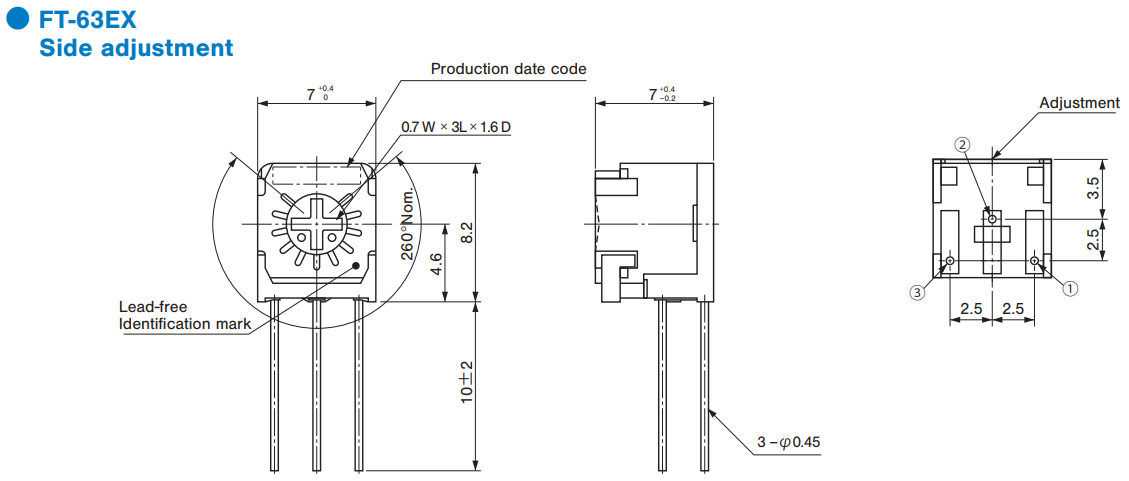

★ Terminals 1 & 3 position in N type is different from X type.
Packaging Specifications

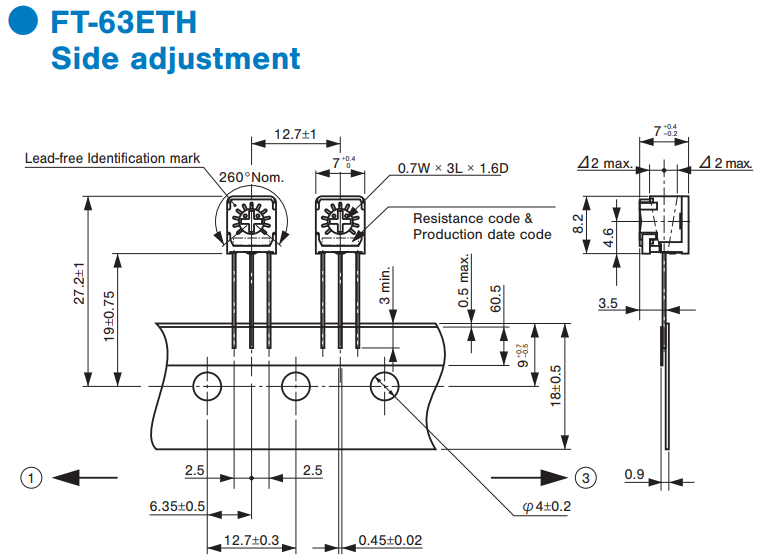

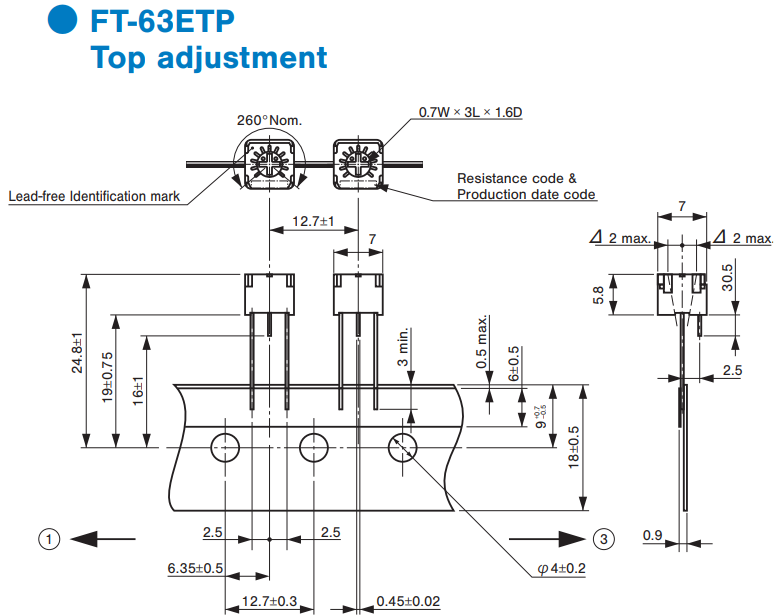

〈Taping packaging specifications〉
Taping version is packaged in 1000 pcs. per reel.
Orders will be accepted for units of 1000 pcs., i.e., 1000, 2000, 3000 pcs., etc.
Tape & reel version contains 1000 pcs. in one box.
〈Bulk pack specifications〉
Unit of bulk pack in a plastic bag is 100 pcs. per pack.
Boxing of bulk in a plastic bag is performed with 1000 pcs. per box.
Ammo Pack
Package size: 330 mm × 330 mm × 45 mm.
The leader and end of the tape have an empty part of minimum 300 mm respectively.
There are two tape outlets on the package for different terminal alignment directions, for which details refer to the sketch above.(e.g.)
When the tape is fed from the right outlet marked 3, #3 terminal comes out first.
Gross weight of the boxing version (ETV: Approx. 850 g , ETH:Approx. 940 g,ETP:Approx. 820 g, Approx. 940 g)
Environmental Data
