Mustang Toggle Switch


FeaturesFeatures
  • The 8B series is a sub-miniature toggle switch with a larger, rugged actuator and a larger bushing.

  • Suitable for applications where panel space is limited and a larger toggle is needed.

  • Terminal style : Solder, PC Straight

  • Epoxy resin case : UL94V-0 self-extinguishing epoxy.

  • Insulation between terminal and ground : 4 mm minimum. Prevention of flux entry The epoxy resin seal on bottom of the switch helps prevent the entry of solder and flux.

  • Insulation barrier : Insulation barrier design between poles helps prevent short-circuiting between poles ensuring high reliability.

  • UL Recognized product File No.E43275 CSA Certified product File No.LR38341

Part number designation

8B1011 - Z

Series

Actuator shape

B: Mustang toggle

No. of poles

1: 1 pole

2: 2 poles

3: 3 poles

4: 4 poles

Switching function

01: ON-ON

02: ON-OFF-ON

Terminal style

1: Solder

2: PC straight

Contact material / Plating

Blank:

Bs+Ag or Cu+Ag / Silver plated (Ag)

/ Silver plated (Ag)

Bs=Brass, Ag=Silver, Cu=Copper

◆Terminals

List of part numbers







Part No.No. of polesTerminalsSW functionCAD
Part No.:8B1011-Z 1 pole Solder ON-ON
Part No.:8B1012-Z 1 pole PC straight ON-ON
Part No.:8B2011-Z 2 poles Solder ON-ON
Part No.:8B2021-Z 2 poles Solder ON-OFF-ON
Part No.:8B2012-Z 2 poles PC straight ON-ON
Part No.:8B3011-Z 3 poles Solder ON-ON
Part No.:8B4011-Z 4 poles Solder ON-ON
☆: Semi-standard products /
★: Made to order products
Optional Accessories

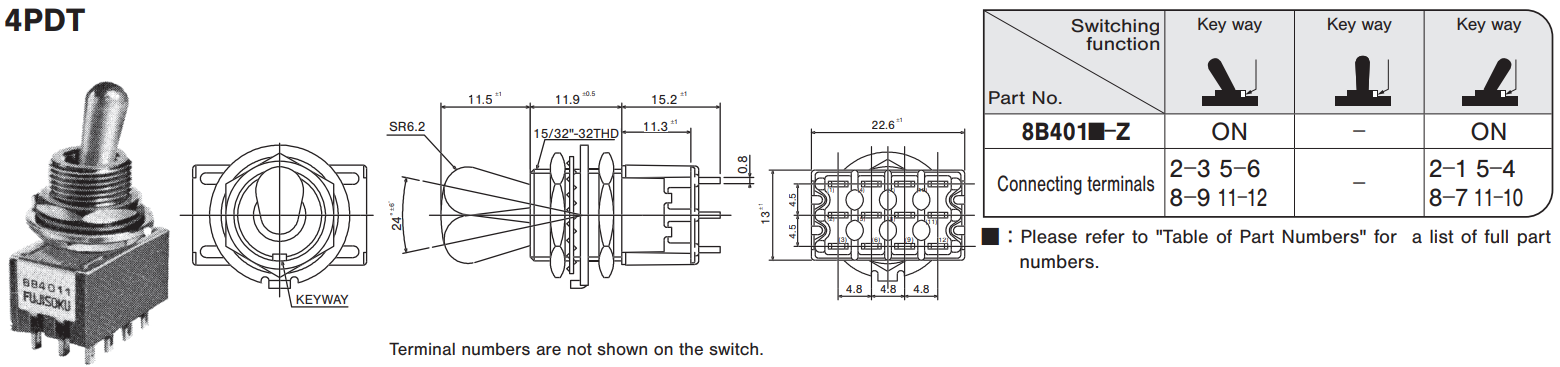

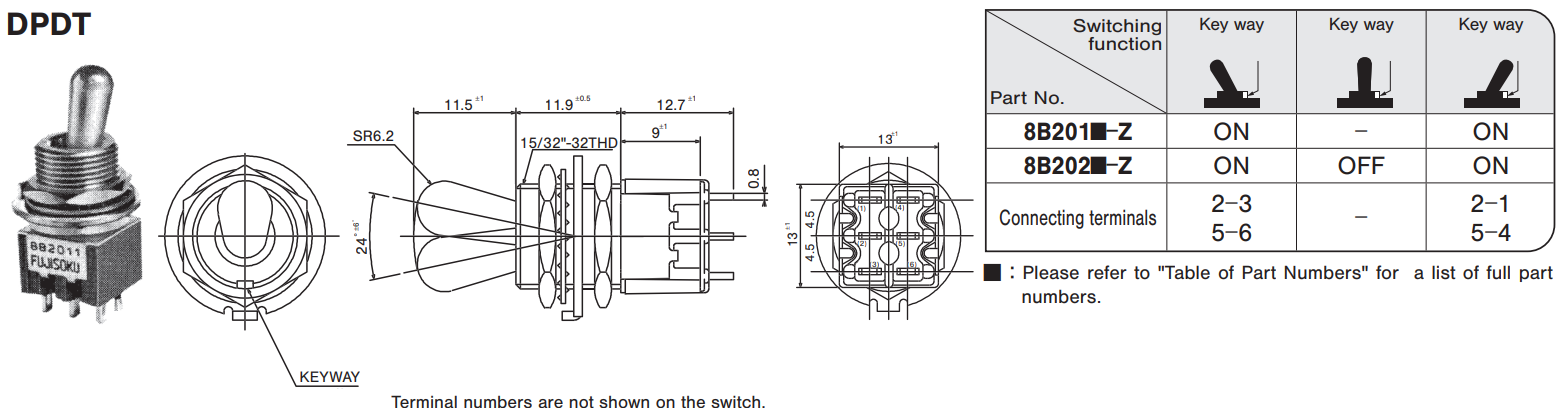

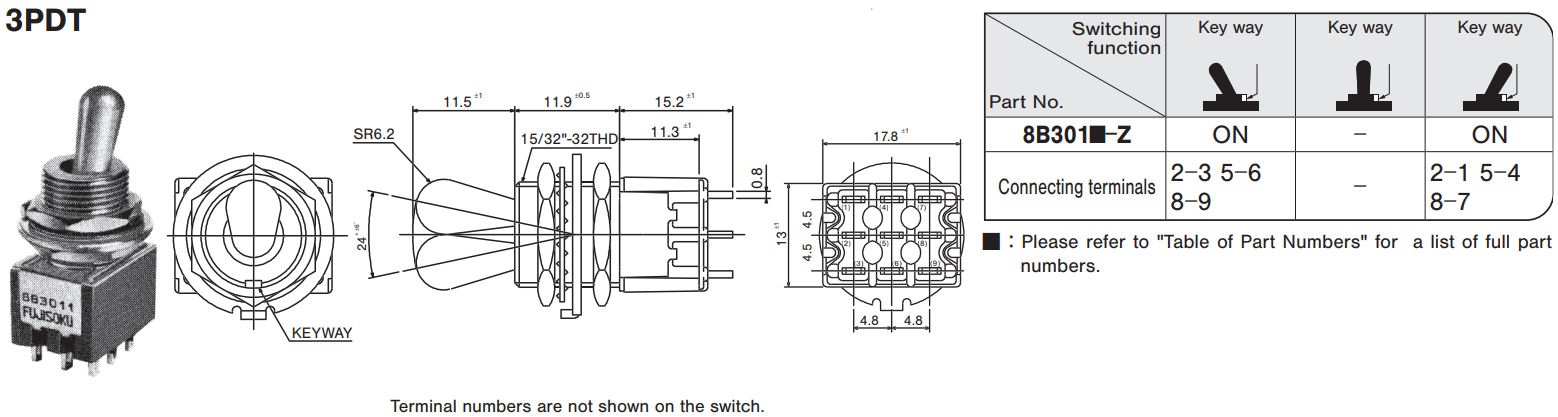

ActuatorPart No.ColorOuntline dimensions
Color Cap 140000470063 White
140000470108 Red
140000470064 Black

Common Specifications

Rating Max. AC125V 6A AC250V 3A DC30V 4A
Initial contact resistance 10mΩ Max. (DC2~4V 1A)
Initial dielectric strength AC1500V 1minute
Initial insulation resistance 1000MΩMin. ( DC500V)
Electrical life Alternate type:50,000cycles
Momentary type:25,000cycles
Operating temperature range -30~+85℃
Storage temperature range -40~+85℃

Precautions

Soldering Specifications

  • Manual soldering/Device :Solder iron ①420℃ Max. 3 sec. Max.
  • Auto soldering/275℃ Max. 6 sec. Max.
  • The above-stated soldering conditions shall apply only to switches with straight terminals. Auto soldering is not possible with right-angle terminals. Switches with right-angle terminals should be soldered manually according to the conditions specifi ed in (1) above.
  • When soldering two or more terminals to the common land, use the solder resist to isolate the terminals.。

Flux Cleaning

  • Solvent : Fluorine or Alcohol type.
  • 8A/B/C/D/E/F/J series are not washable. To wash the PC board, clean the soldering surface of the PC board with a brush so that the switch is not exposed to the cleaning solution.
  • Cleaning after soldering should be done after the terminal temperature falls to 90℃ or below, or after leaving the switch for fi ve minutes or longer at room temperature.

Mounting

  • Do not bend the terminals before mounting the switch on the PC board.
  • After mounting the switch, do not place the device in such a way that the device weight will be applied on to the actuator of the switch.
  • For switches with straight terminals, solder the switch on the PC board after fi xing the switch on the panel with a nut.

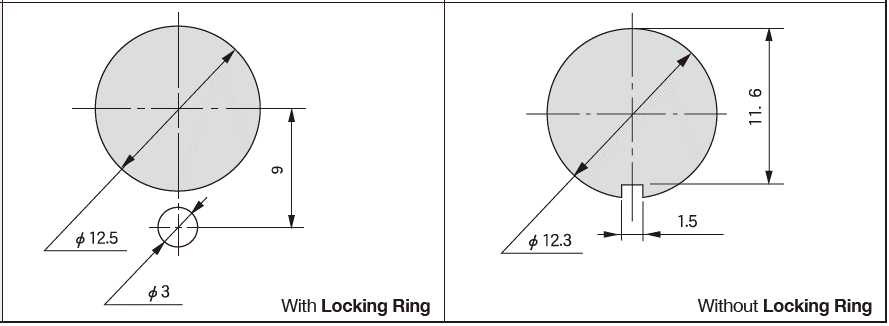

Panel Cut-Out Dimensions

  • With Locking Ring:Panel thickness 5.9 mm Max.
  • Without Locking Ring:Panel thickness 6.9 mm Max.

PC Hole Layouts

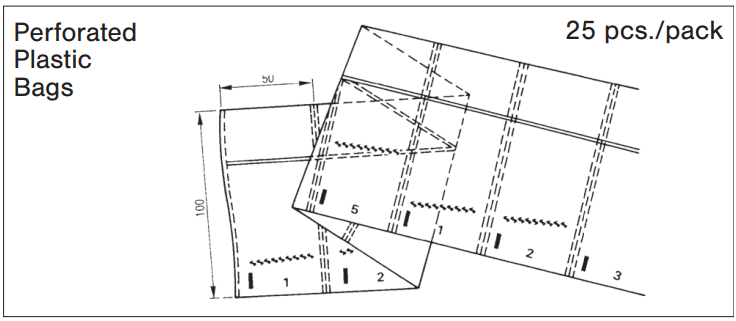

Standard Accessories

  • Numbers in the above chart show the quantities of each accessories enclosed with the switch.

8 Series Toggles Selection Table

Environmental Data
