Toggle switch 8F
- ●To buy this product, please go to the following Online Web stores.
Panel Seal Toggle Switch
-
The 8F series is a panel seal toggle switch with an O-ring to provide drip-proof and dust proof effect (corresponding to IP67 rating). Since a locking ring cannot be used because the panel seal is required, “D-cutting” is provided to the sleeve to prevent the switch from rotating. Note that the switch itself is not waterproof.
-
Suitable for applications where panel space is limited and a larger toggle is needed.
-
Terminal style : Solder, PC Straight
-
Contacts : Silver or gold.
-
Epoxy resin case : UL94V-0 self-extinguishing epoxy.
-
Insulation between terminal and ground : 4 mm minimum. Prevention of flux entry The epoxy resin seal on bottom of the switch helps prevent the entry of solder and flux.
-
Insulation barrier : Insulation barrier design between poles helps prevent short-circuiting between poles ensuring high reliability.
-
UL Recognized product File No.E43275 CSA Certified product File No.LR38341
Part Number Designation
| 8 | F | 1 | 01 | 1 | C | - Z |
|---|---|---|---|---|---|---|
|
Series |
Actuator shape F: Panel seal toggle |
No. of poles 1: 1 pole 2: 2 poles 4: 4 poles |
Switching function 01: ON-ON |
Terminal style 1: Solder 2: PC straight |
Contact material / Plating Blank: Bs+Ag or Cu+Ag / Silver plated (Ag) / Silver plated (Ag) C: Bs+Ag or Cu+Ag / Gold plated (Ni+Au) / Gold plated (Ni+Au) Bs=Brass, Ag=Silver, Cu=Copper, |
◆Terminals
List of Part Numbers
| Part No. | No. of poles | Terminals | SW function | CAD |
|---|---|---|---|---|
| Part No.：8F1011-Z | 1 pole | Solder | ON－ON | |
| Part No.：8F1011C-Z★ | 1 pole | Solder | ON－ON | |
| Part No.：8F1041-Z★ | 1 pole | Solder | (ON)－OFF－(ON) | |
| Part No.：8F1061-Z★ | 1 pole | Solder | ON－(ON) | |
| Part No.：8F1012-Z★ | 1 pole | PC | ON－ON | |
| Part No.：8F2011-Z☆ | 2 poles | Solder | ON－ON | |
| Part No.：8F2012-Z★ | 2 poles | PC | ON－ON | |
| Part No.：8F4011-Z★ | 4 poles | Solder | ON－ON |
★: Made to order products
Optional Accessories
| Actuator | Part No. | Color | Outline dimensions |
|---|---|---|---|
| Color Cap | 140000470030 | White |  |
| 140000470098 | Red | ||
| 140000470031 | Black | ||
| 140000470037 | Gray | ||
| 140000470038 | White |  |
|
| 140000470100 | Red | ||
| 140000470077 | Gray |
Common Specifications
| Rating Max. | Silver Contact:AC125V 6A AC250V 3A DC30V 4A Gold Contact:AC125V 6A AC250V 3A DC20V 25mA |
|---|---|
| Initial contact resistance | Silver Contact:10mΩ Max. （DC2～4V 1A） Gold Contact:20mΩ Max. （AC200μV 1.5mA） |
| Initial dielectric strength | AC1500V 1minute |
| Initial insulation resistance | 1000MΩMin. （ DC500V） |
| Electrical life | Alternate type:50,000cycles Momentary type:25,000cycles |
| Operating temperature range | －30～＋85℃ |
| Storage temperature range | －40～＋85℃ |
Outline Dimensions
(Unit：mm)
Precautions
Soldering Specifications
- Manual soldering/Device ：Solder iron ①420℃ Max. 3 sec. Max.
- Auto soldering/275℃ Max. 6 sec. Max.
- The above-stated soldering conditions shall apply only to switches with straight terminals. Auto soldering is not possible with right-angle terminals. Switches with right-angle terminals should be soldered manually according to the conditions specifi ed in (1) above.
- When soldering two or more terminals to the common land, use the solder resist to isolate the terminals.。
Flux Cleaning
- Solvent : Fluorine or Alcohol type.
- 8A/B/C/D/E/F/J series are not washable. To wash the PC board, clean the soldering surface of the PC board with a brush so that the switch is not exposed to the cleaning solution.
- Cleaning after soldering should be done after the terminal temperature falls to 90℃ or below, or after leaving the switch for fi ve minutes or longer at room temperature.
Mounting
- Do not bend the terminals before mounting the switch on the PC board.
- After mounting the switch, do not place the device in such a way that the device weight will be applied on to the actuator of the switch.
- For switches with straight terminals, solder the switch on the PC board after fi xing the switch on the panel with a nut.

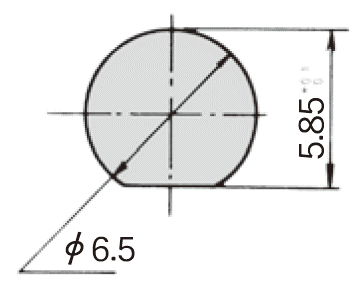

Panel Cut-Out Dimensions
Panel thickness 5 mm Max.
PC Hole Layouts
Standard Accessories
-
Numbers in the above chart show the quantities of each accessories enclosed with the switch.
8 Series Toggles Selection Table

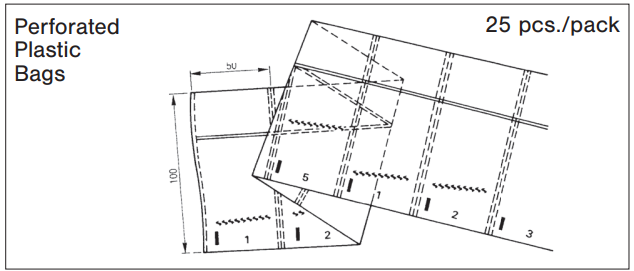

Packaging Specification
(Unit：mm)
Documents
Environmental Data
- ●The above contents and descriptions are subject to change without notice.
