Rotary coded switch S-4000
- ●To buy this product, please go to the following Online Web stores.
Small 4 mm size, Low Profile, High Density Board Mounting
- Small size of □ 4.8 mm makes it perfect for high density board mounting applications
- Compatible with most automatic pick & place machinery
- Gold plated contact provides excellent reliability
- Low profile design of 2.6 mm
Standard Specifications
| Circuit type | BCD (Real code) |
|---|---|
| Operating temperature range | −25 ~ 70 °C |
| Storage temperature range | −25 ~ 70 °C |
| Sealing | Non washable |
| Net weight | Approx. 0.12 g |
Electrical Characteristics
| Contact rating | Non-switching:DC50 V 100 mA Switching:DC2.4 V 100 mA |
|---|---|
| Contact resistance | 100 mΩ maximum |
| Insulation resistance | 100 MΩ (DC100 V) minimum |
| Dielectric strength | AC250 V, 60 s |
Mechanical Characteristics
| No. of positions | 10 |
|---|---|
| Adjustment torque | 10 mN·m {102 gf·cm} maximum |
| Stepping angle | 36° (10 positions) |
| Solderability | 245 ± 3 °C, 2 ~ 3 s |
| Soldering heat | Reflow：255 °C (Peak temperature) Manual soldering：350 ± 10 °C, 3 ~ 4 s |
| Shear (adhesion) | 5 N {0.51 kgf} 10 s |
| Substrate bending | Width 90 mm, bend 3 mm, 5 s, 1 time |
| Pull-off strength | 5 N {0.51 kgf} 10 s |
Environmental Characteristics
| Vibration | （Amplitude）1.5 mmor （Acceleration） 98 m/s2, 10-500-10 Hz, 3 directions for 2 h each |
|---|---|
| Shock | 490 m/s , 11 ms 6 directions for 3 times each |
| Load life | 10000 steps minimum DC2.4 V 100 mA |
| Humidity (Steady state) | 40 °C, Relative humidity 90 ~ 95 %,240 h |
| High temperature exposure | 70 °C, 96 h |
| Low temperature exposure | − 25 °C, 96 h |
| Thermal shock | − 25 (0.5 h) ~ 70 °C ( 0.5 h ), 5 cycles |
Part Number Designation
| S -4 | 0 | 1 | 0 | T | A |
|---|---|---|---|---|---|
|
Series name |
Shape of rotor 0：Without knob |
Code format 1：10 positions, real code |
Setting position 0：Top setting |
Form of packaging T：Taping (Reel) |
Shape of terminal A：J-hook |
List of Part Numbers
| BCD real code | Setting position | Shape of terminal | Form of packaging | Pieces in package | CAD |
|---|---|---|---|---|---|
| S-4010A | Top setting | J-hook | Bulk in plastic bag | 50 pcs./pack | |
| S-4010TA | Top setting | J-hook | Taping (Reel) | 500 pcs./reel | |
| S-4010B | Top setting | Gull wing | Bulk in plastic bag | 50 pcs./pack | |
| S-4010TB | Top setting | Gull wing | Taping (Reel) | 500 pcs./reel |
Code Format
| No. of positions | 10 positions | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Positions | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | ||
| Code | Real code | 8 | ● | ● | ||||||||
| 4 | ● | ● | ● | ● | ||||||||
| 2 | ● | ● | ● | ● | ||||||||
| 1 | ● | ● | ● | ● | ● | |||||||
●···Contact closed

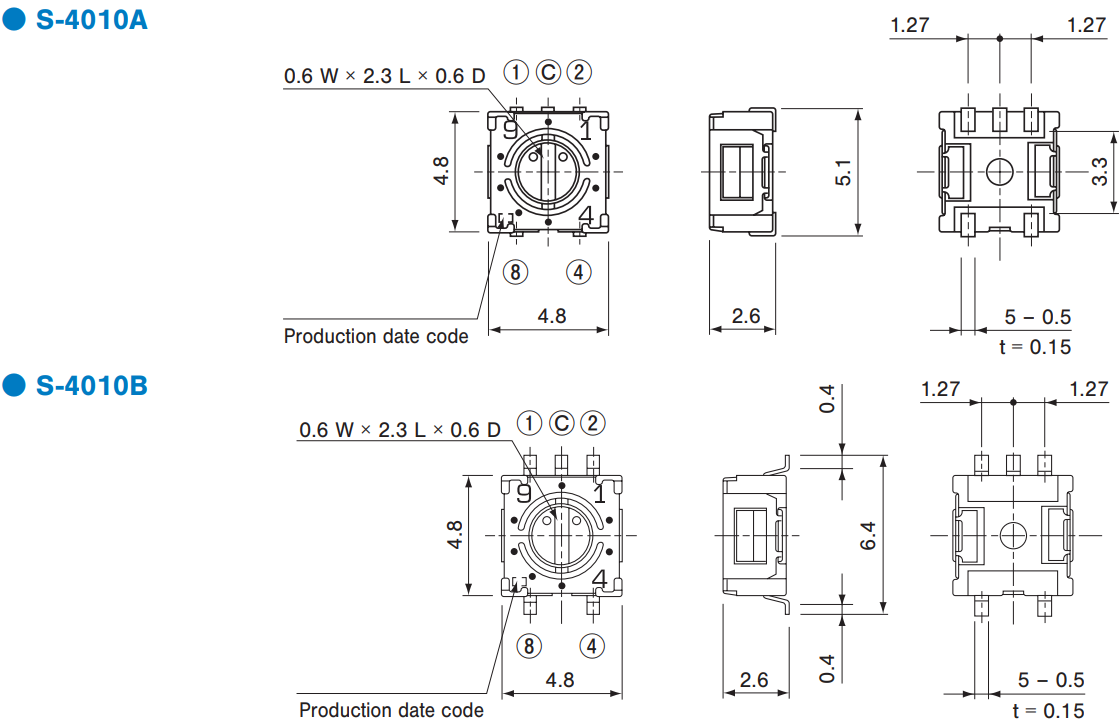

Outline Dimensions
(Unit:mm)

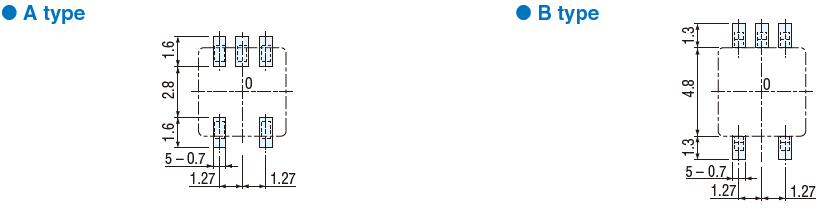

Recommended P.C.B. Pad Outline Dimensions
(Unit:mm)
Packaging specifications
〈Taping packaging specifications〉
● Taping version is packaged in 500 pcs. per reel. Orders will be accepted for units of 500 pcs., i.e., 500, 1000, 1500, pcs., etc.
● Taping version is boxed with one reel (500 pcs.).
● Maximum number of consecutive missing pieces=2. Leader length and reel dimension are shown in the diagrams below:
(Unit:mm)
-
● Embossed tape dimensions
-
● Reel dimensions (Conforms to JIS C 0806-3, In accordance with EIAJ ET-7200A)
-
● S-4010TA/TB
〈Bulk pack specifications〉
● The smallest unit of bulk pack in plastic bag is 10 pcs. per pack.
● Orders will be accepted for unit of minimum 10 pcs., i.e., 10, 20, 30 pcs., etc.
● Boxing of bulk in a plastic bag is performed with 50 pcs. (Standard 200 pcs.) per box.
Documents
Environmental Data
- ●The above contents and descriptions are subject to change without notice.
