Miniature DIP Rotary Coded Switch (7.5mm sq.)
FeaturesFeatures
- Switching rating: 30 mA at 15 VDC
- Miniature size (7.5mm sq.) designed for high density mount
- Process sealed
- Gold plated contacts
- Clearly visible legends and position indicator
- In this series, material data sheets ideal for REACH-SVHC
surveys etc. can be downloaded in chemSHERPA-AI format. - Download chemSHERPA-AI from the list of P/N below
Standard Specifications
| Rating | Switching: Max. 30mA 15VDC Min. 1μA 20mVDC Non-switching: 100mA 50VDC |
|---|---|
| Contact resistance | 100mΩ maximum |
| Dielectric strength | 250VAC, 60s |
| Insulation resistance | 1,000MΩ minimum（100VDC） |
| Load life | 20,000 steps 30mA 15VDC |
| Operating torque | 49mN・m 〔500gf・cm〕 maximum |
| Operating temperature range | －25～＋85℃ |
| Storage temperature range | －40～＋85℃ |
Handling Precautions
◆Soldering Specifications
Manual Soldering: 350 °C, 3 sec. Max.
Flow: 245~260 °C, Max., 3 to 5 seconds (One time) Total dip time within 10 sec.
◆Flux Cleaning
After soldering, wait until the switches cool down to room temperature (30 °C or below) before washing.
If the switches are cleaned while still above 30 °C, a vacuum will occur which will cause the cleaning solution to be sucked into the switches.
◆Switch Operation
Use a flat head screwdriver to set position of the actuator for knobless type.
Part Number Designation
| DR | S | 7 | 0 | 10 | C |
|---|---|---|---|---|---|
|
Series name |
Terminals S:
PC Straight
R:
PC right angle
|
Actuators (Shape of rotor) 7:
Screwdriver actuator (Without knob)
8:
Shaft actuator (With knob)
|
Circuits 0:
Real code
1:
Complementary code
|
Number of positions 10:
10 positions
16:
16 positions
|
Structure |
List of Part Numbers
CAD and chemSHERPA-AI (a material data sheet ideal for REACH surveys, etc. / version: 2.09.00) can be downloaded from the button for each P/N in the table below. *Need to log in to download.
| Part No. | Circuit (Code) | Setting position | Terminals | Shape of rotor | Packaging spec | Material data | CAD |
|---|---|---|---|---|---|---|---|
| DRS7010C | 10 positions, Real |
Top | Through hole | without knob |
Magazine, 50 pcs./stick |
||
| DRS7110C | 10 positions, Complementary |
Top | Through hole | without knob |
Magazine, 50 pcs./stick |
||
| DRS8010C | 10 positions, Real |
Top | Through hole | with knob |
Magazine, 50 pcs./stick |
||
| DRS8110C | 10 positions, Complementary |
Top | Through hole | with knob |
Magazine, 50 pcs./stick |
||
| DRS7016C | 16 positions, Real |
Top | Through hole | without knob |
Magazine, 50 pcs./stick |
||
| DRS7116C | 16 positions, Complementary |
Top | Through hole | without knob |
Magazine, 50 pcs./stick |
||
| DRS8016C | 16 positions, Real |
Top | Through hole | with knob |
Magazine, 50 pcs./stick |
||
| DRS8116C | 16 positions, Complementary |
Top | Through hole | with knob |
Magazine, 50 pcs./stick |
||
| DRR7010C | 10 positions, Real |
Side | Through hole | without knob |
Magazine, 50 pcs./stick |
||
| DRR7110C | 10 positions, Complementary |
Side | Through hole | without knob |
Magazine, 50 pcs./stick |
||
| DRR8010C | 10 positions, Real |
Side | Through hole | with knob |
Magazine, 50 pcs./stick |
||
| DRR8110C | 10 positions, Complementary |
Side | Through hole | with knob |
Magazine, 50 pcs./stick |
||
| DRR7016C | 16 positions, Real |
Side | Through hole | without knob |
Magazine, 50 pcs./stick |
||
| DRR7116C | 16 positions, Complementary |
Side | Through hole | without knob |
Magazine, 50 pcs./stick |
||
| DRR8016C | 16 positions, Real |
Side | Through hole | with knob |
Magazine, 50 pcs./stick |
||
| DRR8116C | 16 positions, Complementary |
Side | Through hole | with knob |
Magazine, 50 pcs./stick |
Outline Dimensions / Code Format
(Unit:mm)
Ⓔ：Terminal E is ground terminal ●…Contact closed

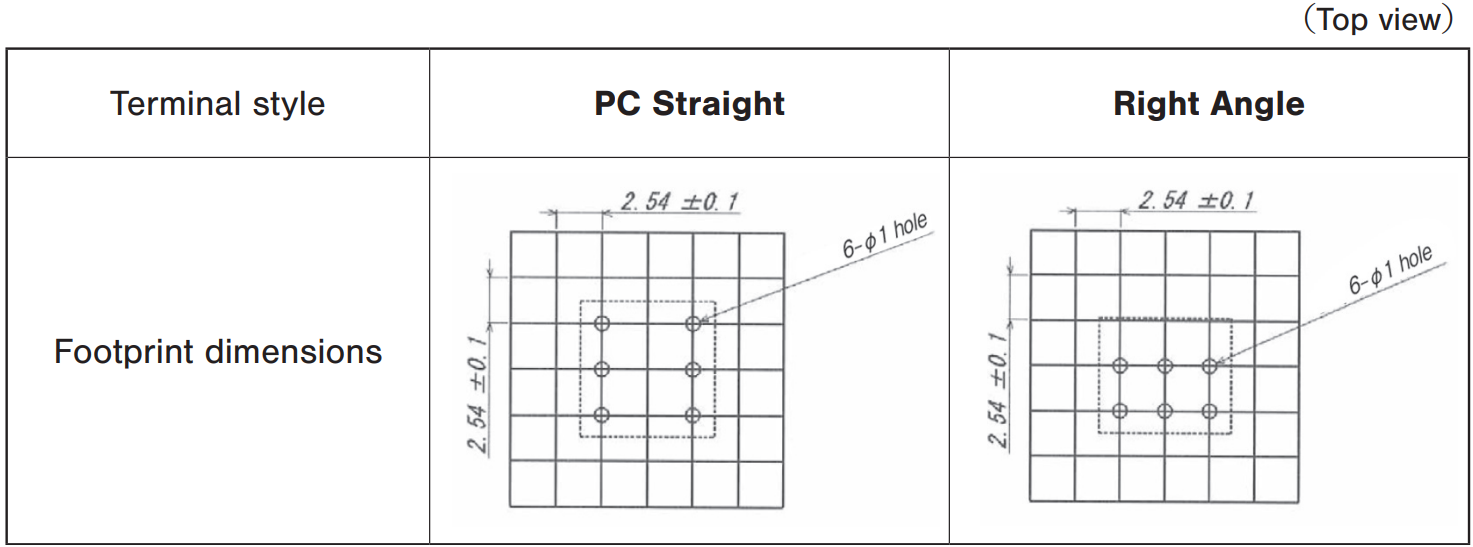

Size of P.C.B. Processing
(Unit:mm)
Packaging Specifications
(Unit:mm)
・Order in 50 piece increments.
Environmental Data
