Potentiometer JC30S/JC40S
- ●To buy this product, please go to the following Online Web stores.
Long life of 30 million cycles
- Compact
- Cost effective (JC22E) in house comparison
- Long life
- High following characteristics
- High resolution (Essentially infinite)
- RoHS compliant
STANDARD SPECIFICATIONS
| Item | Single turn | |
|---|---|---|
| JC30S | JC40S | |
| Nominal resistance value | Refer to LIST OF PART NUMBERS | |
| Resistance torelance | ± 15% | ± 15% |
| Resolution | Essentially infinite | |
| Independent linearity | ± 0.5% | ± 0.3% |
| Effective electrical angle | 343° ± 5° | 345° ± 5° |
| Mechanical angle | 360° continuous | |
| Power rating (at 40 °C) | 0.7W | 1.5W |
| Dielectric strength | 1000Vrms 1 min | |
| Insulation resistance | 1000MΩ minimum (at DC500 V) | |
| Rotational torque | 1.18 {12}mN·m {gf·cm} maximum | 1.47 {15}mN·m {gf·cm} maximum |
| Temp. coefficient of resistance | ± 400ppm/°C | |
| Operating temp. range | − 40 ~ 85°C | |
| Maximum rotational speed | 300 min-1 | 300 min-1 |
| Rotational life (cycles) | 30 million | |
| Output smoothness | 0.1 % maximum | |
| Net weight | Approx. 24g | Approx. 56g |
| Protection grade | IP40 | |

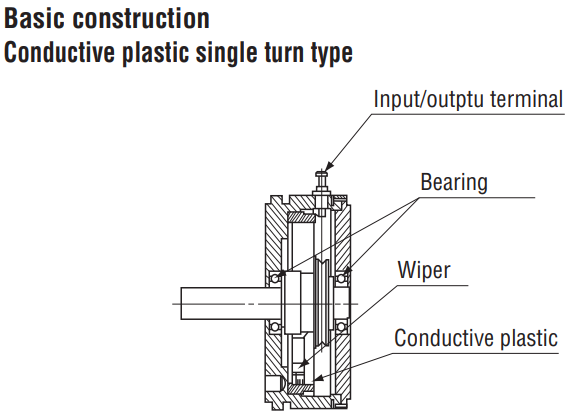

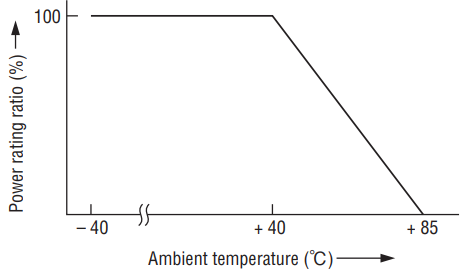

RATED POWER DERATING CURVE
|
|
PART NUMBER DESIGNATION
| JC30S | 2K | １% |
|---|---|---|
|
Series name JC30S:Linear φ30mm |
Nominal resistance value（Ω） 200, 500, 1 k, 2 k, 5 k, 10 k, 20 k |
Independent linearity 0.3%:±0.3 % |
LIST OF PART NUMBERS
| Part number | Size | Nominal resistance value | Independent linearity |
|---|---|---|---|
| JC30S 500 0.5 % | φ 30 mm | 500 Ω | ± 0.5 % |
| JC30S 1 k 0.5 % | 1 kΩ | ||
| JC30S 2 k 0.5 % | 2 kΩ | ||
| JC30S 5 k 0.5 % | 5 kΩ | ||
| JC30S 10 k 0.5 % | 10 kΩ | ||
| JC30S 20 k 0.5 % | 20 kΩ | ||
| JC40S 500 0.3 % | φ 40 mm | 500 Ω | ± 0.3 % |
| JC40S 1 k 0.3 % | 1 kΩ | ||
| JC40S 2 k 0.3 % | 2 kΩ | ||
| JC40S 5 k 0.3 % | 5 kΩ | ||
| JC40S 10 k 0.3 % | 10 kΩ | ||
| JC40S 20 k 0.3 % | 20 kΩ |
OUTLINE DIMENSIONS
(Unit : mm)

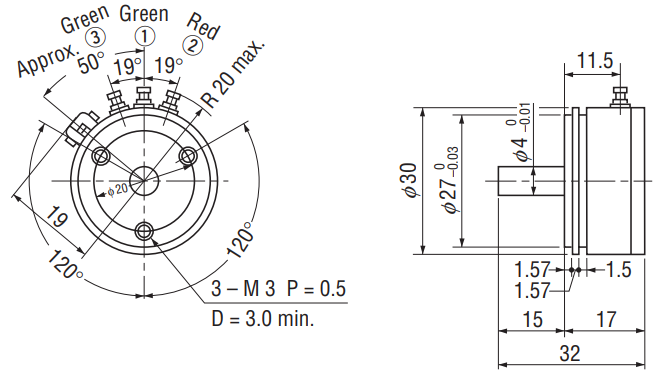

●JC30S

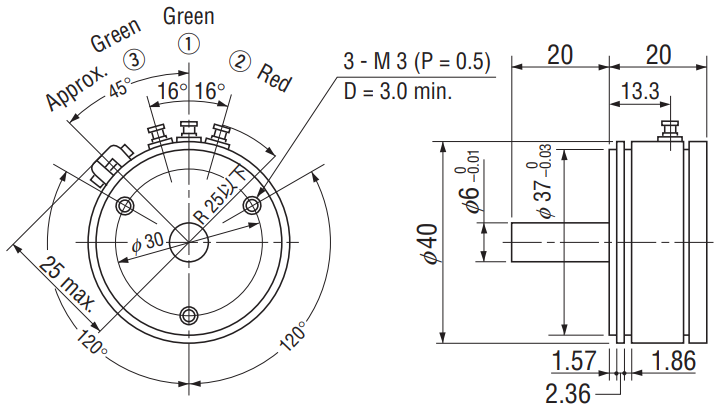

●JC40S
