Analog dial H-22
-
●To buy this product, please contact Sales Reps, Distributors.
Multi-turn small analog dial
FeaturesFEATURES
-
For use with precision potentiometers or other rotating devices, up to 15 turns
-
Compact - requires minimal panel space (22.2 mm diameter requirement)
Characteristics
| Number of Turns | 15 Turns |
|---|---|
| Minor Scale Division | 1/500 |
| Applicable Plate Thinckness | 1.6~3 mm |
| Net weight | Approx. 15 g |
| Applicable Pot. | HP-18 |

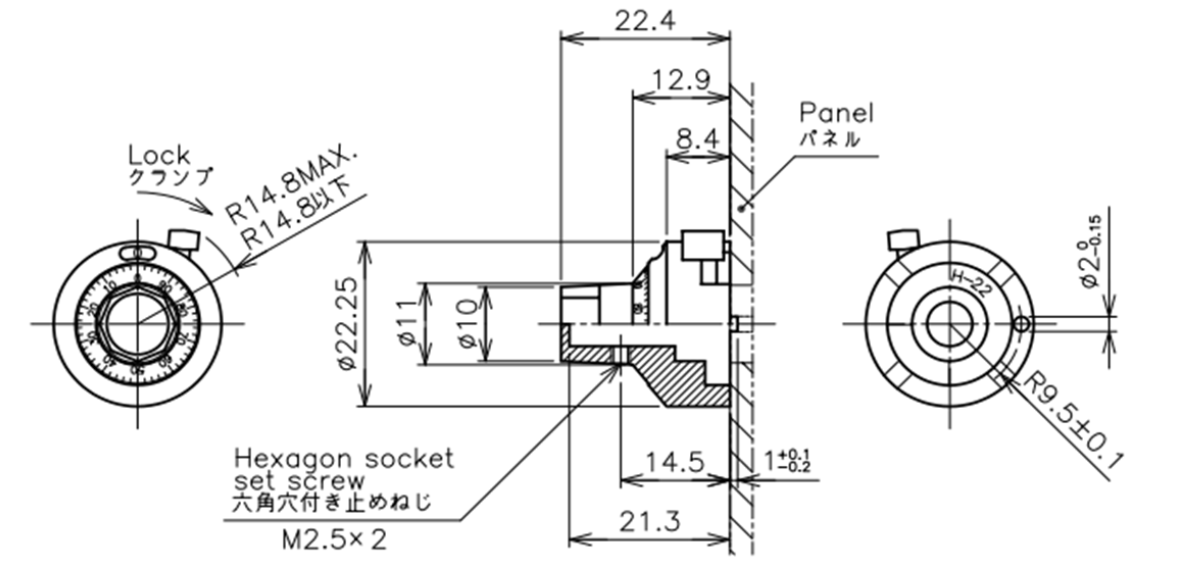

Outline dimensions
(Unit:mm)
Mounting
(Unit:mm)
・Applicable Plate Thinckness:1.6～3 mm
Accessories
Hexagonal wrench for set screw : 1pc
Antirotation device nut : 1pc (If H-22 is used with HP-18, please do not use it.)
Handling Instruction
This dial is designed for being mounted on potentiometer only and then being rotated by hand.
Please do not rotate dial at high speed by using motors.
