Tactile switch CF-CA
- ●Um einen Kauf zu tätigen, wenden Sie sich an die Verteiler
oder nutzen Sie den stehenden Online-Shops unten.
Verkaufskanal Überprüfen Sie die Verteiler.- VERKAUFSKANALKlicken Sie hier, um den Verteiler zu überprüfen.
Right Angle Tactile Switches
- Right Angle Tactile Switch
- Rich in Variation (Actuator Length, With/Without Support Terminal)
- Silver-Plated / Gold-Plated Contacts
- Resin Actuator
- Washable
Specifications
| Max Rating | 1VA MAX （32VDC max. 50mA max.） |
|---|---|
| Min Rating | Silver plated: 5VDC 1mA Gold plated: 5VDC 10μA |
| Initial contact resistance | 100mΩ max. |
| Dielectric strength | 250VAC（50〜60Hz）1 minute |
| Initial Insulation resistance | 100MΩmin.（100VDC） |
| Stroke | 0.25mm |
| Operating force | 3±1.5N ｛305±153g｝ |
| Electrical life | max. Rating 100,000 cycles. |
| Operating temperature range ー | -40〜＋90℃ |
| Storage temperature range | -40〜＋90℃ |
Part Numbering
| CF-CA - | 1 | C | B4 - | P4 | 1 | 2 | T |
|---|---|---|---|---|---|---|---|
|
Series code |
Number of poles 01: 1 bit |
Switching function C: OFF-（ON） |
Terminal style B4: Gull wing R/A |
Actuator shape P1: Resin button 1.1mm P3: Resin button 4.0mm |
Support terminal 0: Without |
Contact material 1: Silver plated |
Packaging spec T:Taping |
List of part numbers
| Part number | Number of poles | Switching function | Contact material | Actuator shape | Terminal | Pieces in package | CAD |
|---|---|---|---|---|---|---|---|
| CF-CA-1CB4-P211T | 1 bit | OFFー（ON） | Silver plated | Resin button 2.4mm | R/A With Support terminal | 500pcs./reel | |
| CF-CA-1CB4-P101T | 1 bit | OFFー（ON） | Silver plated | Resin button 1.1mm | R/A Without Support terminal | 500pcs./reel | |
| CF-CA-1CB4-P111T | 1 bit | OFFー（ON） | Silver plated | Resin button 1.1mm | R/A With Support terminal | 500pcs./reel | |
| CF-CA-1CB4-P201T | 1 bit | OFFー（ON） | Silver plated | Resin button 2.4mm | R/A Without Support terminal | 500pcs./reel | |
| CF-CA-1CB4-P401T | 1 bit | OFFー（ON） | Silver plated | Resin button 4.0mm | R/A Without Support terminal | 500pcs./reel | |
| CF-CA-1CB4-P411T | 1 bit | OFFー（ON） | Silver plated | Resin button 4.0mm | R/A With Support terminal | 500pcs./reel | |
| CF-CA-1CB4-P101 | 1 bit | OFFー（ON） | Silver plated | Resin button 1.1mm | R/A Without Support terminal | 20pcs./pack | |
| CF-CA-1CB4-P111 | 1 bit | OFFー（ON） | Silver plated | Resin button 1.1mm | R/A With Support terminal | 20pcs./pack | |
| CF-CA-1CB4-P201 | 1 bit | OFFー（ON） | Silver plated | Resin button 2.4mm | R/A Without Support terminal | 20pcs./pack | |
| CF-CA-1CB4-P211 | 1 bit | OFFー（ON） | Silver plated | Resin button 2.4mm | R/A With Support terminal | 20pcs./pack | |
| CF-CA-1CB4-P401 | 1 bit | OFFー（ON） | Silver plated | Resin button 4.0mm | R/A Without Support terminal | 20pcs./pack | |
| CF-CA-1CB4-P411 | 1 bit | OFFー（ON） | Silver plated | Resin button 4.0mm | R/A With Support terminal | 20pcs./pack | |
| CF-CA-1CB4-P102T | 1 bit | OFFー（ON） | Gold plated | Resin button 1.1mm | R/A Without Support terminal | 500pcs./reel | |
| CF-CA-1CB4-P112T | 1 bit | OFFー（ON） | Gold plated | Resin button 1.1mm | R/A With Support terminal | 500pcs./reel | |
| CF-CA-1CB4-P202T | 1 bit | OFFー（ON） | Gold plated | Resin button 2.4mm | R/A Without Support terminal | 500pcs./reel | |
| CF-CA-1CB4-P212T | 1 bit | OFFー（ON） | Gold plated | Resin button 2.4mm | R/A With Support terminal | 500pcs./reel | |
| CF-CA-1CB4-P402T | 1 bit | OFFー（ON） | Gold plated | Resin button 4.0mm | R/A Without Support terminal | 500pcs./reel | |
| CF-CA-1CB4-P412T | 1 bit | OFFー（ON） | Gold plated | Resin button 4.0mm | R/A With Support terminal | 500pcs./reel | |
| CF-CA-1CB4-P102 | 1 bit | OFFー（ON） | Gold plated | Resin button 1.1mm | R/A Without Support terminal | 20pcs./pack | |
| CF-CA-1CB4-P112 | 1 bit | OFFー（ON） | Gold plated | Resin button 1.1mm | R/A With Support terminal | 20pcs./pack | |
| CF-CA-1CB4-P202 | 1 bit | OFFー（ON） | Gold plated | Resin button 2.4mm | R/A Without Support terminal | 20pcs./pack | |
| CF-CA-1CB4-P212 | 1 bit | OFFー（ON） | Gold plated | Resin button 2.4mm | R/A With Support terminal | 20pcs./pack | |
| CF-CA-1CB4-P402 | 1 bit | OFFー（ON） | Gold plated | Resin button 4.0mm | R/A Without Support terminal | 20pcs./pack | |
| CF-CA-1CB4-P412 | 1 bit | OFFー（ON） | Gold plated | Resin button 4.0mm | R/A With Support terminal | 20pcs./pack |

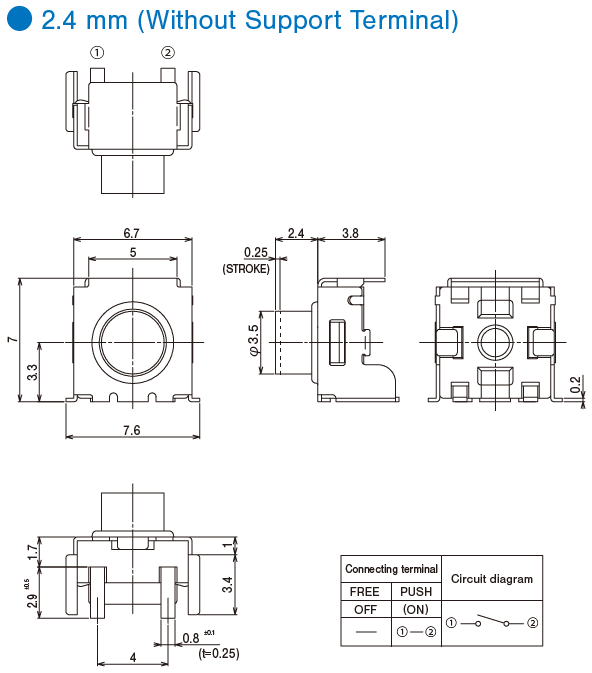

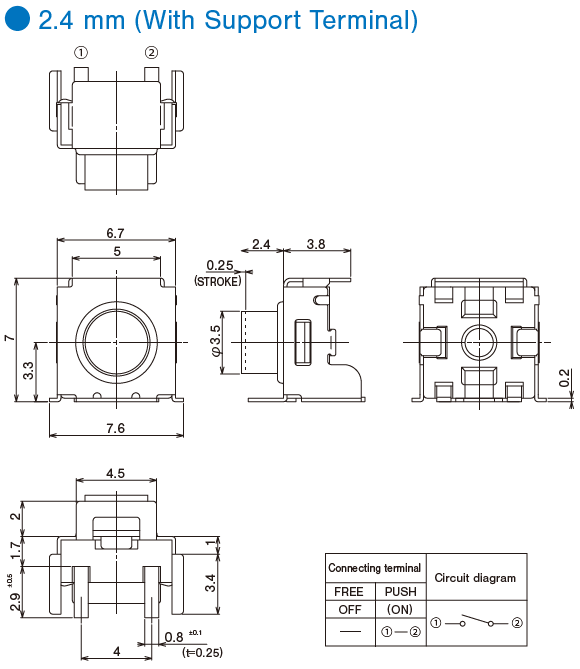

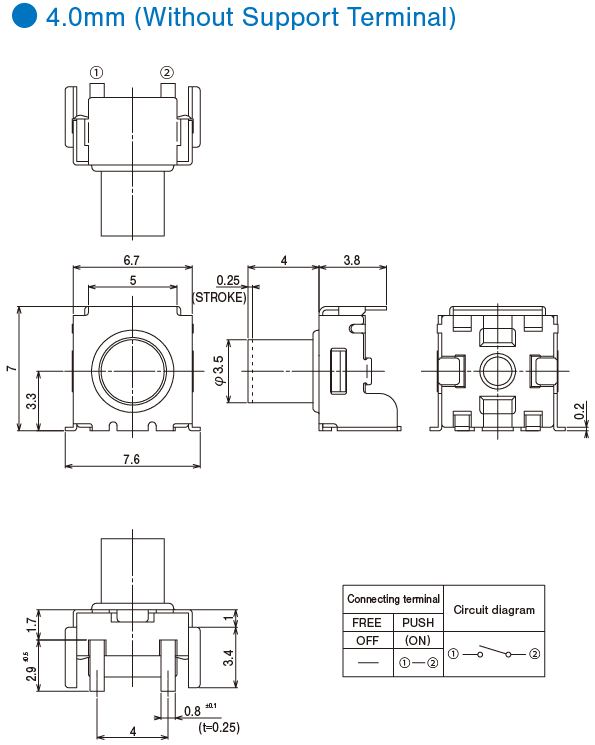

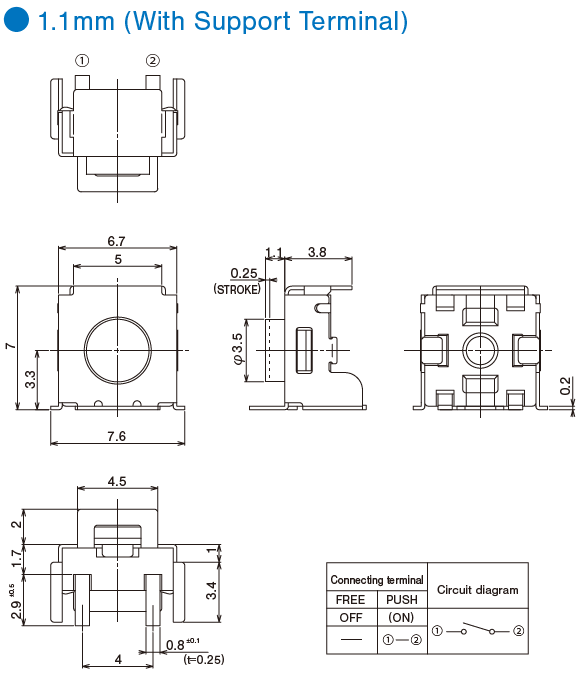

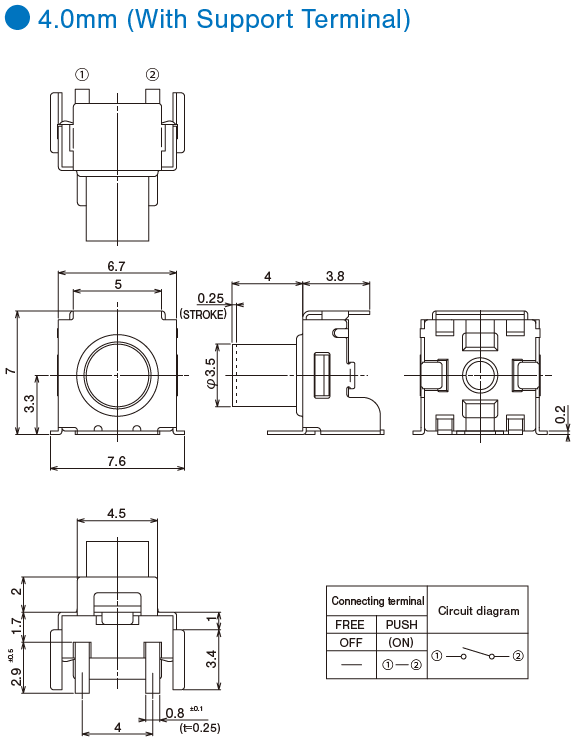

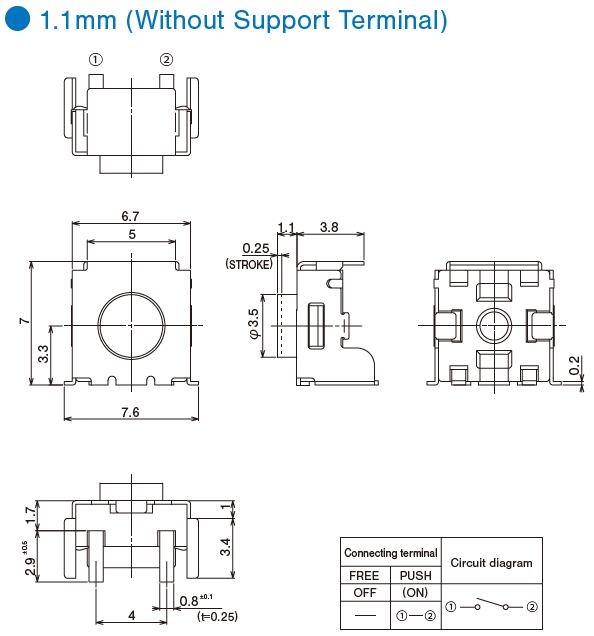

Outline Dimensions
(Unit:mm)
PC Hole Layouts
Soldering Specifications
（1）Reflow Soldering
●Apply reflow soldering up to 2 times max.
（2）Manual Soldering
Device : Soldering iron
350°C ±10°C, Max.; 3 seconds, Max.
Flux Cleaning
- For the solvent, use water or alcohol. In addition, pay careful attention to use the solvent.
- The cleaning method is limited to immersion cleaning only. The cleaning time is 2 minutes, max, but be sure to minimize the time as much as possible.
- To clean the switch after soldering, wait until the switch temperature has cooled down to room temperature (30℃ or below).
- The product must be dried suffi ciently after cleaning.Improper drying may result in fl uctuation in torque or electrical damage.
Packaging Specification
(1) Taping
Packaging quantity is 500 pcs. per reel. Each reel is packed in a box.
The maximum number of consecutive missing pieces shall be two.
The following illustration shows the leader length, empty portion and the product indication method.
(Unit:mm)
Embossed tape dimensions
-
<Tape dimensions＞
-
＜Reel dimensions＞
（2）Packaging quantity is 20pcs per bag. Please order in increments of 20pcs.
