トグルスイッチ ET

お問い合わせ

●お求めの際は、セールスネットワークまたは次のWeb通販サイトをご利用ください。

小形トグルスイッチ

FeaturesFeatures

ET小形トグルスイッチは電気用品安全法の対象品種はすべて型式認可を取得しております。
ボックスは、耐熱性、耐アーク性、耐トラッキング性に優れた自己消火性フェノール樹脂を使用し、さらにチャタリング、バウンシング時間を極力低減させた接触構造によりアークによる絶縁劣化を防止するよう設計された高性能スイッチです。

型式表示

E	T	2	25	K	12	Z
シリーズ名	操作部形状	極数 01: 1 bit 02: 2 bits 03: 3 bits 04: 4 bits 06: 6 bits	電流容量数字:AC125V / AC250 03: 3A / - 05: 5A / 3A 06: 6A / (2A) 10: 10A / (7A) 15: 15A / 10A 20: 20A / 12A 25: 25A / 15A 30: 30A / (25A)	スイッチ特性 A /K: ON-OFF C /M: OFF- (ON) D/V/N: ON- ON E /P : ON- OFF- ON F /R: ON- (ON) G /S: (ON) -OFF- (ON) H : ON -OFF- (ON) PA: ON -OFF- ON	端子形状なし: タブ端子＃ 250 10: ねじ端子 12: はんだ端子 13: プレート取り付け形はんだ端子

シリーズ名

操作部形状

極数

01: 1 bit
02: 2 bits

03: 3 bits

04: 4 bits
06: 6 bits

電流容量

数字:AC125V / AC250

03: 3A / -

05: 5A / 3A

06: 6A / (2A)

10: 10A / (7A)

15: 15A / 10A

20: 20A / 12A

25: 25A / 15A

30: 30A / (25A)

スイッチ特性

A /K: ON-OFF

C /M: OFF- (ON)

D/V/N: ON- ON

E /P : ON- OFF- ON

F /R: ON- (ON)

G /S: (ON) -OFF- (ON)

H : ON -OFF- (ON)

PA: ON -OFF- ON

端子形状

なし: タブ端子＃ 250

10: ねじ端子

12: はんだ端子

13: プレート取り付け形はんだ端子

型式＆仕様一覧表

型式	端子形状	定格	初期接触抵抗	耐電圧	絶縁抵抗	電気的寿命	CAD

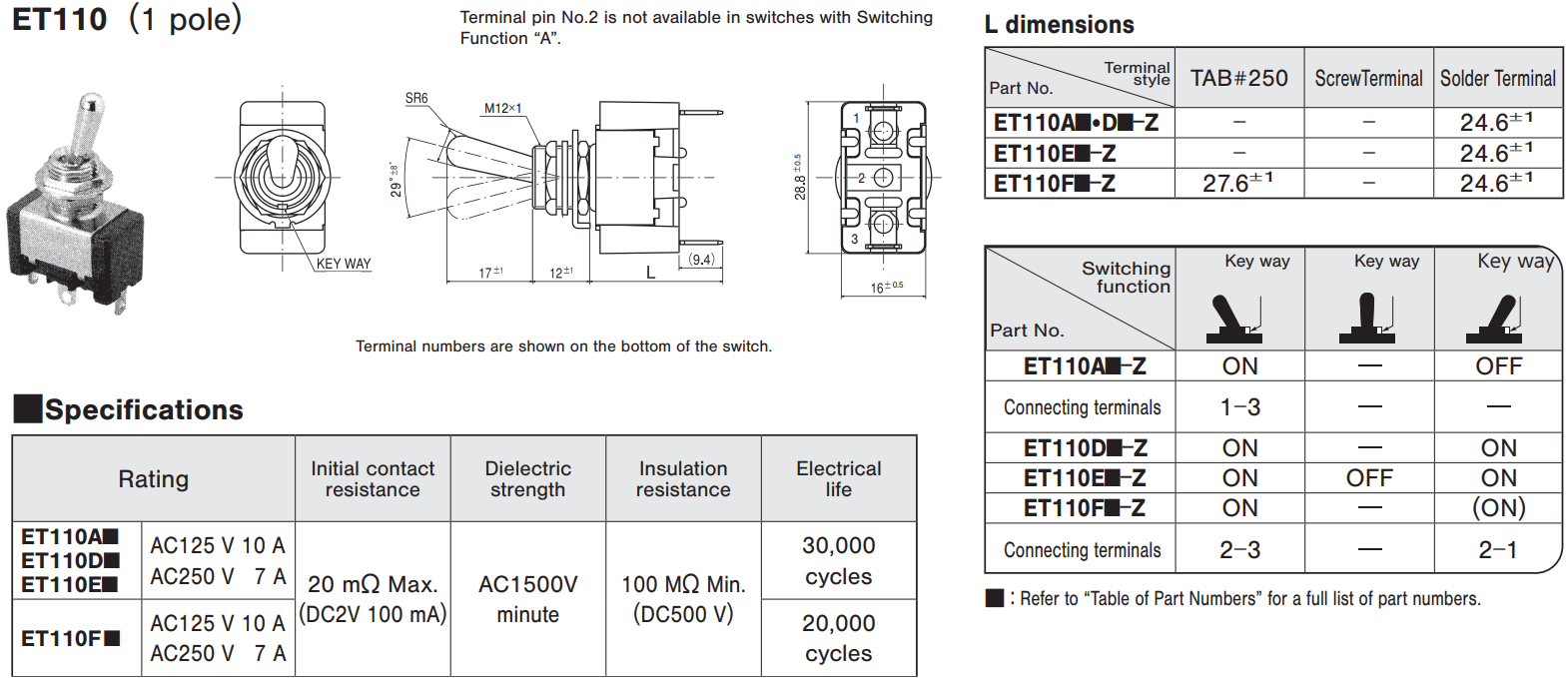

ET110F-Z^★	TAB #250	125 VAC 10 A / 250 VAC 7 A	20 mΩ Max. (2 VDC 100 mA)	1500 VAC 1 minute	100 MΩ Min. (500 VDC)	20,000 cycles	3D CAD (Any Model)

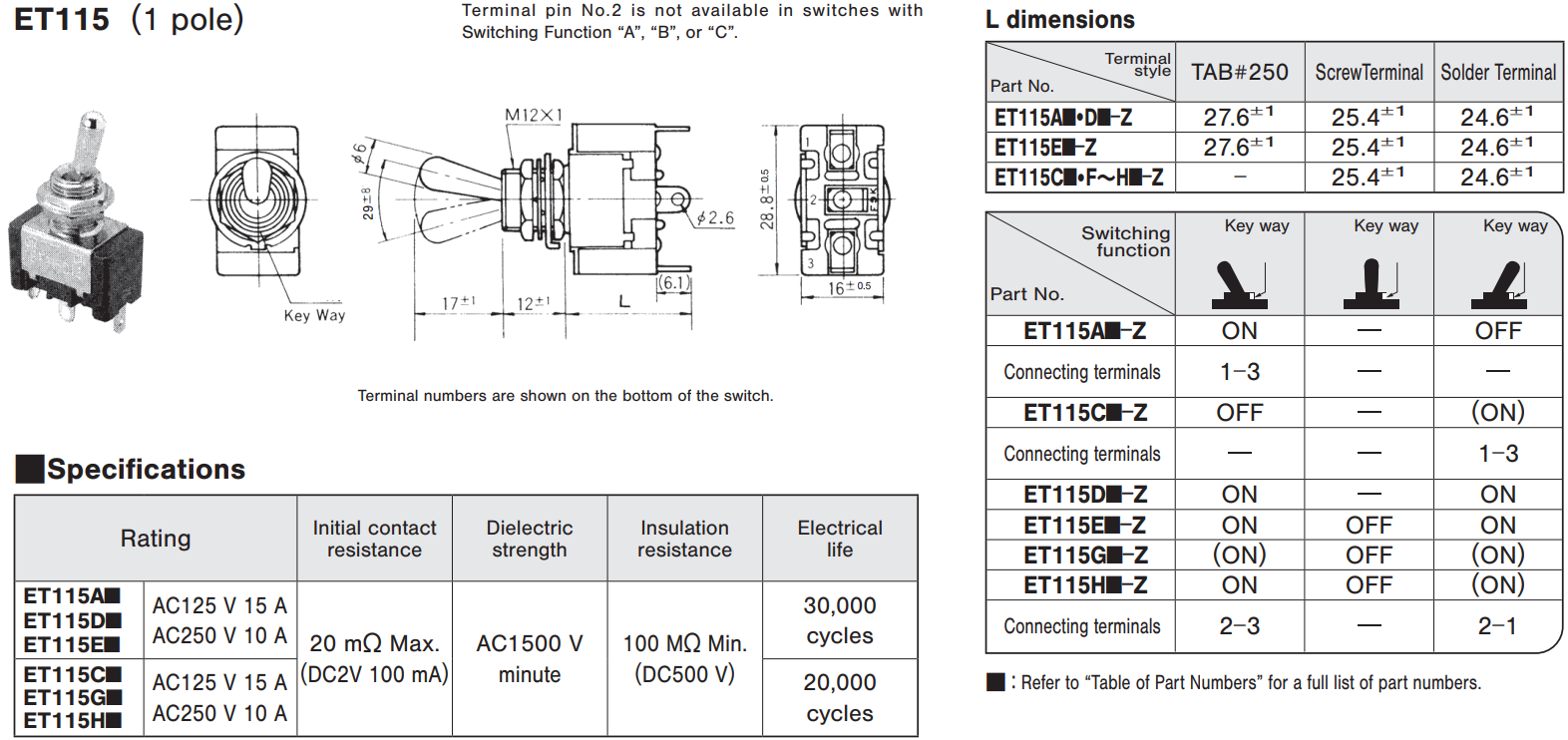

ET115A-Z^★	TAB #250	125 VAC 15 A / 250 VAC 10 A	20 mΩ Max. (2 VDC 100 mA)	1500 VAC 1 minute	100 MΩ Min. (500 VDC)	30,000 cycles	3D CAD (Any Model)
ET115D-Z^★	TAB #250	125 VAC 15 A / 250 VAC 10 A	20 mΩ Max. (2 VDC 100 mA)	1500 VAC 1 minute	100 MΩ Min. (500 VDC)	30,000 cycles	3D CAD (Any Model)
ET115A10-Z^☆	Screw	125 VAC 15 A / 250 VAC 10 A	20 mΩ Max. (2 VDC 100 mA)	1500 VAC 1 minute	100 MΩ Min. (500 VDC)	30,000 cycles	3D CAD (Any Model)

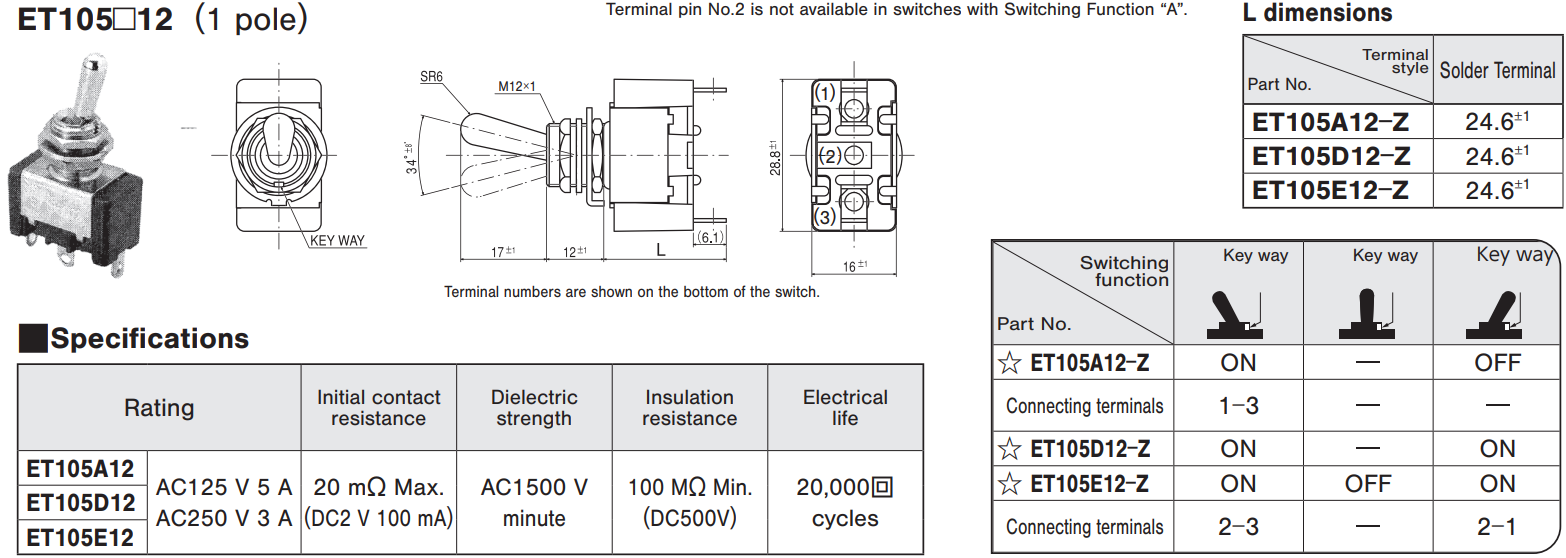

ET105A12-Z^☆	Solder	125 VAC 5 A / 250 VAC 3 A	20 mΩ Max. (2 VDC 100 mA)	1500 VAC 1 minute	100 MΩ Min. (500 VDC)	20,000 cycles	3D CAD (Any Model)
ET105D12-Z^☆	Solder	125 VAC 5 A / 250 VAC 3 A	20 mΩ Max. (2 VDC 100 mA)	1500 VAC 1 minute	100 MΩ Min. (500 VDC)	20,000 cycles	3D CAD (Any Model)
ET105E12-Z^☆	Solder	125 VAC 5 A / 250 VAC 3 A	20 mΩ Max. (2 VDC 100 mA)	1500 VAC 1 minute	100 MΩ Min. (500 VDC)	20,000 cycles	3D CAD (Any Model)
ET110A12-Z^☆	Solder	125 VAC 10 A / 250 VAC 7 A	20 mΩ Max. (2 VDC 100 mA)	1500 VAC 1 minute	100 MΩ Min. (500 VDC)	30,000 cycles	3D CAD (Any Model)
ET110D12-Z^☆	Solder	125 VAC 10 A / 250 VAC 7 A	20 mΩ Max. (2 VDC 100 mA)	1500 VAC 1 minute	100 MΩ Min. (500 VDC)	30,000 cycles	3D CAD (Any Model)
ET110E12-Z^★	Solder	125 VAC 10 A / 250 VAC 7 A	20 mΩ Max. (2 VDC 100 mA)	1500 VAC 1 minute	100 MΩ Min. (500 VDC)	30,000 cycles	3D CAD (Any Model)
ET115A12-Z	Solder	125 VAC 15 A / 250 VAC 10 A	20 mΩ Max. (2 VDC 100 mA)	1500 VAC 1 minute	100 MΩ Min. (500 VDC)	30,000 cycles	3D CAD (Any Model)
ET115C12-Z^★	Solder	125 VAC 15 A / 250 VAC 10 A	20 mΩ Max. (2 VDC 100 mA)	1500 VAC 1 minute	100 MΩ Min. (500 VDC)	20,000 cycles	3D CAD (Any Model)
ET115E12-Z^★	Solder	125 VAC 15 A / 250 VAC 10 A	20 mΩ Max. (2 VDC 100 mA)	1500 VAC 1 minute	100 MΩ Min. (500 VDC)	30,000 cycles	3D CAD (Any Model)
ET115G12-Z^★	Solder	125 VAC 15 A / 250 VAC 10 A	20 mΩ Max. (2 VDC 100 mA)	1500 VAC 1 minute	100 MΩ Min. (500 VDC)	20,000 cycles	3D CAD (Any Model)
ET115H12-Z^★	Solder	125 VAC 15 A / 250 VAC 10 A	20 mΩ Max. (2 VDC 100 mA)	1500 VAC 1 minute	100 MΩ Min. (500 VDC)	20,000 cycles	3D CAD (Any Model)

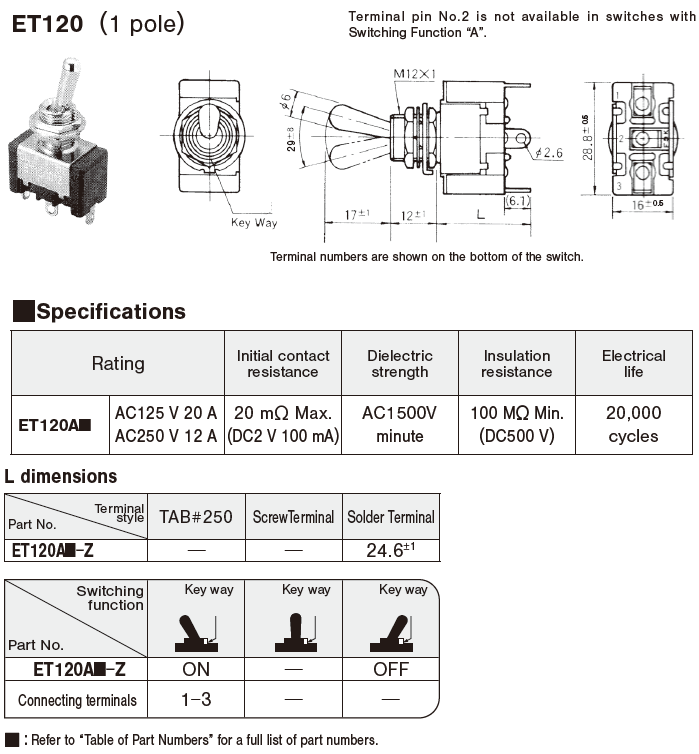

ET120A12-Z^☆	Solder	125 VAC 20 A / 250 VAC 12 A	20 mΩ Max. (2 VDC 100 mA)	1500 VAC 1 minute	100 MΩ Min. (500 VDC)	20,000 cycles	3D CAD (Any Model)

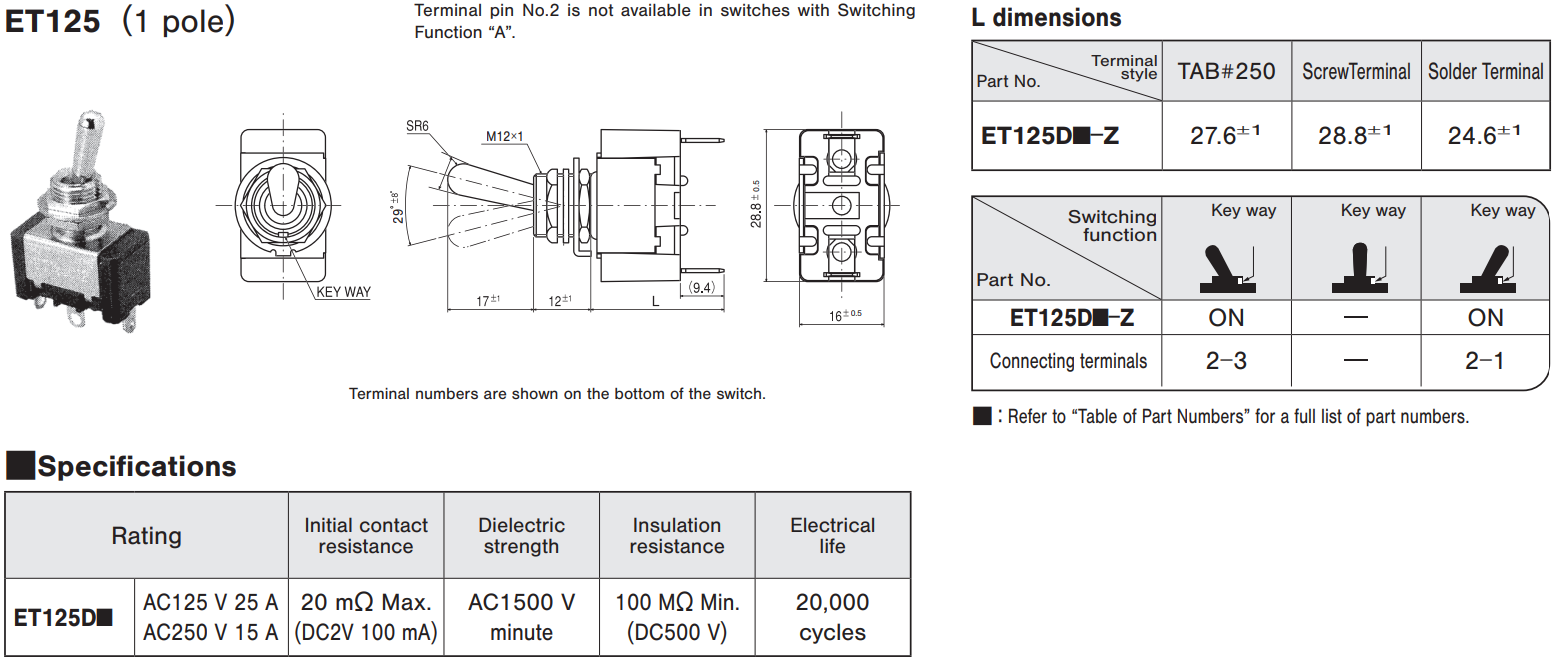

ET125A10-Z^★	Screw	125 VAC 25 A / 250 VAC 15 A	20 mΩ Max. (2 VDC 100 mA)	1500 VAC 1 minute	100 MΩ Min. (500 VDC)	20,000 cycles	3D CAD (Any Model)

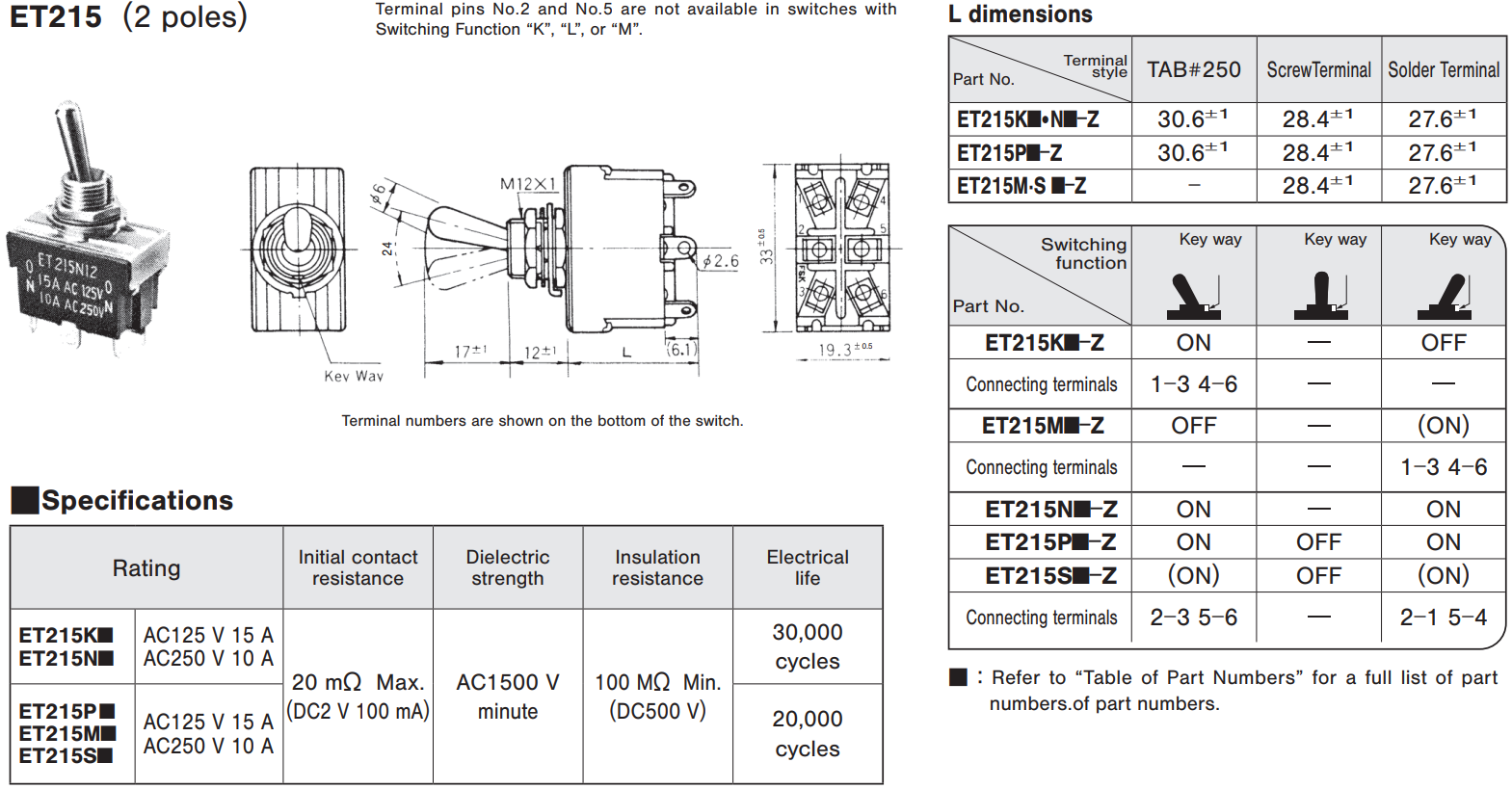

ET215K10-Z^★	Screw	125 VAC 15 A / 250 VAC 10 A	20 mΩ Max. (2 VDC 100 mA)	1500 VAC 1 minute	100 MΩ Min. (500 VDC)	30,000 cycles	3D CAD (Any Model)
ET215N10-Z^☆	Screw	125 VAC 15 A / 250 VAC 10 A	20 mΩ Max. (2 VDC 100 mA)	1500 VAC 1 minute	100 MΩ Min. (500 VDC)	30,000 cycles	3D CAD (Any Model)
ET125D12-Z^★	Solder	125 VAC 25 A / 250 VAC 15 A	20 mΩ Max. (2 VDC 100 mA)	1500 VAC 1 minute	100 MΩ Min. (500 VDC)	20,000 cycles	3D CAD (Any Model)

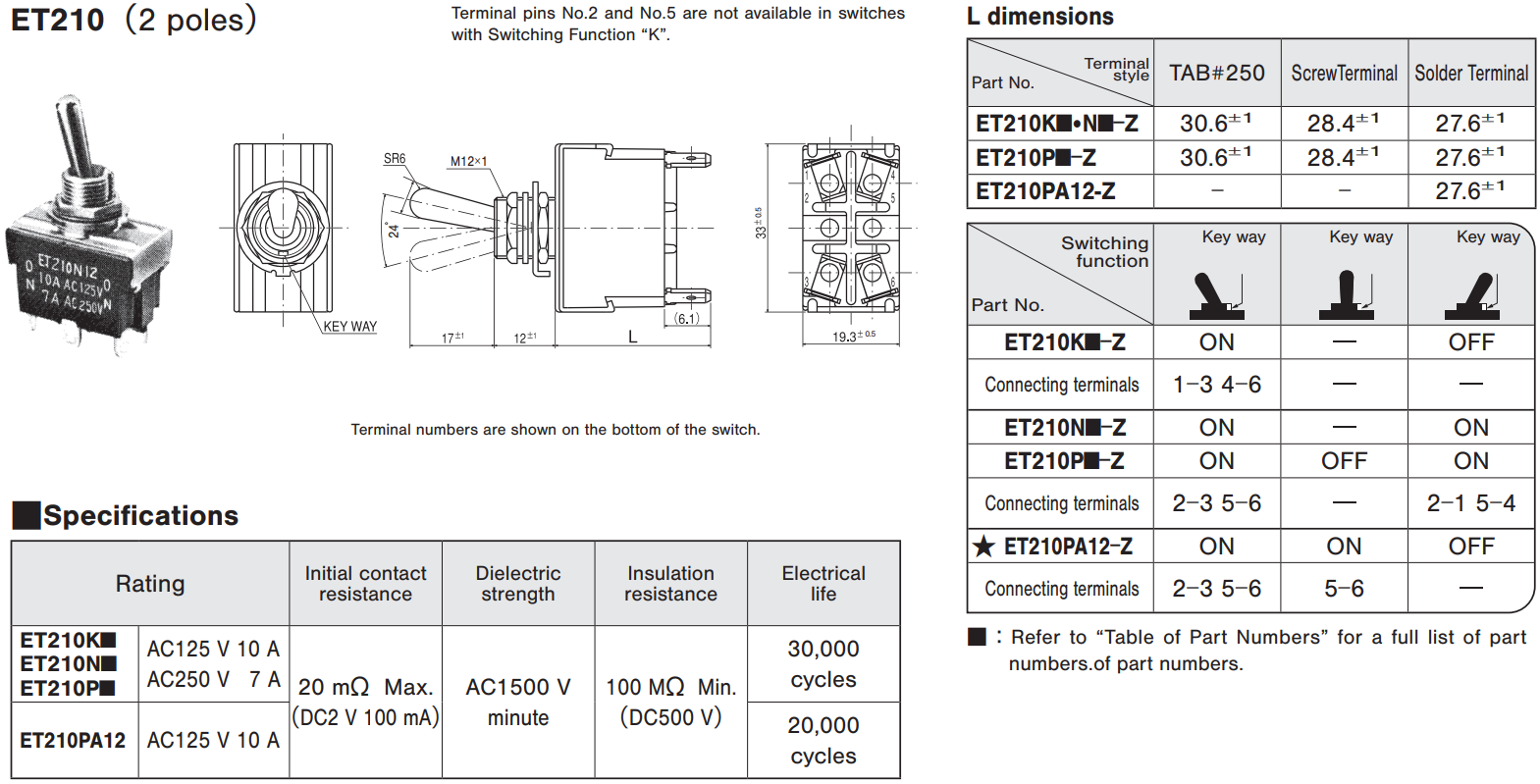

ET210K12-Z^☆	Solder	125 VAC 10 A / 250 VAC 7 A	20 mΩ Max. (2 VDC 100 mA)	1500 VAC 1 minute	100 MΩ Min. (500 VDC)	30,000 cycles	3D CAD (Any Model)
ET210N12-Z^☆	Solder	125 VAC 10 A / 250 VAC 7 A	20 mΩ Max. (2 VDC 100 mA)	1500 VAC 1 minute	100 MΩ Min. (500 VDC)	30,000 cycles	3D CAD (Any Model)
ET210P12-Z^☆	Solder	125 VAC 10 A / 250 VAC 7 A	20 mΩ Max. (2 VDC 100 mA)	1500 VAC 1 minute	100 MΩ Min. (500 VDC)	30,000 cycles	3D CAD (Any Model)
ET210PA12-Z^★	Solder	125 VAC 10 A	20 mΩ Max. (2 VDC 100 mA)	1500 VAC 1 minute	100 MΩ Min. (500 VDC)	20,000 cycles	3D CAD (Any Model)
ET215K12-Z^★	Solder	125 VAC 15 A / 250 VAC 10 A	20 mΩ Max. (2 VDC 100 mA)	1500 VAC 1 minute	100 MΩ Min. (500 VDC)	30,000 cycles	3D CAD (Any Model)
ET215M12-Z^★	Solder	125 VAC 15 A / 250 VAC 10 A	20 mΩ Max. (2 VDC 100 mA)	1500 VAC 1 minute	100 MΩ Min. (500 VDC)	20,000 cycles	3D CAD (Any Model)
ET215N12-Z^☆	Solder	125 VAC 15 A / 250 VAC 10 A	20 mΩ Max. (2 VDC 100 mA)	1500 VAC 1 minute	100 MΩ Min. (500 VDC)	30,000 cycles	3D CAD (Any Model)
ET215P12-Z^★	Solder	125 VAC 15 A / 250 VAC 10 A	20 mΩ Max. (2 VDC 100 mA)	1500 VAC 1 minute	100 MΩ Min. (500 VDC)	20,000 cycles	3D CAD (Any Model)
ET215S12-Z	Solder	125 VAC 15 A / 250 VAC 10 A	20 mΩ Max. (2 VDC 100 mA)	1500 VAC 1 minute	100 MΩ Min. (500 VDC)	20,000 cycles	3D CAD (Any Model)

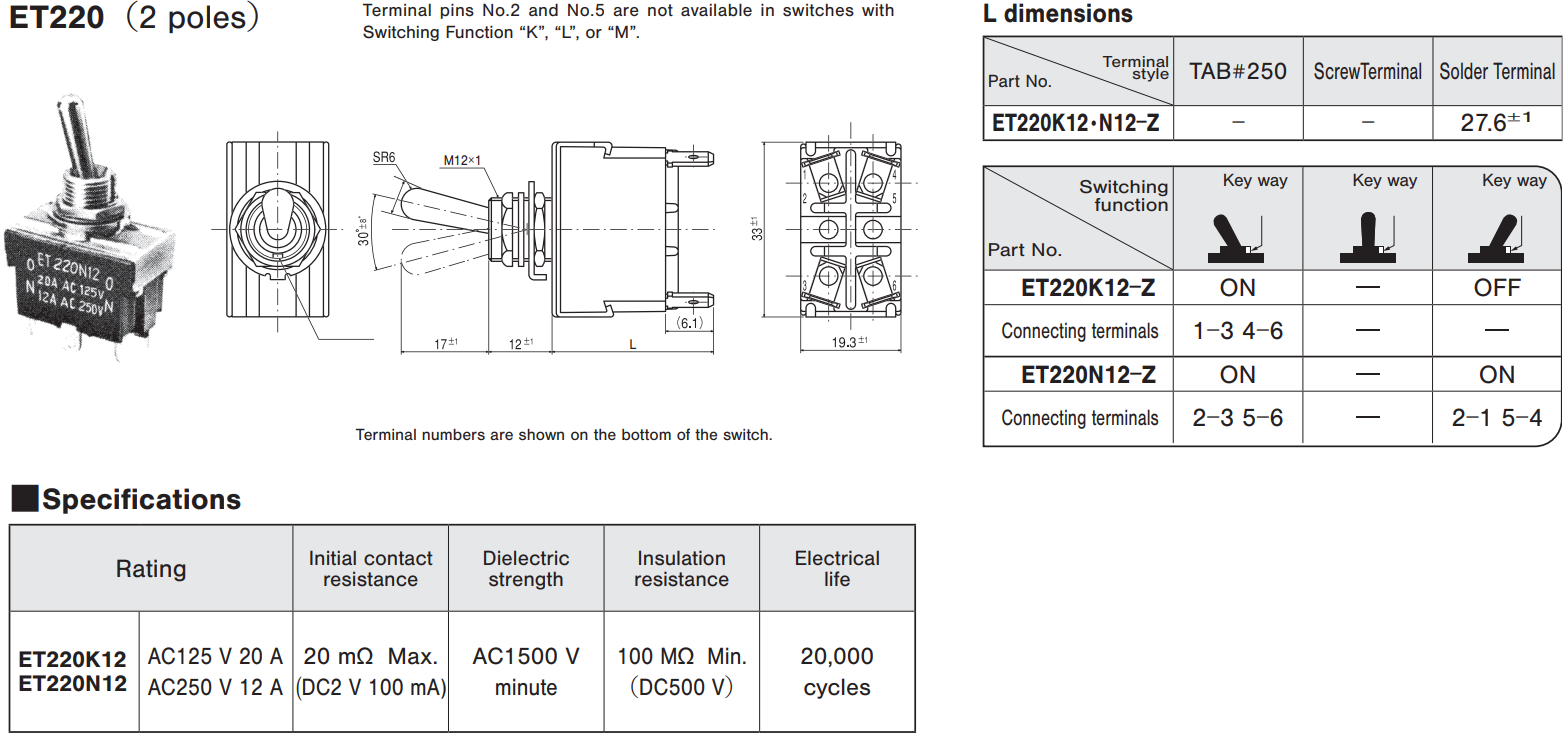

ET220K12-Z^★	Solder	125 VAC 20 A / 250 VAC 12 A	20 mΩ Max. (2 VDC 100 mA)	1500 VAC 1 minute	100 MΩ Min. (500 VDC)	20,000 cycles	3D CAD (Any Model)
ET220N12-Z^★	Solder	125 VAC 20 A / 250 VAC 12 A	20 mΩ Max. (2 VDC 100 mA)	1500 VAC 1 minute	100 MΩ Min. (500 VDC)	20,000 cycles	3D CAD (Any Model)
ET215N-Z^★	TAB #250	125 VAC 15 A / 250 VAC 10 A	20 mΩ Max. (2 VDC 100 mA)	1500 VAC 1 minute	100 MΩ Min. (500 VDC)	20,000 cycles	3D CAD (Any Model)
ET215P-Z^☆	TAB #250	125 VAC 15 A / 250 VAC 10 A	20 mΩ Max. (2 VDC 100 mA)	1500 VAC 1 minute	100 MΩ Min. (500 VDC)	20,000 cycles	3D CAD (Any Model)

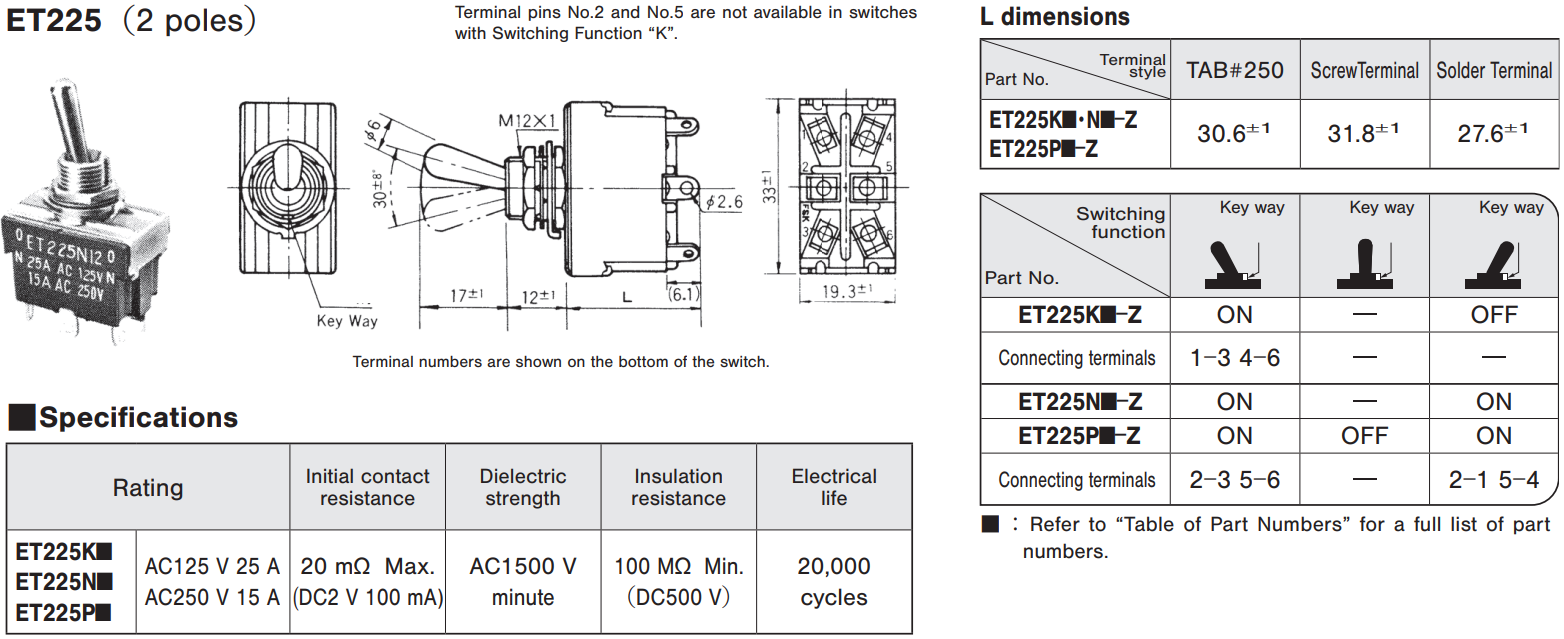

ET225K-Z^☆	TAB #250	125 VAC 25 A / 250 VAC 15 A	20 mΩ Max. (2 VDC 100 mA)	1500 VAC 1 minute	100 MΩ Min. (500 VDC)	20,000 cycles	3D CAD (Any Model)
ET225K12-Z^☆	Solder	125 VAC 25 A / 250 VAC 15 A	20 mΩ Max. (2 VDC 100 mA)	1500 VAC 1 minute	100 MΩ Min. (500 VDC)	20,000 cycles	3D CAD (Any Model)
ET225N12-Z	Solder	125 VAC 25 A / 250 VAC 15 A	20 mΩ Max. (2 VDC 100 mA)	1500 VAC 1 minute	100 MΩ Min. (500 VDC)	20,000 cycles	3D CAD (Any Model)
ET225P12-Z	Solder	125 VAC 25 A / 250 VAC 15 A	20 mΩ Max. (2 VDC 100 mA)	1500 VAC 1 minute	100 MΩ Min. (500 VDC)	20,000 cycles	3D CAD (Any Model)

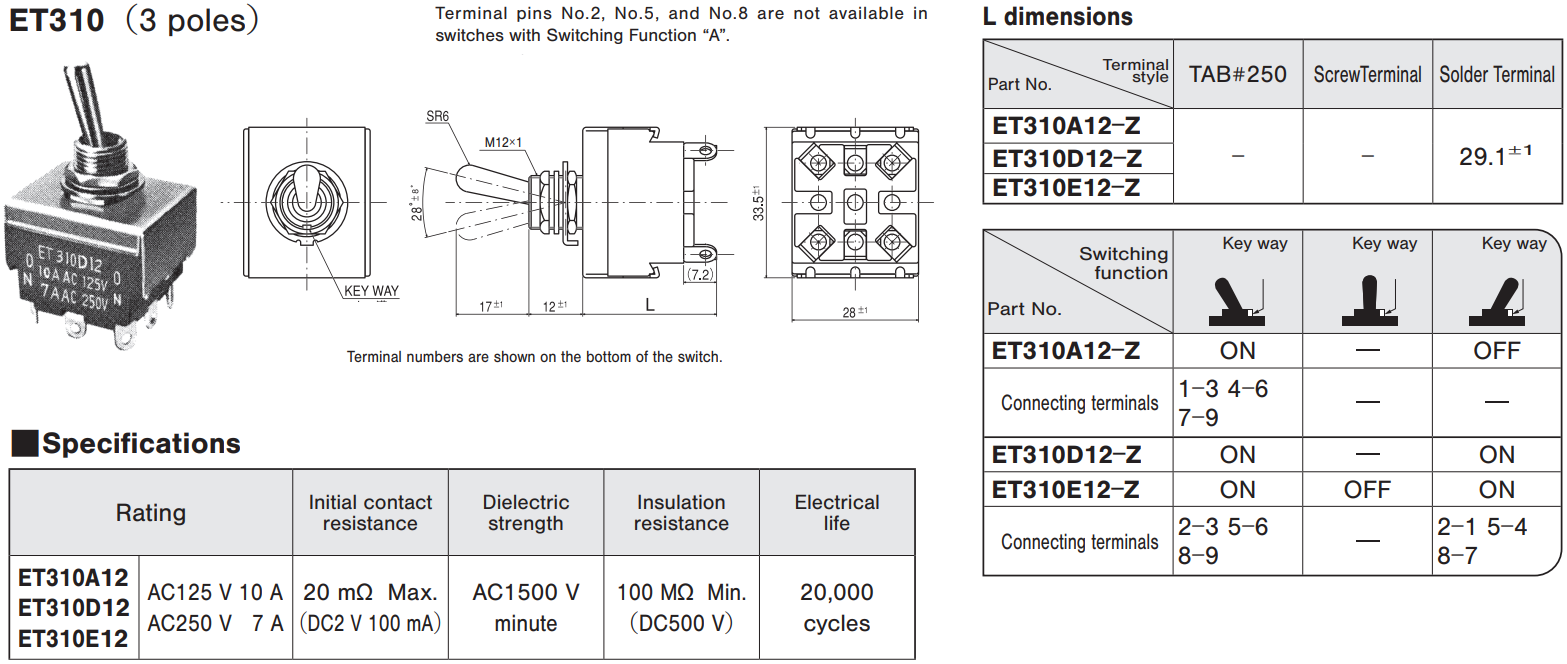

ET310A12-Z^★	Solder	125 VAC 10 A / 250 VAC 7 A	20 mΩ Max. (2 VDC 100 mA)	1500 VAC 1 minute	100 MΩ Min. (500 VDC)	20,000 cycles	3D CAD (Any Model)
ET310D12-Z^☆	Solder	125 VAC 10 A / 250 VAC 7 A	20 mΩ Max. (2 VDC 100 mA)	1500 VAC 1 minute	100 MΩ Min. (500 VDC)	20,000 cycles	3D CAD (Any Model)
ET310E12-Z^☆	Solder	125 VAC 10 A / 250 VAC 7 A	20 mΩ Max. (2 VDC 100 mA)	1500 VAC 1 minute	100 MΩ Min. (500 VDC)	20,000 cycles	3D CAD (Any Model)
ET315D12-Z^★	Solder	125 VAC 15 A / 250 VAC 10 A	20 mΩ Max. (2 VDC 100 mA)	1500 VAC 1 minute	100 MΩ Min. (500 VDC)	20,000 cycles	3D CAD (Any Model)
ET315E12-Z^★	Solder	125 VAC 15 A / 250 VAC 10 A	20 mΩ Max. (2 VDC 100 mA)	1500 VAC 1 minute	100 MΩ Min. (500 VDC)	20,000 cycles	3D CAD (Any Model)
ET225P-Z	TAB #250	125 VAC 25 A / 250 VAC 15 A	20 mΩ Max. (2 VDC 100 mA)	1500 VAC 1 minute	100 MΩ Min. (500 VDC)	20,000 cycles	3D CAD (Any Model)

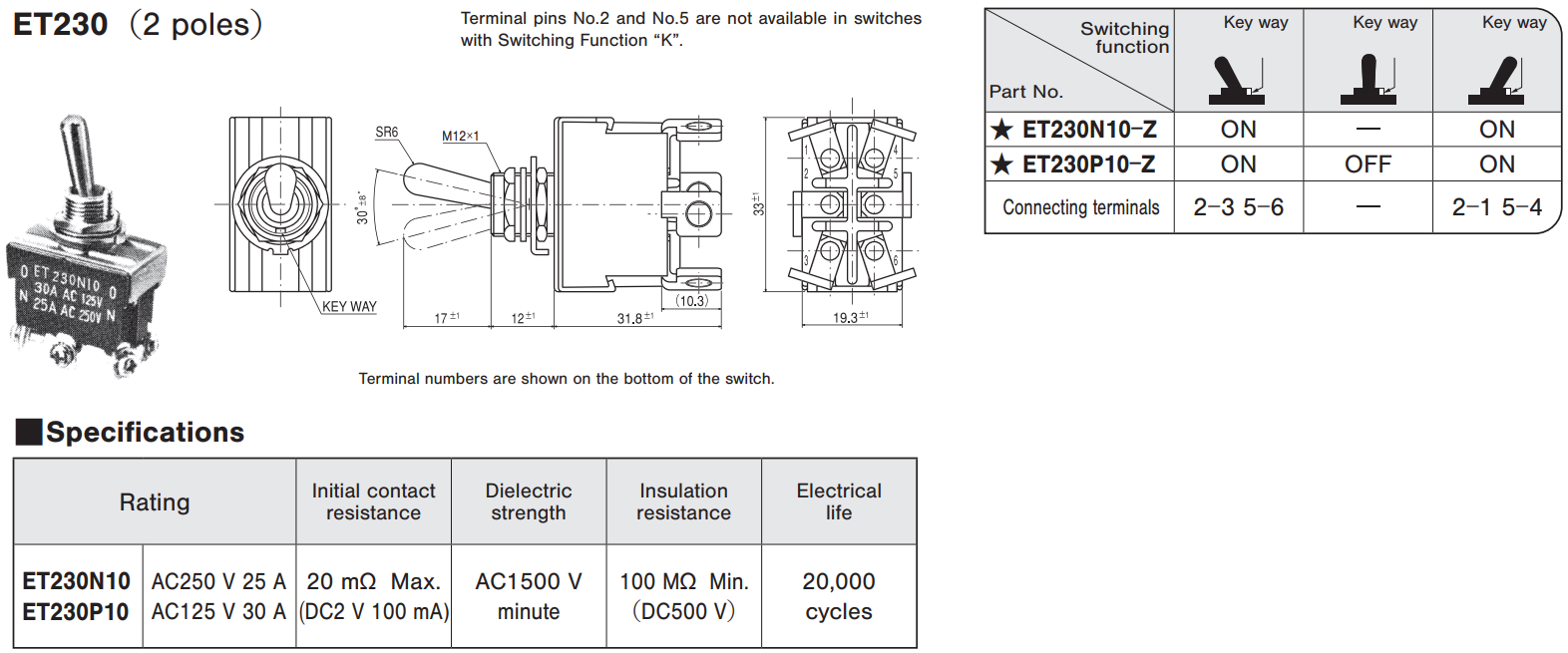

ET230N10-Z^★	Screw	250V 25A / 125 VAC 30A	20 mΩ Max. (2 VDC 100 mA)	1500 VAC 1 minute	100 MΩ Min. (500 VDC)	20,000 cycles	3D CAD (Any Model)
ET230P10-Z^★	Screw	250V 25A / 125 VAC 30A	20 mΩ Max. (2 VDC 100 mA)	1500 VAC 1 minute	100 MΩ Min. (500 VDC)	20,000 cycles	3D CAD (Any Model)

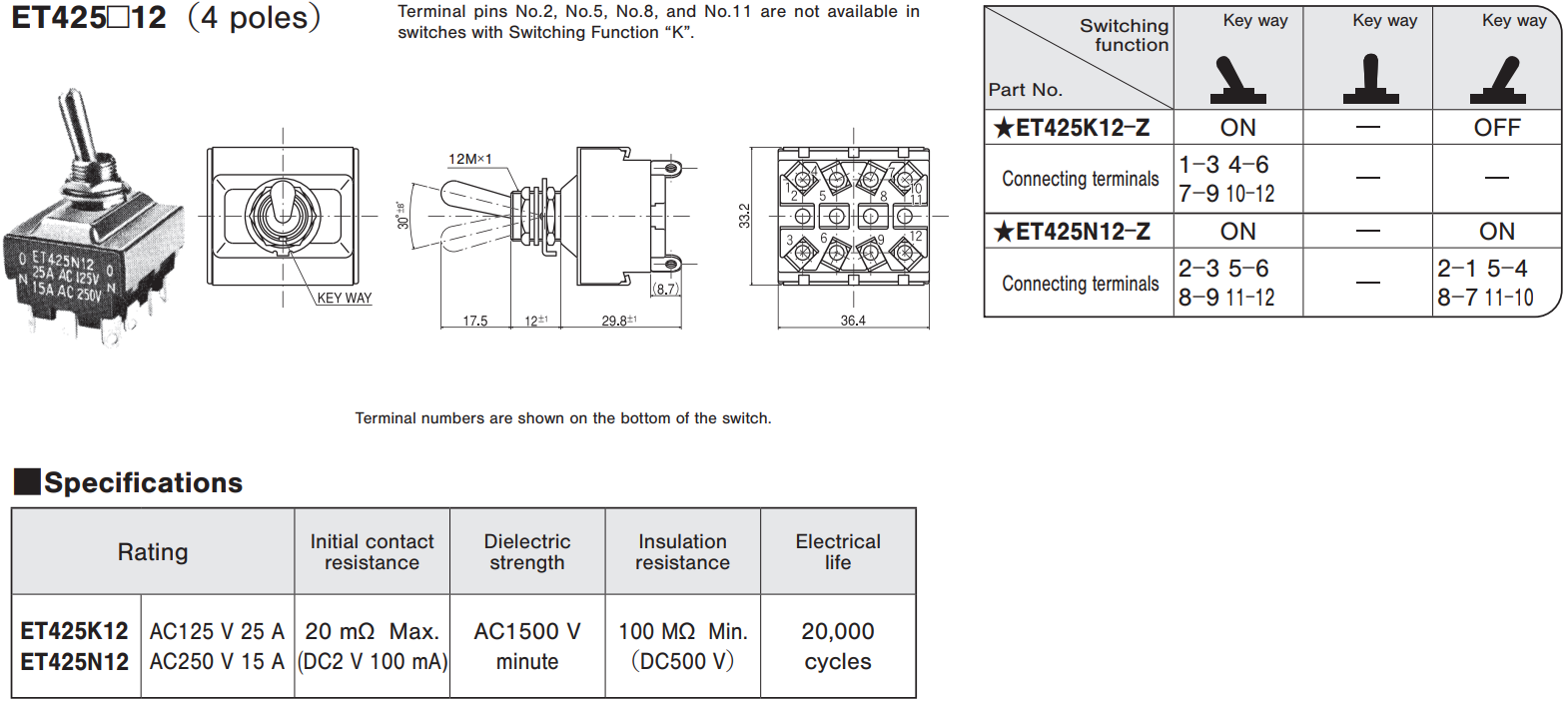

ET425K12-Z^★	Solder	125 VAC 25 A / 250 VAC 15 A	20 mΩ Max. (2 VDC 100 mA)	1500 VAC 1 minute	100 MΩ Min. (500 VDC)	20,000 cycles	3D CAD (Any Model)
ET425N12-Z^★	Solder	125 VAC 25 A / 250 VAC 15 A	20 mΩ Max. (2 VDC 100 mA)	1500 VAC 1 minute	100 MΩ Min. (500 VDC)	20,000 cycles	3D CAD (Any Model)

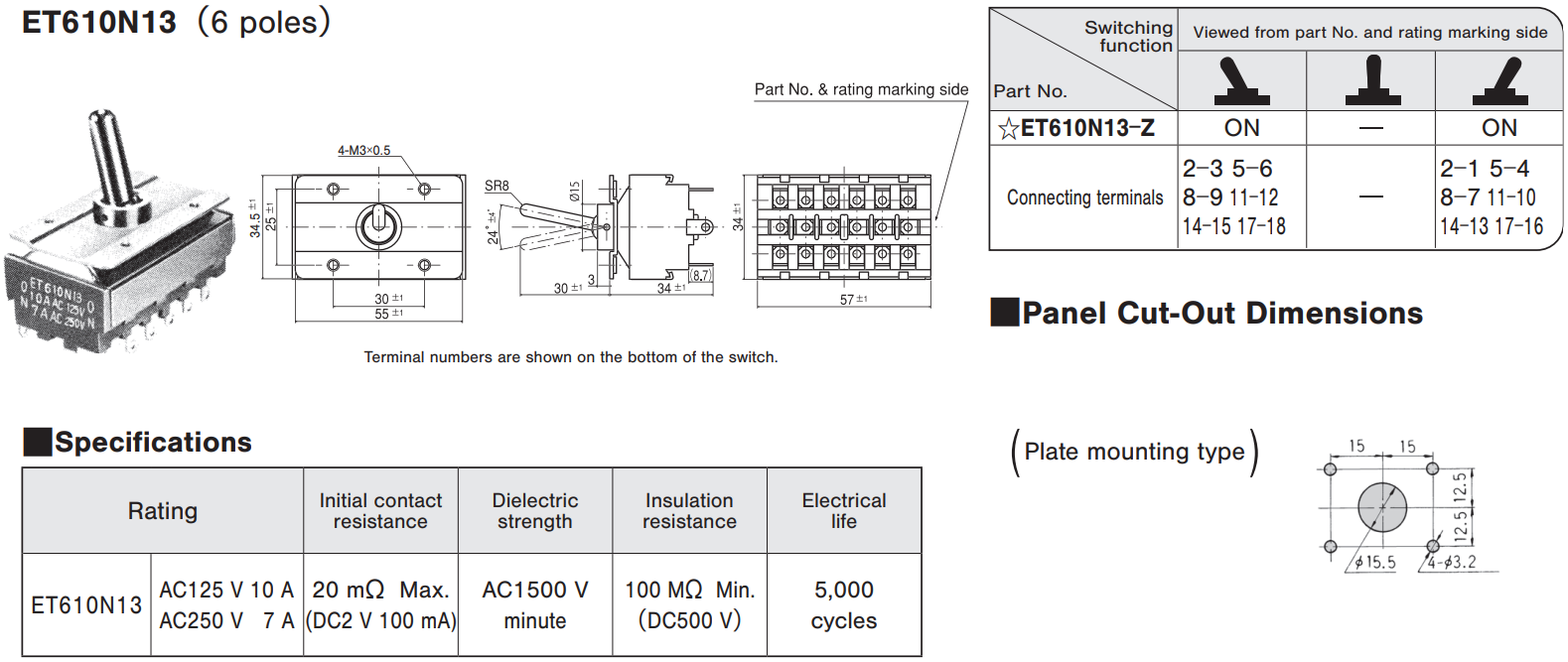

ET610N13-Z^☆	Solder	125 VAC 10 A / 250 VAC 7 A	20 mΩ Max. (2 VDC 100 mA)	1500 VAC 1 minute	100 MΩ Min. (500 VDC)	5,000 cycles	3D CAD (Any Model)

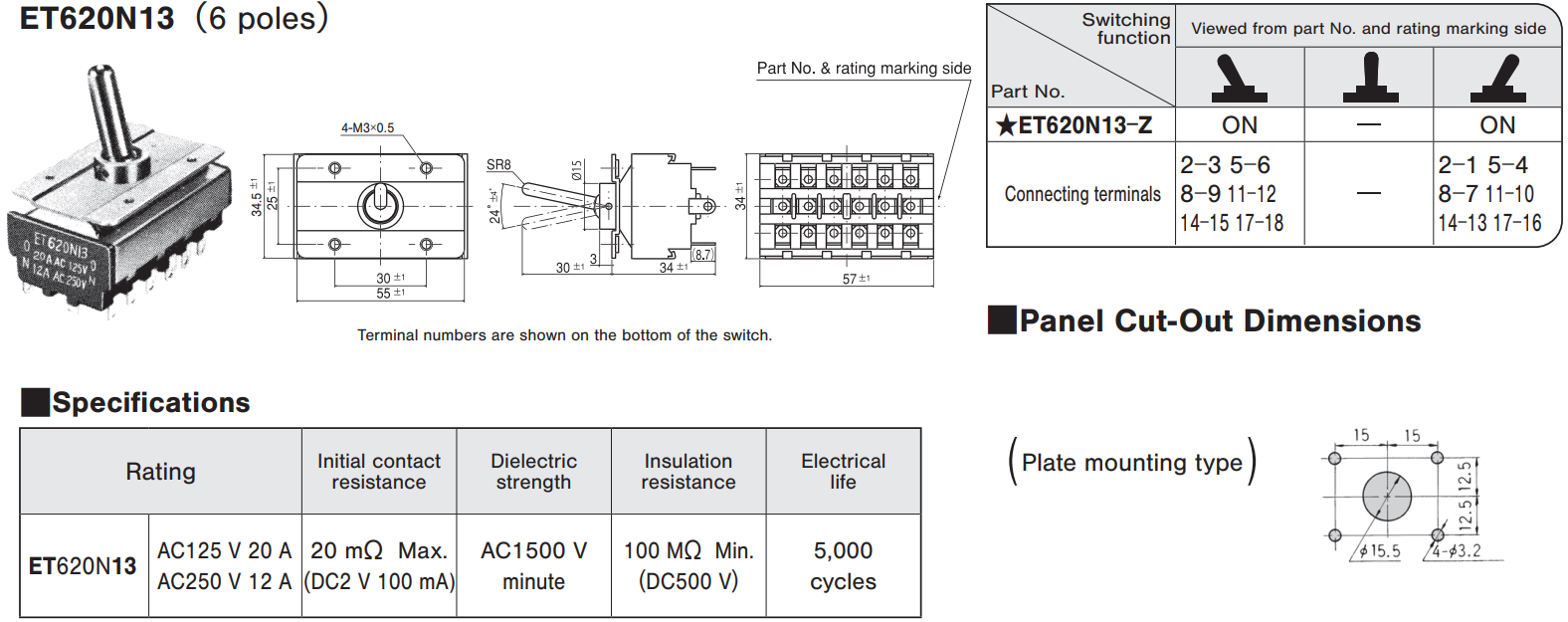

ET620N13-Z^★	Solder	125 VAC 20 A / 250 VAC 12 A	20 mΩ Max. (2 VDC 100 mA)	1500 VAC 1 minute	100 MΩ Min. (500 VDC)	5,000 cycles	3D CAD (Any Model)
