Pressure gauge PG-35
- ●To buy this product, please go to the following Online Web stores.
Pressure gauge PG-35
- Both absolute pressure type and compound pressure type are available
Compound pressure type measures negative and positive gauge pressure. - Compact and lightweight general-purpose pressure gauges
Innovative general-purpose gauges of compact design (30mm sq.) and drip-proof structure (IP65). - Clear indication by LED
Easy-to-see LED assures clear readings on the panel and even in a dark place. - Various modes and units can be selected according to applications
Eight different pressure units
Three analog output modes
Eight switch output modes - Meet EMC standards
EN 55011 (EMI) EN 61326-1 (EMS) - Low consumption by nondisplay mode
- Set data protection by panel lock function
|
|
General specifications
- Unless otherwise specified, the specs are defined at an ambient temperature of 25±5 °C and excitation voltage of 12 VDC.
| Model number | 102R | 103R | 102A |
|---|---|---|---|
| Pressure reference | Gauge | Absolute | |
| Pressure medium | Corrosive gases/liquids compatible with SUS 316L | ||
| Rated pressure range | − 100 ~ 100 kPa | − 100 ~ 1000 kPa | 0 ~ 100 (abs) kPa |
| Maximum pressure | 200kPa | 2000kPa | 200 (abs)kPa |
| Break-down pressure | 300kPa | 3000 kPa | 300 (abs) kPa |
| Operating temp. range | -10 ~ 50°C | ||
| Compensated temp. range | 0 ~ 50°C | ||
| Operating humidity | 35 ~ 85%RH | ||
| Protection grade | In accordance with IEC IP65 | ||
| Pressure Port | R 1/4, G 3/8, G 1/4, 9/16-18UNF | ||
| Type of mounting | Stem mount, Back mount | ||
| Material of pressure port attachment | SUS 316L | ||
| Net weight | Approx. 150g（Including 2 m cable) | ||
| Thermal error | ± 3 %F.S. (0 ~ 50 °C) | ||
| Insulation resistance | 100 (DC 500 V) MΩ minimum | ||
| Dielectric strength | 500 VAC 1 minute（Leakage current 1 mA maximum) | ||
| Input voltage | 10.8 ~ 30 VDC（Including ripple percentage) | ||
| Consumption current | 50mA maximum | ||
| Accessories | “O” rings are supplied (G 3/8 : P18, G 1/4 : P15) | ||
Display
- Unless otherwise specified, the specs are defined at an ambient temperature of 25±5 °C and excitation voltage of 12 VDC.
| Model number | 102R | 103R | 102A |
|---|---|---|---|
| Display element | Full 3-digit LED | ||
| Rated display range | − 99.9 ~ 99.9kPa | − 100 ~ 999kPa | 0.0 ~ 99.9 kPa |
| Multiplier settings | Max. 11 settings | ||
| Negative pressure display | Red LED is ON. | ― | |
| Display accuracy | ± 1 % | ||
Switch output
- Unless otherwise specified, the specs are defined at an ambient temperature of 25±5 °C and excitation voltage of 12 VDC.
| Output status | NPN/PNP 2-point output (Transistor, Open collector output) |
|---|---|
| Output mode | Separate mode / window comparator mode |
| Switching capacity | 30 VDC 100 mA Short-circuit protection |
| Residual voltage | 1.2 V maximum (NPN), 2.2 V maximum (PNP)（At load current of 100 mA） |
| State indication | Output 1 (Green LED), Output 2 (Red LED) Lighted when output is ON. |
| Switch hysteresis | 0 ~ 300 counts（Adjustable) |
| Repeatability | ± 0.2 %F.S. ± 1 count (± 0.3 %F.S. maximum) |
| Response | Approx. 5, 25, 250, 2500 ms Adjustable |
Analog output
- Unless otherwise specified, the specs are defined at an ambient temperature of 25±5 °C and excitation voltage of 12 VDC.
| Output mode | 3 modes |
|---|---|
| Output voltage V zero : Pin=0, V span : Pin=0 〜Pin (H) |
1 ~ 5 V (G/V mode ZERO : 1 ± 0.2 V, SPAN : 4 ± 0.2 V ; R mode ZERO : 3 ± 0.2 V, SPAN : 2 ± 0.2 V) 103 R (R mode) (ZERO : 1.36 ± 0.2 V SPAN : 3.64 ± 0.2 V) |
| Impedance | 10 kΩ |
| Resolution | 1/204（Approx. 20mV/ Approx. 0.5％ F.S.） |
| Response | Approx. 5, 25, 250, 2500 ms Adjustable |
MODEL NUMBER DESIGNATION
※High corrosion resistance type
| PG - 35- | 102 | R- | N | R2 | B |
|---|---|---|---|---|---|
|
Series name |
Pressure range 102R:-100~100 kPa 102A:0~100 kPa 103R:-100~1000 kPa
|
Pressure reference R：Compound pressure [Negative pressure ~ Positive pressure] A：Absolute pressure [Absolute vacuum ~ Barometic pressure] |
Switch output interface N:NPN open collector P:PNP open collector |
Fitting R2:R 1/4(With M5 female screw) GF:G 3/8 (Flush diaphragm type) G2:G 1/4 (With M5 female screw) VC:9/16-18UNF (Gusket joint) |
Port Blank:Stem mount B:Back mount |
LIST OF MODEL NUMBERS
| Model number | Rated pressure range | Pressure reference | Fitting | Type of mounting | Switch output interface | CAD |
|---|---|---|---|---|---|---|
| PG-35-102R-NR2 | −100~100 kPa | Gauge | R 1/4 | Stem mount | NPN | |
| ➡PG-35-102R-NR2B | −100~100 kPa | Gauge | R 1/4 | Back mount | NPN | |
| PG-35-102R-PR2 | −100~100 kPa | Gauge | R 1/4 | Stem mount | PNP | |
| ➡PG-35-102R-PR2B | −100~100 kPa | Gauge | R 1/4 | Back mount | PNP | |
| PG-35-102R-NGF | −100~100 kPa | Gauge | G 3/8 | Stem mount | NPN | |
| PG-35-102R-PGF | −100~100 kPa | Gauge | G 3/8 | Stem mount | PNP | |
| PG-35-102R-NVC | −100~100 kPa | Gauge | 9/16-18UNF | Stem mount | NPN | |
| ➡PG-35-102R-NVCB | −100~100 kPa | Gauge | 9/16-18UNF | Back mount | NPN | |
| PG-35-102R-PVC | −100~100 kPa | Gauge | 9/16-18UNF | Stem mount | PNP | |
| ➡PG-35-102R-PVCB | −100~100 kPa | Gauge | 9/16-18UNF | Back mount | PNP | |
| PG-35-102R-NG2 | −100~100 kPa | Gauge | G 1/4 | Stem mount | NPN | |
| PG-35-102R-PG2 | −100~100 kPa | Gauge | G 1/4 | Stem mount | PNP | |
| PG-35-103R-NR2 | −100~1000 kPa | Gauge | R 1/4 | Stem mount | NPN | |
| ➡ PG-35-103R-NR2B | −100~1000 kPa | Gauge | R 1/4 | Back mountt | NPN | |
| PG-35-103R-PR2 | −100~1000 kPa | Gauge | R 1/4 | Stem mount | PNP | |
| ➡PG-35-103R-PR2B | −100~1000 kPa | Gauge | R 1/4 | Back mount | PNP | |
| PG-35-103R-NGF | −100~1000 kPa | Gauge | G 3/8 | Stem mount | NPN | |
| PG-35-103R-PGF | −100~1000 kPa | Gauge | G 3/8 | Stem mount | PNP | |
| PG-35-103R-NVC | −100~1000 kPa | Gauge | 9/16-18UNF | Stem mount | NPN | |
| ➡PG-35-103R-NVCB | −100~1000 kPa | Gauge | 9/16-18UNF | Back mountt | NPN | |
| PG-35-103R-PVC | −100~1000 kPa | Gauge | 9/16-18UNF | Stem mount | PNP | |
| ➡PG-35-103R-PVCB | −100~1000 kPa | Gauge | 9/16-18UNF | Back mount | PNP | |
| PG-35-103R-NG2 | −100~1000 kPa | Gauge | G 1/4 | Stem mount | NPN | |
| PG-35-103R-PG2 | −100~1000 kPa | Gauge | G 1/4 | Stem mount | PNP | |
| PG-35-102A-NR2 | 0~100 kPa abs | Absolute | R 1/4 | Stem mount | NPN | |
| ➡PG-35-102A-NR2B | 0~100 kPa abs | Absolute | R 1/4 | Back mount | NPN | |
| PG-35-102A-PR2 | 0~100 kPa abs | Absolute | R 1/4 | Stem mount | PNP | |
| ➡PG-35-102A-PR2B | 0~100 kPa abs | Absolute | R 1/4 | Back mount | PNP | |
| PG-35-102A-NGF | 0~100 kPa abs | Absolute | G 3/8 | Stem mount | NPN | |
| PG-35-102A-PGF | 0~100 kPa abs | Absolute | G 3/8 | Stem mount | PNP | |
| PG-35-102A-NVC | 0~100 kPa abs | Absolute | 9/16-18UNF | Stem mount | NPN | |
| ➡PG-35-102A-NVCB | 0~100 kPa abs | Absolute | 9/16-18UNF | Back mount | NPN | |
| PG-35-102A-PVC | 0~100 kPa abs | Absolute | 9/16-18UNF | Stem mount | PNP | |
| ➡PG-35-102A-PVCB | 0~100 kPa abs | Absolute | 9/16-18UNF | Back mount | PNP | |
| PG-35-102A-NG2 | 0~100 kPa abs | Absolute | G 1/4 | Stem mount | NPN | |
| PG-35-102A-PG2 | 0~100 kPa abs | Absolute | G 1/4 | Stem mount | PNP |
The products marked ➡ are manufactured upon receipt of order basis.
ENVIRONMENTAL CHARACTERISTICS
| Test item | Test conditions | Permissible change |
|---|---|---|
| Vibration | 10 ~ 500 Hz, 98.1 m/s2 or 1.5 mm P-P, 3 directions for 2 hours each |
Amount of analog output fluctuation is permitted by adding conversion error of 20 mV. ※ 1 |
| Shock | 490 m/s2 , 3 directions for 3 times each | |
| Moisture resistance | 40 °C, 90 ~ 95 %RH, 240 hrs | |
| Pressure cycling | 0 ~ Rated pressure, 106 cycles |
※１Change in the pressure indication, switch operating points and analog output.
INTERNAL ELECTRICAL SCHEMATICS
|
|
|
|

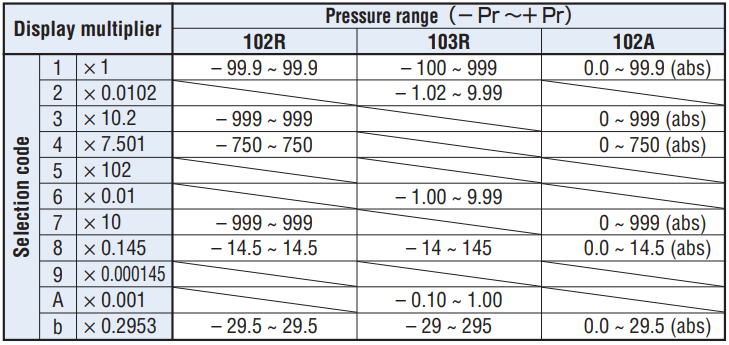

SELECTION OF DISPLAY MULTIPLIER
- The last digit/letter represents the selection code : Blinking red LED indicates negative pressure.
- Diagonal column: Display multiplier cannot be selected due to resolution and number of digits.
- (Selection code is not indicated either.)
- Selection code is set at “1” prior to shipment.
ANALOG OUTPUT MODE
- When shipped from our factory : 102R : V mode is set at “3” and 102A, 103R : G mode is set at “2”.
- In case of 102R and 103R, R/G/V mode can be set at “1”, “2” or “3”
- (However, the accuracy at V mode of 103R can’t be guaranteed). 102A : Only G mode can be set.
SWITCH OUTPUT MODE
|
|
|
|
- Note 1. In the Separate Mode, setting 1 corresponds to SW1, and Setting 2 corresponds to SW2.
- Note 2. In the Window Comparator Mode, the minimum value for SW1 and SW2 corresponds to Setting 1 and the maximum value corresponds to Setting 2.
OUTLINE DIMENSIONS
Unless otherwise specified tolerance : ± 0.5 (Unit: mm)
ACCESSORIES (Sold separately)
| Name | Series name | Contents | Applicable model |
|---|---|---|---|
| Panel holder set | ACPG-003 | Panel holder cover Panel holder Panel stopper (2pcs.) |
PG-30·PG-35·PG-75· PG-35H·PG-35L |
| Holder cover set (For protecting gauge operating panel) |
ACPG-004 | Panel holder cover Panel holder |
PG-30·PG-35·PG-75· PG-35H·PG-35L |
| Holder stopper set | ACPG-007 | Panel holder Panel stopper (2pcs.) |
PG-30·PG-35·PG-75· PG-35H·PG-35L |
HOW TO MOUNT OPTIONAL ACCESSORIES (Sold separately)
Installation
◆Tube at atmospheric pressure intake
If there is any possibility that the sensor may become wet with oil or water, which may enter the case through the air intake, connect a silicon tube, or similar, to the intake and position the end of the tube in a suitably safe place. Be sure not to bend the tube or block the end of the tube.
◆Piping
Use a wrench (13mm) on the aluminum die-casting. Do not hold the plastic case when tightening. Apply sealing tape at the male screw area to protect against air leaks. If mounting with an angled bracket, the maximum torque of the M3 screws should be less than 0.3N ·m.
When using the accessories sealing or fitting screw, bind up the seal tape around the sealing screw one and a half or two turns, and screw it in the pressure port by hand without damaging the screw thread. After then, tighten the screw sufficiently with wrench.(Recommended torque:Plastic screw 3.0N·m, Metal screw 10.0N·m maximum)
Customization
We also offer customized solutions. Please contact your local sales office for details.
| Model number | Shape and other customization |
|---|---|
| PG-35-102R-NR2-011 | Bracket (mounting plate) supplied |
| PG-35-102R-NR2-105 | Default mode (X 1 <multiplier factor>, V mode <analog output>, separate mode <switch output>), Pressure setting (P1:30kPa / P2 :50kPa, 10ms<hysteresis>, 0 (digital filter)) |
| PG-35-102R-NR2B-128 | Panel holder set (ACPG-003) separately packed and suuplied |
| PG-35-102R-PR2-021 | Tube for vent hole supplied. Measures against coolant intrusion(application of epoxy around a cable bush, and protection cover for panel sheet) |
| PG-35-103R-NS2 | Fitting : 1/4 Swagelok tubing |
Documents
- ●The above contents and descriptions are subject to change without notice.
