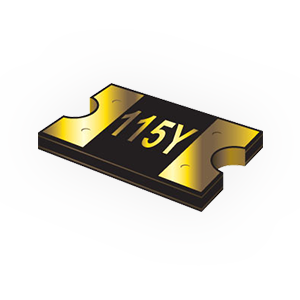

Polymer Resettable Circuit Protector PRCP-MSMF
- ●To buy this product, please go to the following Online Web stores.
Surface Mount Devices［4532 mm/1812 mils］
FeaturesFeatures
-
100 % electrically compatible with all previous generations of 1812 SMT devices
-
Compatible with Pb and Pb-free solder reflow profiles
-
Surface mount packaging for automated assembly
-
Standard 4532 mm (1812 mils) footprint
-
RoHS compliant and halogen free
-
Agency recognition:cULus, TÜV
-
Electrical Characteristics
| Model | Maximum Voltage (V max) | Maximum Current (I max) | at 23 ℃ | |||||
|---|---|---|---|---|---|---|---|---|
| Hold Current (Ihold) | Trip Current (Itrip) | R min ※1 | R1 max ※2 | Max. Time to Trip | Tripped Power Dissipation※3 | |||
| PRCP-MSMF010 | 60 VDC | 40 A | 0.10 A (at 23 ℃) | 0.30 A (at 23 ℃) | 0.70 Ω※1 (at 23 ℃) | 15.00 Ω※2 (at 23 ℃) | 1.50 Sec (at 0.5 A, at 23 ℃) |
0.8 W※3 (at 23 ℃) |
| PRCP-MSMF014 | 60 VDC | 40 A | 0.14 A (at 23 ℃) | 0.34 A (at 23 ℃) | 0.40 Ω※1 (at 23 ℃) | 6.50 Ω※2 (at 23 ℃) | 0.15 Sec (at 1.5 A, at 23 ℃) |
0.8 W※3 (at 23 ℃) |
| PRCP-MSMF020 | 30 VDC | 80 A | 0.20 A (at 23 ℃) | 0.40 A (at 23 ℃) | 0.4 Ω※1 (at 23 ℃) | 6.00 Ω※2 (at 23 ℃) | 0.06 Sec (at 6.0 A, at 23 ℃) |
0.8 W※3 (at 23 ℃) |
| PRCP-MSMF020/60 | 60 VDC | 40 A | 0.20 A (at 23 ℃) | 0.40 A (at 23 ℃) | 0.4 Ω※1 (at 23 ℃) | 6.00 Ω※2 (at 23 ℃) | 0.15 Sec (at 1.5 A, at 23 ℃) |
0.8 W※3 (at 23 ℃) |
| PRCP-MSMF030 | 30 VDC | 10 A | 0.30 A (at 23 ℃) | 0.60 A (at 23 ℃) | 0.3 Ω※1 (at 23 ℃) | 3.00 Ω※2 (at 23 ℃) | 0.10 Sec (at 8.0 A, at 23 ℃) |
0.8 W※3 (at 23 ℃) |
| PRCP-MSMF050 | 15 VDC | 100 A | 0.50 A (at 23 ℃) | 1.00 A (at 23 ℃) | 0.15 Ω※1 (at 23 ℃) | 1.00 Ω※2 (at 23 ℃) | 0.15 Sec (at 8.0 A, at 23 ℃) |
0.8 W※3 (at 23 ℃) |
| PRCP-MSMF075 | 13.2 VDC | 100 A | 0.75 A (at 23 ℃) | 1.50 A (at 23 ℃) | 0.11 Ω※1 (at 23 ℃) | 0.45 Ω※2 (at 23 ℃) | 0.20 Sec (at 8.0 A, at 23 ℃) |
0.8 W※3 (at 23 ℃) |
| PRCP-MSMF075/24 | 24 VDC | 40 A | 0.75 A (at 23 ℃) | 1.50 A (at 23 ℃) | 0.11 Ω※1 (at 23 ℃) | 0.45 Ω※2 (at 23 ℃) | 0.20 Sec (at 8.0 A, at 23 ℃) |
0.8 W※3 (at 23 ℃) |
| PRCP-MSMF110 | 6 VDC | 100 A | 1.10 A (at 23 ℃) | 2.20 A (at 23 ℃) | 0.04 Ω※1 (at 23 ℃) | 0.21 Ω※2 (at 23 ℃) | 0.30 Sec (at 8.0 A, at 23 ℃) |
0.8 W※3 (at 23 ℃) |
| PRCP-MSMF110/16 | 16 VDC | 100 A | 1.10 A (at 23 ℃) | 2.20 A (at 23 ℃) | 0.04 Ω※1 (at 23 ℃) | 0.21 Ω※2 (at 23 ℃) | 0.30 Sec (at 8.0 A, at 23 ℃) |
0.8 W※3 (at 23 ℃) |
| PRCP-MSMF110/24X | 24 VDC | 20 A | 1.10 A (at 23 ℃) | 2.20 A (at 23 ℃) | 0.06 Ω※1 (at 23 ℃) | 0.18 Ω※2 (at 23 ℃) | 0.50 Sec (at 8.0 A, at 23 ℃) |
0.8 W※3 (at 23 ℃) |
| PRCP-MSMF125 | 6 VDC | 100 A | 1.25 A (at 23 ℃) | 2.50 A (at 23 ℃) | 0.035 Ω※1 (at 23 ℃) | 0.14 Ω※2 (at 23 ℃) | 0.40 Sec (at 8.0 A, at 23 ℃) |
0.8 W※3 (at 23 ℃) |
| PRCP-MSMF150 | 6 VDC | 100 A | 1.50 A (at 23 ℃) | 3.00 A (at 23 ℃) | 0.03 Ω※1 (at 23 ℃) | 0.120 Ω※2 (at 23 ℃) | 0.5 Sec (at 8.0 A, at 23 ℃) |
0.8 W※3 (at 23 ℃) |
| PRCP-MSMF150/24X | 24 VDC | 20 A | 1.50 A (at 23 ℃) | 3.00 A (at 23 ℃) | 0.03 Ω※1 (at 23 ℃) | 0.120 Ω※2 (at 23 ℃) | 1.50 Sec (at 8.0 A, at 23 ℃) |
1.0 W※3 (at 23 ℃) |
| PRCP-MSMF160 | 8 VDC | 100 A | 1.60 A (at 23 ℃) | 2.80 A (at 23 ℃) | 0.035 Ω※1 (at 23 ℃) | 0.099 Ω※2 (at 23 ℃) | 2.0 Sec (at 8.0 A, at 23 ℃) |
0.8 W※3 (at 23 ℃) |
| PRCP-MSMF200 | 8 VDC | 40 A | 2.00 A (at 23 ℃) | 4.00 A (at 23 ℃) | 0.020 Ω※1 (at 23 ℃) | 0.080 Ω※2 (at 23 ℃) | 3.0 Sec (at 8.0 A, at 23 ℃) |
0.8 W※3 (at 23 ℃) |
| PRCP-MSMF250/16X | 16 VDC | 100 A | 2.50 A (at 23 ℃) | 5.00 A (at 23 ℃) | 0.015 Ω※1 (at 23 ℃) | 0.100 Ω※2 (at 23 ℃) | 5.0 Sec (at 8.0 A, at 23 ℃) |
1.2 W※3 (at 23 ℃) |
| PRCP-MSMF260 | 6 VDC | 100 A | 2.60 A (at 23 ℃) | 5.20 A (at 23 ℃) | 0.015 Ω※1 (at 23 ℃) | 0.080 Ω※2 (at 23 ℃) | 5.0 Sec (at 8.0 A, at 23 ℃) |
0.8 W※3 (at 23 ℃) |
※1) R min = Minimum resistance (Initial)
※2) R1 max = Maximum resistance one hour after past trip of past reflow
※3) Typical value
Thermal Derating Chart
● Ambient operating temperature： Ihold / Itrip (A)
| Model | Ambient operating temperature： Ihold / Itrip (A) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| -40 ℃ | -20 ℃ | 0 ℃ | 23 ℃ | 40 ℃ | 50 ℃ | 60 ℃ | 70℃ | 85 ℃ | |
| PRCP-MSMF010 | -40 ℃： 0.16 / 0.32 | -20 ℃： 0.14 / 0.28 | 0 ℃： 0.12 / 0.24 | 23 ℃： 0.10 / 0.20 | 40 ℃： 0.08 / 0.16 | 50 ℃： 0.07 / 0.14 | 60 ℃： 0.06 / 0.12 | 70 ℃： 0.05 / 0.10 | 85 ℃： 0.03 / 0.06 |
| PRCP-MSMF014 | -40 ℃： 0.23 / 0.52 | -20 ℃： 0.19 / 0.45 | 0 ℃： 0.17 / 0.40 | 23 ℃： 0.14 / 0.34 | 40 ℃： 0.12 / 0.29 | 50 ℃： 0.10 / 0.25 | 60 ℃： 0.09 / 0.23 | 70 ℃： 0.08 / 0.21 | 85 ℃： 0.06 / 0.16 |
| PRCP-MSMF020 | -40 ℃： 0.29 / 0.50 | -20 ℃： 0.26 / 0.52 | 0 ℃： 0.23 / 0.46 | 23 ℃： 0.20 / 0.40 | 40 ℃： 0.17 / 0.34 | 50 ℃： 0.15 / 0.30 | 60 ℃： 0.14 / 0.28 | 70 ℃： 0.12 / 0.24 | 85 ℃： 0.10 / 0.20 |
| PRCP-MSMF020/60 | -40 ℃： 0.29 / 0.50 | -20 ℃： 0.26 / 0.52 | 0 ℃： 0.23 / 0.46 | 23 ℃： 0.20 / 0.40 | 40 ℃： 0.17 / 0.34 | 50 ℃： 0.15 / 0.30 | 60 ℃： 0.14 / 0.28 | 70 ℃： 0.12 / 0.24 | 85 ℃： 0.10 / 0.20 |
| PRCP-MSMF030 | -40 ℃： 0.44 / 0.88 | -20 ℃： 0.39 / 0.78 | 0 ℃： 0.35 / 0.70 | 23 ℃： 0.30 / 0.60 | 40 ℃： 0.26 / 0.52 | 50 ℃： 0.23 / 0.46 | 60 ℃： 0.21 / 0.42 | 70 ℃： 0.18 / 0.36 | 85 ℃： 0.15 / 0.30 |
| PRCP-MSMF050 | -40 ℃： 0.77 / 1.54 | -20 ℃： 0.68 / 1.36 | 0 ℃： 0.59 / 1.18 | 23 ℃： 0.50 / 1.00 | 40 ℃： 0.44 / 0.88 | 50 ℃： 0.40 / 0.80 | 60 ℃： 0.37 / 0.74 | 70 ℃： 0.33 / 0.66 | 85 ℃： 0.29 / 0.58 |
| PRCP-MSMF070 | -40 ℃： 1.15 / 2.30 | -20 ℃： 1.01 / 2.02 | 0 ℃： 0.88 / 1.76 | 23 ℃： 0.75 / 1.50 | 40 ℃： 0.65 / 1.30 | 50 ℃： 0.60 / 1.20 | 60 ℃： 0.55 / 1.10 | 70 ℃： 0.49 / 0.98 | 85 ℃： 0.43 / 0.86 |
| PRCP-MSMF075/24 | -40 ℃： 1.15 / 2.30 | -20 ℃： 1.01 / 2.02 | 0 ℃： 0.88 / 1.76 | 23 ℃： 0.75 / 1.50 | 40 ℃： 0.65 / 1.30 | 50 ℃： 0.60 / 1.20 | 60 ℃： 0.55 / 1.10 | 70 ℃： 0.49 / 0.98 | 85 ℃： 0.43 / 0.86 |
| PRCP-MSMF110 | -40 ℃： 1.59 / 3.18 | -20 ℃： 1.43 / 2.86 | 0 ℃： 1.26 / 2.52 | 23 ℃： 1.10 / 2.20 | 40 ℃： 0.95 / 1.90 | 50 ℃： 0.87 / 1.74 | 60 ℃： 0.80 / 1.60 | 70 ℃： 0.71 / 1.42 | 85 ℃： 0.60 / 1.20 |
| PRCP-MSMF110/16 | -40 ℃： 1.59 / 3.18 | -20 ℃： 1.43 / 2.86 | 0 ℃： 1.26 / 2.52 | 23 ℃： 1.10 / 2.20 | 40 ℃： 0.95 / 1.90 | 50 ℃： 0.87 / 1.74 | 60 ℃： 0.80 / 1.60 | 70 ℃： 0.71 / 1.42 | 85 ℃： 0.60 / 1.20 |
| PRCP-MSMF110/24X | -40 ℃： 2.00 / 4.00 | -20 ℃： 1.70 / 3.40 | 0 ℃： 1.40 / 2.80 | 23 ℃： 1.10 / 2.20 | 40 ℃： 0.95 / 1.90 | 50 ℃： 0.88 / 1.76 | 60 ℃： 0.80 / 1.60 | 70 ℃： 0.73 / 1.46 | 85 ℃： 0.61 / 1.22 |
| PRCP-MSMF125 | -40 ℃： 1.80 / 3.61 | -20 ℃： 1.63 / 3.25 | 0 ℃： 1.43 / 2.86 | 23 ℃： 1.25 / 2.50 | 40 ℃： 1.08 / 2.16 | 50 ℃： 0.99 / 1.98 | 60 ℃： 0.91 / 1.82 | 70 ℃： 0.81 / 1.62 | 85 ℃： 0.68 / 1.36 |
| PRCP-MSMF150 | -40 ℃： 2.17 / 4.34 | -20 ℃： 1.95 / 3.90 | 0 ℃： 1.72 / 3.44 | 23 ℃： 1.50 / 3.00 | 40 ℃： 1.30 / 2.59 | 50 ℃： 1.18 / 2.37 | 60 ℃： 1.09 / 2.18 | 70 ℃： 0.97 / 1.94 | 85 ℃： 0.82 / 1.64 |
| PRCP-MSMF150/24 | -40 ℃： 2.10 / 4.20 | -20 ℃： 1.90 / 3.80 | 0 ℃： 1.70 / 3.40 | 23 ℃： 1.50 / 3.00 | 40 ℃： 1.25 / 2.50 | 50 ℃： 1.13 / 2.26 | 60 ℃： 1.00 / 2.00 | 70 ℃： 0.88 / 1.76 | 85 ℃： 0.69 / 1.38 |
| PRCP-MSMF160 | -40 ℃： 2.30 / 5.00 | -20 ℃： 2.20 / 4.40 | 0 ℃： 1.90 / 3.80 | 23 ℃： 1.60 / 2.80 | 40 ℃： 1.45 / 2.90 | 50 ℃： 1.30 / 2.60 | 60 ℃： 1.15 / 2.30 | 70 ℃： 1.03 / 2.06 | 85 ℃： 0.91 / 1.82 |
| PRCP-MSMF200 | -40 ℃： 3.08 / 5.40 | -20 ℃： 2.71 / 4.74 | 0 ℃： 2.35 / 4.11 | 23 ℃： 2.00 / 3.50 | 40 ℃： 1.80 / 3.15 | 50 ℃： 1.60 / 2.80 | 60 ℃： 1.50 / 2.63 | 70 ℃： 1.40 / 2.40 | 85 ℃： 1.25 / 2.10 |
| PRCP-MSMF250/16X | -40 ℃： 3.85 / 7.70 | -20 ℃： 3.45 / 6.90 | 0 ℃： 3.00 / 6.00 | 23 ℃： 2.50 / 5.00 | 40 ℃： 2.05 / 4.10 | 50 ℃： 1.85 / 3.70 | 60 ℃： 1.75 / 3.50 | 70 ℃： 1.30 / 2.60 | 85 ℃： 1.10 / 2.20 |
| PRCP-MSMF260 | -40 ℃： 4.00 / 7.98 | -20 ℃： 3.52 / 7.01 | 0 ℃： 3.06 / 6.09 | 23 ℃： 2.60 / 5.15 | 40 ℃： 2.34 / 4.64 | 50 ℃： 2.08 / 4.13 | 60 ℃： 1.95 / 3.87 | 70 ℃： 1.39 / 2.74 | 85 ℃： 1.04 / 2.05 |
Environmental Characteristics
| Operating Temperature | -40 ℃ ~ +85 ℃ |
|---|---|
| Maximun device surface temperature in tripped state | 125 ℃ maximum |
| Passive Aging | 85 ℃, 1000 h: ±5 % typical resistance change |
| Humidity Aging | 85 ℃, 85 %RH, 1000 h: ±5 % typical resistance change |
| Thermal Shock | -40 ℃ ~ +85 ℃, 20 cycles: ±10 % typical resistance change |
| Solvent Resistance |
MIL-STD-202 method 215: No change |
| Vibration | MIL-STD-883C, Method 2007.1, Condition A: No change |
| MSL (Moisture Sensitivity Level) | Level 1, J-STD-020 |
Test Procedures and Requirements
| Item | Test Condition | Accept / Reject Criteria |
|---|---|---|
| Visual/Mech. | Test condition： Verify dimensions and materials | Accept / Reject criteria： Per P.R.C.P. physical description |
| Resistance | Test condition： In still air at 23 ℃ | Accept / Reject criteria： R min ≤ R ≤ R1 max |
| Time to Trip | Test condition： At specified current, V max, 23 ℃ | Accept / Reject criteria： T ≤ max. time to trip (Sec) |
| Hold Current | Test condition： 30 min. at Ihold , 23 ℃, still air | Accept / Reject criteria： No trip |
| Trip Cycle Life | Test condition： V max, I max, 100 cycles | Accept / Reject criteria： No arcing or burning |
| Trip Endurance | Test condition： V max, I max, 48 h | Accept / Reject criteria： No arcing or burning |
| Solderability | Test condition： 245 ℃ ± 5 ℃, 5 seconds | Accept / Reject criteria： 95% min. coverage |
Product Dimensions
Unit: mm (inch)
| Model | A | B | C | D | Style | |||
|---|---|---|---|---|---|---|---|---|
| Min. | Max. | Min. | Max. | Min. | Max. | Min. | ||
| PRCP-MSMF010 | 4.37 (0.172) |
4.73 (0.186) |
3.07 (0.121) |
3.41 (0.134) |
0.70 (0.028) |
1.10 (0.043) |
0.30 (0.012) |
Style 1 |
| PRCP-MSMF014 | 4.37 (0.172) |
4.73 (0.186) |
3.07 (0.121) |
3.41 (0.134) |
0.70 (0.028) |
1.10 (0.043) |
0.30 (0.012) |
Style 1 |
| PRCP-MSMF020 | 4.37 (0.172) |
4.73 (0.186) |
3.07 (0.121) |
3.41 (0.134) |
0.70 (0.028) |
1.10 (0.043) |
0.30 (0.012) |
Style 1 |
| PRCP-MSMF020/60 | 4.37 (0.172) |
4.73 (0.186) |
3.07 (0.121) |
3.41 (0.134) |
0.70 (0.028) |
1.10 (0.043) |
0.30 (0.012) |
Style 1 |
| PRCP-MSMF030 | 4.37 (0.172) |
4.73 (0.186) |
3.07 (0.121) |
3.41 (0.134) |
0.70 (0.028) |
1.10 (0.043) |
0.30 (0.012) |
Style 1 |
| PRCP-MSMF050 | 4.37 (0.172) |
4.73 (0.186) |
3.07 (0.121) |
3.41 (0.134) |
0.55 (0.022) |
0.85 (0.033) |
0.30 (0.012) |
Style 1 |
| PRCP-MSMF075 | 4.37 (0.172) |
4.73 (0.186) |
3.07 (0.121) |
3.41 (0.134) |
0.55 (0.022) |
0.85 (0.033) |
0.30 (0.012) |
Style 1 |
| PRCP-MSMF075/24 | 4.37 (0.172) |
4.73 (0.186) |
3.07 (0.121) |
3.41 (0.134) |
0.55 (0.022) |
0.85 (0.033) |
0.30 (0.012) |
Style 1 |
| PRCP-MSMF110 | 4.37 (0.172) |
4.73 (0.186) |
3.07 (0.121) |
3.41 (0.134) |
0.45 (0.018) |
0.85 (0.033) |
0.30 (0.012) |
Style 1 |
| PRCP-MSMF110 | 4.37 (0.172) |
4.73 (0.186) |
3.07 (0.121) |
3.41 (0.134) |
0.45 (0.018) |
0.85 (0.033) |
0.30 (0.012) |
Style 1 |
| PRCP-MSMF110/16 | 4.37 (0.172) |
4.73 (0.186) |
3.07 (0.121) |
3.41 (0.134) |
0.45 (0.018) |
0.85 (0.033) |
0.30 (0.012) |
Style 1 |
| PRCP-MSMF110/24X | 4.37 (0.172) |
4.83 (0.190) |
3.07 (0.121) |
3.41 (0.134) |
0.70 (0.028) |
1.60 (0.063) |
0.30 (0.012) |
Style 2 |
| PRCP-MSMF125 | 4.37 (0.172) |
4.73 (0.186) |
3.07 (0.121) |
3.41 (0.134) |
0.55 (0.022) |
0.85 (0.033) |
0.30 (0.012) |
Style 1 |
| PRCP-MSMF150 | 4.37 (0.172) |
4.73 (0.186) |
3.07 (0.121) |
3.41 (0.134) |
0.55 (0.022) |
0.85 (0.033) |
0.30 (0.012) |
Style 1 |
| PRCP-MSMF150/24X | 4.37 (0.172) |
4.83 (0.190) |
3.07 (0.121) |
3.41 (0.134) |
0.70 (0.028) |
1.60 (0.063) |
0.30 (0.012) |
Style 2 |
| PRCP-MSMF160 | 4.37 (0.172) |
4.73 (0.186) |
3.07 (0.121) |
3.41 (0.134) |
0.55 (0.022) |
0.85 (0.033) |
0.30 (0.012) |
Style 1 |
| PRCP-MSMF200 | 4.37 (0.172) |
4.73 (0.186) |
3.07 (0.121) |
3.41 (0.134) |
0.55 (0.022) |
0.85 (0.033) |
0.30 (0.012) |
Style 1 |
| PRCP-MSMF250/16X | 4.37 (0.172) |
4.83 (0.190) |
3.07 (0.121) |
3.41 (0.134) |
0.70 (0.028) |
1.60 (0.063) |
0.30 (0.012) |
Style 2 |
| PRCP-MSMF260 | 4.37 (0.172) |
4.73 (0.186) |
3.07 (0.121) |
3.41 (0.134) |
0.48 (0.019) |
0.85 (0.033) |
0.30 (0.012) |
Style 1 |
| PRCP-MSMF010 |
Style：Style 1
|
A：Min. 4.37 (0.172) ~ Max. 4.73 (0.186) |
B：Min. 3.07 (0.121) ~ Max. 3.41 (0.134) |
C：Min. 0.70 (0.028) ~ Max. 1.10 (0.043) |
D：Min. 0.30 (0.012) |
|---|---|---|---|---|---|
| PRCP-MSMF014 |
Style：Style 1
|
A：Min. 4.37 (0.172) ~ Max. 4.73 (0.186) |
B：Min. 3.07 (0.121) ~ Max. 3.41 (0.134) |
C：Min. 0.70 (0.028) ~ Max. 1.10 (0.043) |
D：Min. 0.30 (0.012) |
| PRCP-MSMF020 |
Style：Style 1
|
A：Min. 4.37 (0.172) ~ Max. 4.73 (0.186) |
B：Min. 3.07 (0.121) ~ Max. 3.41 (0.134) |
C：Min. 0.70 (0.028) ~ Max. 1.10 (0.043) |
D：Min. 0.30 (0.012) |
| PRCP-MSMF020/60 |
Style：Style 1
|
A：Min. 4.37 (0.172) ~ Max. 4.73 (0.186) |
B：Min. 3.07 (0.121) ~ Max. 3.41 (0.134) |
C：Min. 0.70 (0.028) ~ Max. 1.10 (0.043) |
D：Min. 0.30 (0.012) |
| PRCP-MSMF030 |
Style：Style 1
|
A：Min. 4.37 (0.172) ~ Max. 4.73 (0.186) |
B：Min. 3.07 (0.121) ~ Max. 3.41 (0.134) |
C：Min. 0.70 (0.028) ~ Max. 1.10 (0.043) |
D：Min. 0.30 (0.012) |
| PRCP-MSMF050 |
Style：Style 1
|
A：Min. 4.37 (0.172) ~ Max. 4.73 (0.186) |
B：Min. 3.07 (0.121) ~ Max. 3.41 (0.134) |
C：Min. 0.55 (0.022) ~ Max. 0.85 (0.033) |
D：Min. 0.30 (0.012) |
| PRCP-MSMF075 |
Style：Style 1
|
A：Min. 4.37 (0.172) ~ Max. 4.73 (0.186) |
B：Min. 3.07 (0.121) ~ Max. 3.41 (0.134) |
C：Min. 0.55 (0.022) ~ Max. 0.85 (0.033) |
D：Min. 0.30 (0.012) |
| PRCP-MSMF075/24 |
Style：Style 1
|
A：Min. 4.37 (0.172) ~ Max. 4.73 (0.186) |
B：Min. 3.07 (0.121) ~ Max. 3.41 (0.134) |
C：Min. 0.55 (0.022) ~ Max. 0.85 (0.033) |
D：Min. 0.30 (0.012) |
| PRCP-MSMF110 |
Style：Style 1
|
A：Min. 4.37 (0.172) ~ Max. 4.73 (0.186) |
B：Min. 3.07 (0.121) ~ Max. 3.41 (0.134) |
C：Min. 0.45 (0.018) ~ Max. 0.85 (0.033) |
D：Min. 0.30 (0.012) |
| PRCP-MSMF110/16 |
Style：Style 1
|
A：Min. 4.37 (0.172) ~ Max. 4.73 (0.186) |
B：Min. 3.07 (0.121) ~ Max. 3.41 (0.134) |
C：Min. 0.45 (0.018) ~ Max. 0.85 (0.033) |
D：Min. 0.30 (0.012) |
| PRCP-MSMF110/24X |
Style：Style 2
|
A：Min. 4.37 (0.172) ~ Max. 4.73 (0.186) |
B：Min. 3.07 (0.121) ~ Max. 3.41 (0.134) |
C：Min. 0.70 (0.028) ~ Max. 1.60 (0.063) |
D：Min. 0.30 (0.012) |
| PRCP-MSMF125 |
Style：Style 1
|
A：Min. 4.37 (0.172) ~ Max. 4.73 (0.186) |
B：Min. 3.07 (0.121) ~ Max. 3.41 (0.134) |
C：Min. 0.55 (0.022) ~ Max. 0.85 (0.033) |
D：Min. 0.30 (0.012) |
| PRCP-MSMF150 |
Style：Style 1
|
A：Min. 4.37 (0.172) ~ Max. 4.73 (0.186) |
B：Min. 3.07 (0.121) ~ Max. 3.41 (0.134) |
C：Min. 0.55 (0.022) ~ Max. 0.85 (0.033) |
D：Min. 0.30 (0.012) |
| PRCP-MSMF150/24X |
Style：Style 2
|
A：Min. 4.37 (0.172) ~ Max. 4.73 (0.186) |
B：Min. 3.07 (0.121) ~ Max. 3.41 (0.134) |
C：Min. 0.70 (0.028) ~ Max. 1.60 (0.063) |
D：Min. 0.30 (0.012) |
| PRCP-MSMF160 |
Style：Style 1
|
A：Min. 4.37 (0.172) ~ Max. 4.73 (0.186) |
B：Min. 3.07 (0.121) ~ Max. 3.41 (0.134) |
C：Min. 0.55 (0.022) ~ Max. 0.85 (0.033) |
D：Min. 0.30 (0.012) |
| PRCP-MSMF200 |
Style：Style 1
|
A：Min. 4.37 (0.172) ~ Max. 4.73 (0.186) |
B：Min. 3.07 (0.121) ~ Max. 3.41 (0.134) |
C：Min. 0.55 (0.022) ~ Max. 0.85 (0.033) |
D：Min. 0.30 (0.012) |
| PRCP-MSMF250/16X |
Style：Style 2
|
A：Min. 4.37 (0.172) ~ Max. 4.83 (0.190) |
B：Min. 3.07 (0.121) ~ Max. 3.41 (0.134) |
C：Min. 0.70 (0.028) ~ Max. 1.60 (0.063) |
D：Min. 0.30 (0.012) |
| PRCP-MSMF260 |
Style：Style 1
|
A：Min. 4.37 (0.172) ~ Max. 4.73 (0.186) |
B：Min. 3.07 (0.121) ~ Max. 3.41 (0.134) |
C：Min. 0.48 (0.019) ~ Max. 0.85 (0.033) |
D：Min. 0.30 (0.012) |
Recommended Pad layout
- Unit:
- mm
(inch)
Solder Reflow Recommendations
- PRCP-MSMF models are intended for reflow soldering (including, not limited to heating plate, hot air, IR, nitrogen, and vapor phase).
- Wave soldering is permissible only if the device is on the top of the PCB, opposite the heat source.
- Hand soldering is not recommended for these devices.
- All temperatures refer to the topside of the device, measured on the device body surface.
- If reflow temperatures exceed the recommended profile, devices may not meet the published specifications.
- Compatible with Pb and Pb-free solder reflow profiles.
- Excess solder may cause a short circuit.
| Profile Feature | Pb-Free Assembly |
|---|---|
| Average Ramp-Up Rate (Tsmax to Tp) | 3 ℃ / Sec max. |
| PREHEAT Temperature Min (Tsmin) Temperature Max (Tsmax) Time (Tsmin to Tsmax) (ts) |
150 ℃ 200 ℃ 60 ~ 180 Sec |
| TIME MAINTAINED ABOVE: Temperature (TL) Time (tL) |
217 ℃ 60 ~ 150 Sec |
| Peak Temperature (Tp) | 260 ℃ |
| Time within 5 ℃ of Actual Peak Temperature (tp) | 20 ~ 40 Sec |
| Ramp-Down Rate | 6 ℃ / Sec max. |
| Time 25 ℃ to Peak Temperature | 8 minutes max. |
Warranty
The Warranty period for the product shall be one year. A failure due to causes attributed to design or manufacturing defects during the period one year from the date of delivery shall be repaired or replaced free of charge.
However, the following shall be excluded from the warranty:
However, the following shall be excluded from the warranty:
Failure or damage caused by improper use and careless operation in violation of the catalog and specification.
Failure or damage caused by inappropriate modification, adjustment, or repair.
Failure or damage caused by technically and sci en tif i cally unpredictable factors.
Failure or damage caused by acts of God, fire, or other unavoidable accidents.
The term “Warranty” herein referred to shall imply the warranty for the product unit only, and damages from failure of the product shall be excluded.
This product is not intended to be used for equipment that may cause direct harm to life or body, or equipment that may cause significant physical damage. (Aerospace and space related equipment, railway vehicles, nuclear power equipment, military equipment, etc.) We are not liable for any damages arising from the use of this product for purposes not intended by us.
Furthermore, we ask you to perform a swift incoming inspection for delivered products and we wouldalso appreciate if full attention is given to the storage conditions of the product.
Documents
Environmental Data
- ●The above contents and descriptions are subject to change without notice.
