Trimmer potentiometer CT-6
-
CT-6
-
CT-6
- ●To buy this product, please go to the following Online Web stores.
Low Cost General-Purpose Type
FeaturesFeatures
- RoHS compliant
- Various configurations to choose from
- Wide variety (14 types)
- “O” ring sealed and washable
- In this series, material data sheets ideal for REACH-SVHC
surveys etc. can be downloaded in chemSHERPA-AI format. - Download chemSHERPA-AI from the list of P/N below
Electrical Characteristics
| Nominal resistance range | 10 Ω ~ 2 MΩ |
|---|---|
| Resistance tolerance | ± 10 % |
| Power ratings | 0.5 W (70 °C) 0 W (120 °C) |
| Resistance law | Linear law（B） |
| Maximum input voltage | DC200 V or power rating, whichever is smaller |
| Maximum wiper current | 100 mA or power rating, whichever is smaller |
| Effective electrical angle | 220 ° (1 turn) |
| End resistance | 1 % or 2 Ω , whichever is greater |
| C.R.V. | 1 % or 3 Ω , whichever is greater |
| Operating temp. range | −55 ~ 120 °C |
| Temp. coefficient | 10 Ω ~ 20 Ω : ± 250 10-6/°C maximum 50 Ω ~ 2 MΩ : ± 100 10-6/°C maximum |
| Insulation resistance | 1000 MΩ minimum (DC500 V) |
| Dielectric strength | AC500 V, 60 s |
| Net weight | Approx. 0.51 g (CT-6EP, EW, ER, EV) Approx. 0.65 g (CT-6ES, EX, EH, EN) Approx. 0.92 g (CT-6EF) |
Mechanical Characteristics
| Mechanical angle | 260 ° (1 turn) |
|---|---|
| Operating torque | 2 ~ 20 mN·m {20 ~ 204 gf·cm} |
| Stop strength | 50 mN･m {20 ~ 204 gf·cm} minimum |
| Rotational life | 200 cycles [ΔR/R ≦ ± (2 Ω +3 %)] |
| Teminal strength | 10 N {1.02 kgf} minimum（Tensile strength） |
| Thrust to rotor | 10 N {1.02 kgf} minimum |
| Solderability | 245 ± 3 °C, 2 ~ 3 s |
{ }: Reference only
Environmental Characteristics
| Test item | Test conditions | Specifications |
|---|---|---|
| Thermal shock | −65 ~ 125 °C(0.5 h), 5 cycles | [Δ R/R ≦ 1 %] [S.S. ≦ 1 %] |
| Humidity | −10 ~ 65 °C (Relative humidity 80 ~ 98 %), 10 cycles, 240 h | [Δ R/R ≦ 2 %] |
| Shock | 981 m/s2, 6 ms ,6 directions for 3 times each | [Δ R/R ≦ 1 %] [S.S. ≦ 1 %] |
| Vibration | Amplitude 1.52 mm or Acceleration 196 m/s², 10 ~ 2000 Hz, 3 directions, 12 times each | [Δ R/R ≦ 1 %] [S.S. ≦ 1 %] |
| Load life | 70 °C, 0.5 W, 1000 h | [Δ R/R ≦ 3 %] [S.S. ≦ 1 %] |
| Low temp. operation | −55 °C, 2 h | [Δ R/R ≦ 2 %] [S.S. ≦ 2 %] |
| High temp. exposure | 120 °C, 250 h | [Δ R/R ≦ 3 %] [S.S. ≦ 2 %] |
| Immersion seal | 85 °C, 60 s | No leaks (No continuous bubbles) |
| Soldering heat | Flow soldering :260 ± 3 °C, 5 ~ 6 s, two times Max. Manual soldering : 380 ± 10 °C, 3 ~ 4 s |
[Δ R/R ≦ 1 %] |
Δ R/R: Change in total resistance
S.S.: Setting stability
Maximum Input Ratings
| Nominal resistance values(Ω) | Resistance code | Maximum input voltage (V) | Maximum wiper current(mA) |
|---|---|---|---|
| 10※ | 100 | 1.00 | 100 |
| 20※ | 200 | 2.00 | 100 |
| 50 | 500 | 5.00 | 100 |
| 100 | 101 | 7.07 | 70.7 |
| 200 | 201 | 10.0 | 50.0 |
| 500 | 501 | 15.8 | 31.6 |
| 1k | 102 | 22.4 | 22.4 |
| 2k | 202 | 31.6 | 15.8 |
| 5k | 502 | 50.0 | 10.0 |
| 10k | 103 | 70.7 | 7.07 |
| 20k | 203 | 100 | 5.00 |
| 50k | 503 | 158 | 3.16 |
| 100k | 104 | 200 | 2.00 |
| 200k | 204 | 200 | 1.00 |
| 500k | 504 | 200 | 0.40 |
| 1M | 105 | 200 | 0.20 |
| 2M | 205 | 200 | 0.10 |
The products indicated by ※ mark are manufactured upon receipt of order basis.
Part Number Designation
| CT-6 | E | T | A | 5 kΩ (502) |
|---|---|---|---|---|
|
Series |
Terminal pins E: Sn (Lead-free) |
Packaging form T: Taping (Ammo pack type) M: Magazine (Stick) Blank: Bulk in plastic bag |

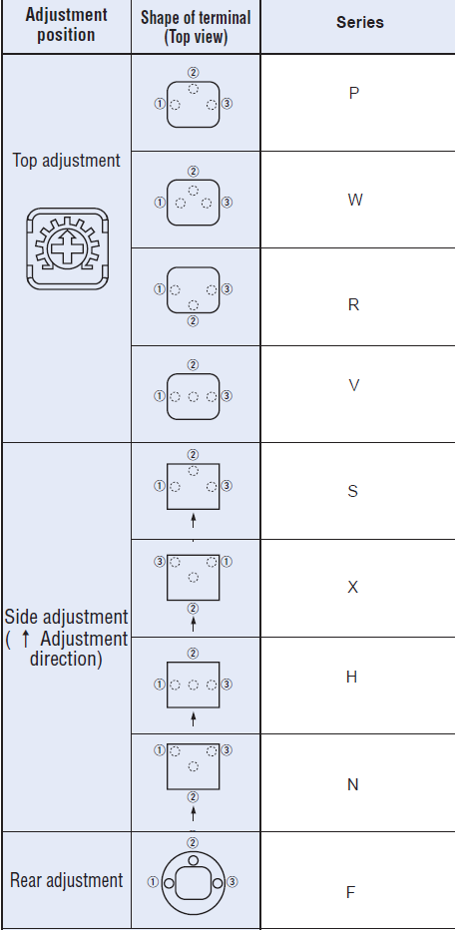

Adjustment position P: Top adjustment S: Side adjustment W: Top adjustment X: Side adjustment R: Top adjustment H: Side adjustment V: Top adjustment N: Side adjustment F: Rear adjustment *Classified by pin position |
Resistance value (Resistance code) |
| Nominal resistance values | 10Ω*, 20Ω*, 50Ω, 100Ω, 200Ω, 500Ω, 1kΩ, 2kΩ, 5kΩ, 10kΩ, 20kΩ, 50kΩ, 100kΩ, 200kΩ, 500kΩ, 1MΩ, 2MΩ |
|---|
When ordering, please be sure to include the above nominal resistance value at the end of the part number in the table list below. *10 Ω item, 20 Ω item are made to order.
For resistance code, please refer to the Maximum Input Ratings table in the previous section.
List of Part Numbers
CAD and chemSHERPA-AI (a material data sheet ideal for REACH surveys, etc. / version: 2.10.00 or 2.09.00 available) can be downloaded from the button for each P/N in the table below. *Need to log in to download.
| Part No. | Adjustment position | Packaging spec | Remarks | Material data | CAD | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CT-6ETP | Top adjust | Taping* 1000 pcs./reel |
The pin length of CT-6ETP and
CT-6EMP is different from CT-6EP. The pin length of CT-6ETP and CT-6EMP is different from CT-6EP.
|
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.10.00 or the previous ver. 2.09.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CT-6EMP | Top adjust | Magazine 75 pcs./stick |
The pin length of CT-6ETP and
CT-6EMP is different from CT-6EP. The pin length of CT-6ETP and CT-6EMP is different from CT-6EP.
|
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.10.00 or the previous ver. 2.09.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CT-6EP | Top adjust | Bulk 50 pcs./pack |
The pin length of CT-6ETP and
CT-6EMP is different from CT-6EP. The pin length of CT-6ETP and CT-6EMP is different from CT-6EP.
|
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.10.00 or the previous ver. 2.09.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CT-6EW | Top adjust | Bulk 50 pcs./pack |
- |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.10.00 or the previous ver. 2.09.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CT-6ER | Top adjust | Bulk 50 pcs./pack |
- |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.10.00 or the previous ver. 2.09.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CT-6EV | Top adjust | Bulk 50 pcs./pack |
- |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.10.00 or the previous ver. 2.09.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CT-6ETV | Top adjust | Taping* 1000 pcs./reel |
- |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.10.00 or the previous ver. 2.09.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CT-6EMS | Side adjust | Magazine 75 pcs./stick |
The pin length of CT-6EMS is different from CT-6ES. |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.10.00 or the previous ver. 2.09.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CT-6ES | Side adjust | Bulk 50 pcs./pack |
The pin length of CT-6EMS is different from CT-6ES. |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.10.00 or the previous ver. 2.09.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CT-6EX | Side adjust | Bulk 50 pcs./pack |
- |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.10.00 or the previous ver. 2.09.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CT-6ETH | Side adjust | Taping* 1000 pcs./reel |
The pin length of CT-6ETH is different from CT-6EH. |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.10.00 or the previous ver. 2.09.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CT-6EH | Side adjust | Bulk 50 pcs./pack |
The pin length of CT-6ETH is different from CT-6EH. |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.10.00 or the previous ver. 2.09.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CT-6EN | Side adjust | Bulk 50 pcs./pack |
- |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.10.00 or the previous ver. 2.09.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CT-6EF | Rear adjust | Bulk 50 pcs./pack |
- |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.10.00 or the previous ver. 2.09.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
*
Taping: Ammo pack type
※
Taping and magazine specifications are not sold separately and must be purchased in taping or stick units.

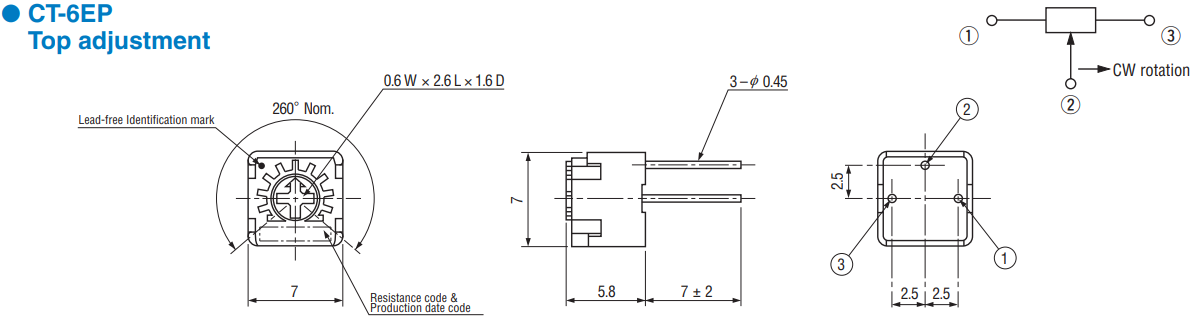

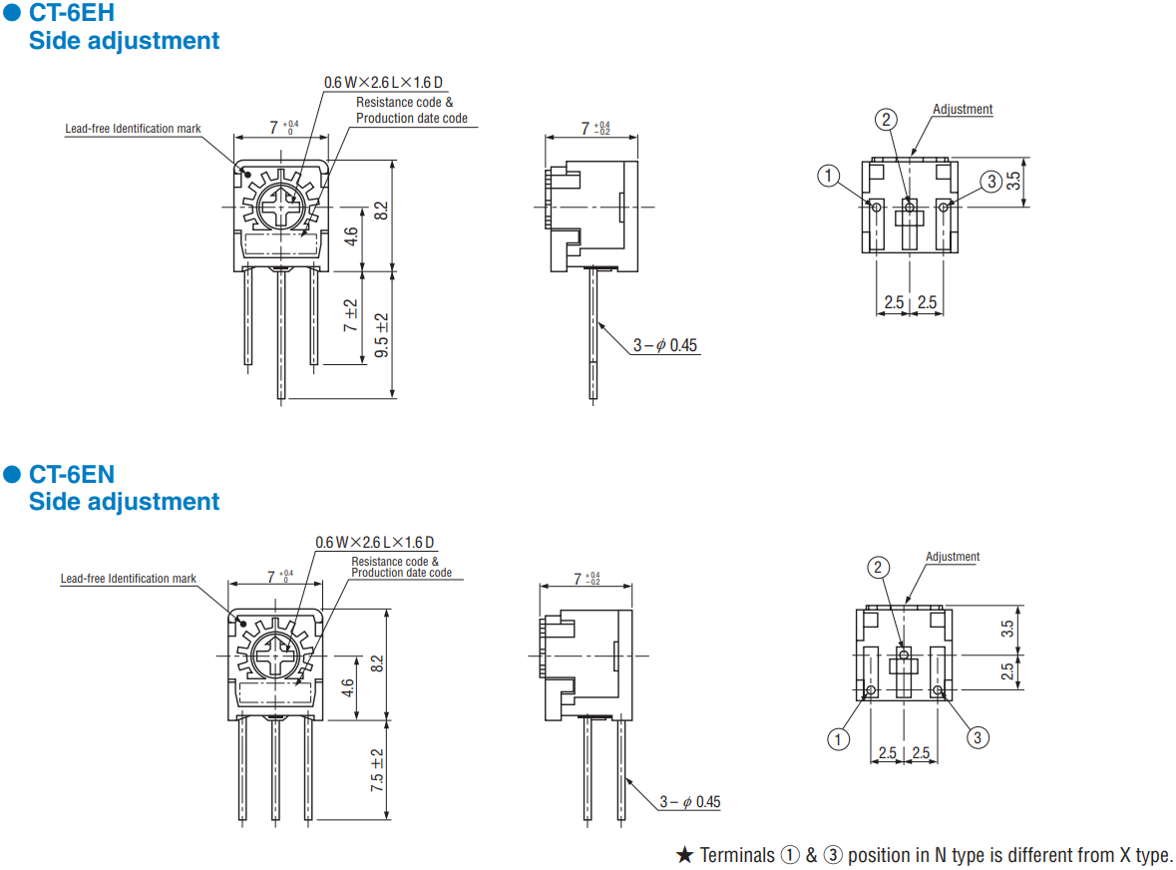

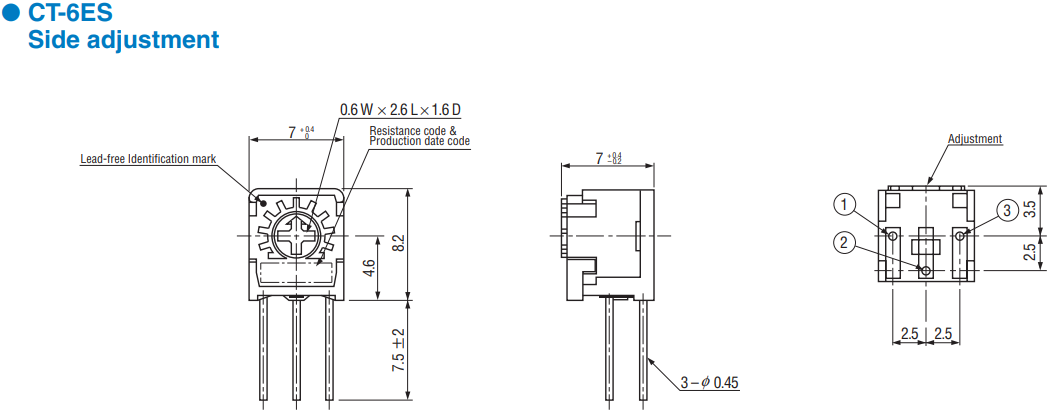

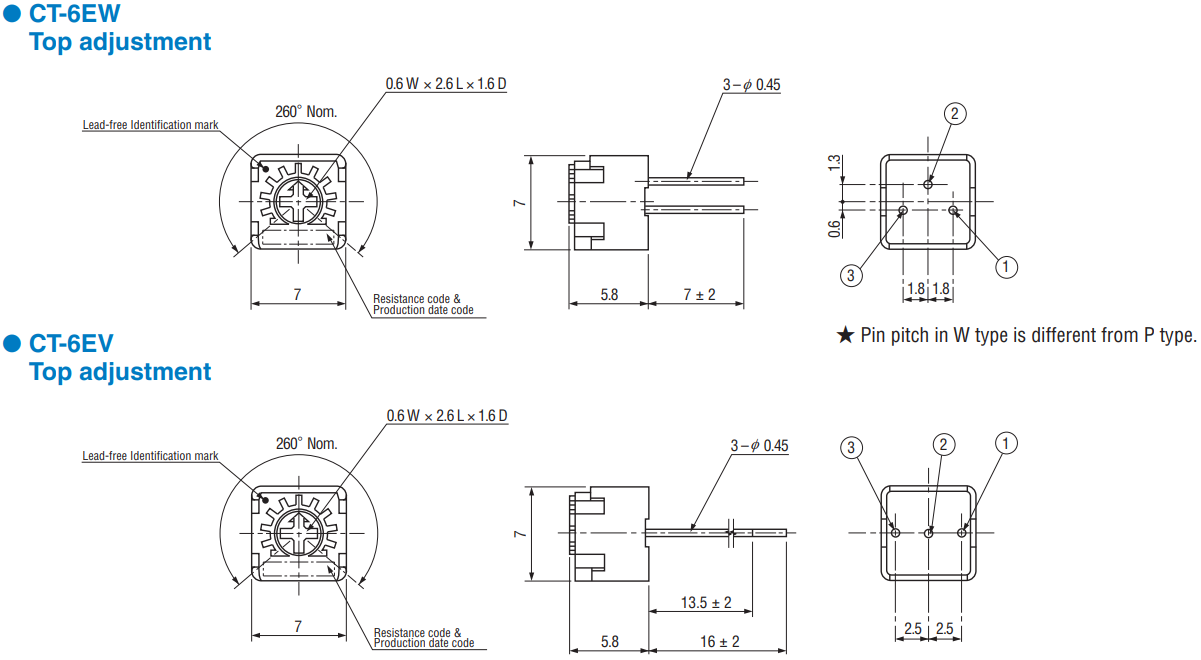

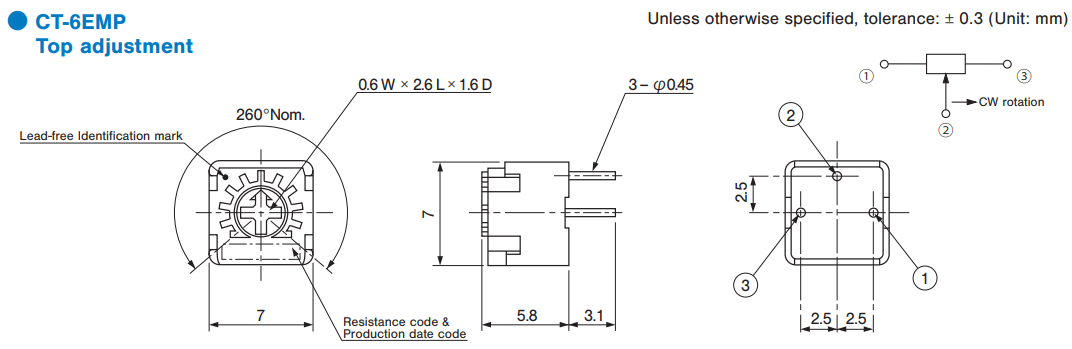

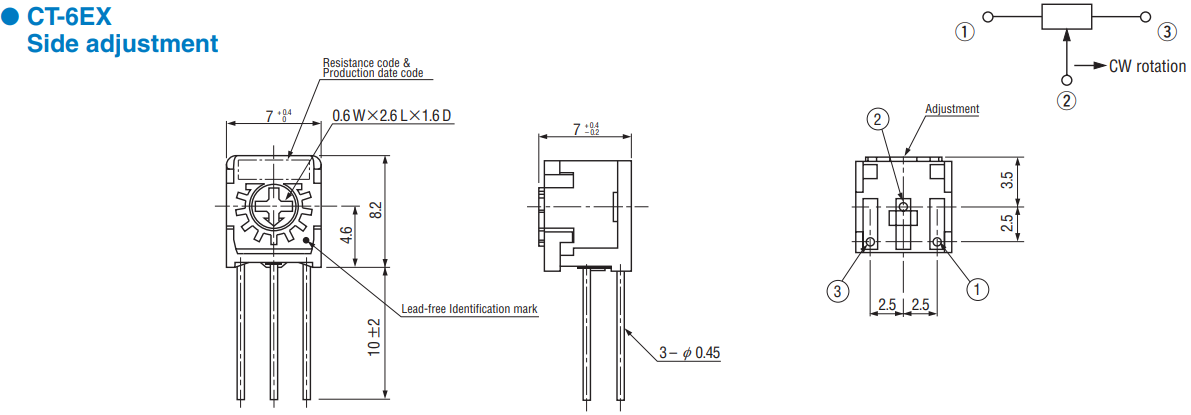

Outline Dimensions
Packaging Specifications

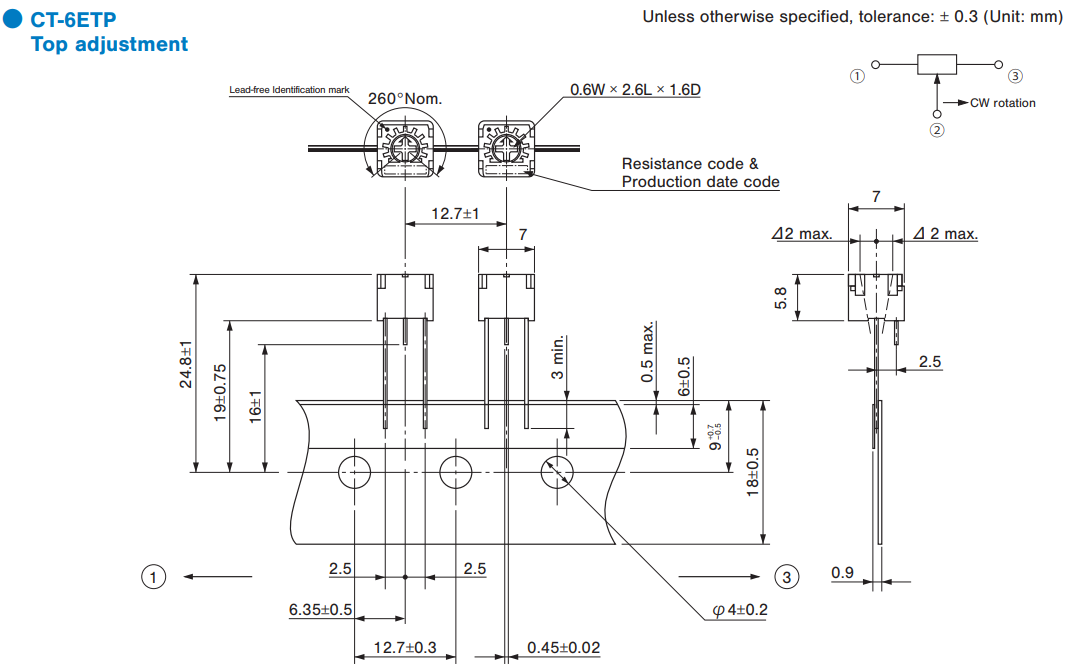

〈Taping packaging specifications〉
Taping version is packaged in 1000 pcs. per reel.
Orders will be accepted for units of 1000 pcs., i.e., 1000, 2000, 3000 pcs., etc.
Taping version (ammo pack type) is boxed with one reel (1000 pcs.).

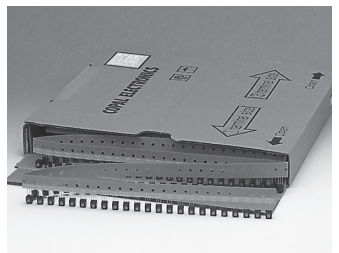

Ammo Pack
Package size: 330 mm × 330 mm × 45 mm.
The leader and end of the tape have an empty part of minimum 300 mm respectively.
There are two tape outlets on the package for different terminal alignment directions, for which details refer to the sketch above.(e.g.)
When the tape is fed from the right outlet marked ③ , #3 terminal comes out first.
Gross weight of the boxing version (ETV:Approx. 840 g,ETH:Approx. 930 g,ETP:Approx. 850 g)

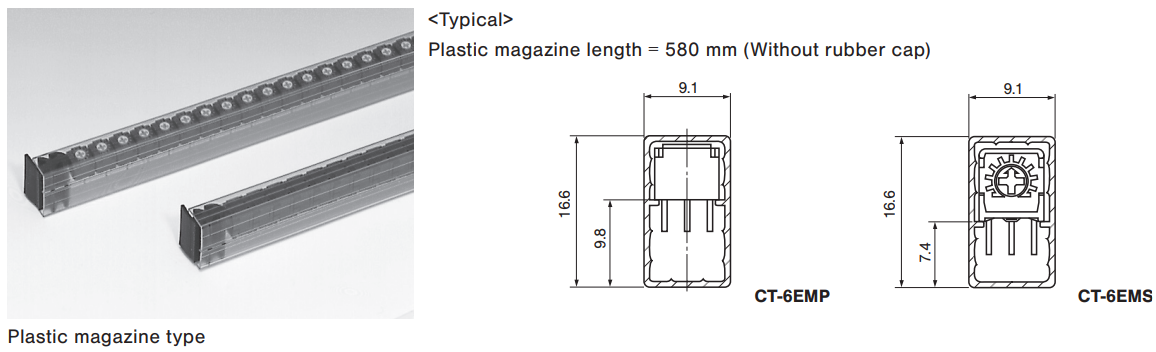

〈Magazine packaging specifications〉
Magazine is packaged 75 pcs. per stick.Orders will be accepted for units of 75 pcs. i.e., 150, 225 pcs., etc.
Magazine is packed 3000 pcs. sticks per box.
(Unit: mm)
〈Bulk pack specifications〉
Unit of bulk pack in a plastic bag is 50 pcs. per pack.
Boxing of bulk in a plastic bag is performed with 200 pcs. (CT-6EF is 100 pcs.) per box.
