Toggle switch CFT2
- ●To buy this product, please go to the following Online Web stores.
Ultra-Miniature Toggle Switch
FeaturesFeatures
-
Ultra-miniature toggle switch for high density mounting.
-
Washable.
-
Terminal pin pitch: 2.54 mm.
-
Independent detent mechanism ensures light operational feel.
-
Clip contact mechanism for long-term contact reliability.
-
Gold-plated contacts.
Specifications
| Rating | Max. 28VDC 0.4VA max. Rating 1μ A 20mVDC |
|---|---|
| Initial contact resistance | 100mΩ max.(1.5mA 200μVAC) |
| Dielectric strength | 250VAC 1 minute |
| Insulation resistance | 500MΩ min. (250VDC) |
| Electrical life | 10,000 cycles at max. rating. 50,000 cycles at min. rating(D.E type) 30,000 cycles at min. rating(G.H type) |
| Mechanical life | D.E type 50,000 cycles G.H type 30,000 cycles |
| Operating temperature range | －40℃～＋85℃ |
| Storage temperature range | －40℃～＋85℃ |
Part Numbering
| CFT2 - | 2 | N | C4 - | A | W |
|---|---|---|---|---|---|
|
Series Actuator |
Number of poles 01: 1 bit |
Switching function D:ON-ON |
Terminal style C:PC Straight |
Actuator shape A:Standard |
Packaging spec W:Tray |
List of part numbers
| Part Number | Switching function | Circuit | Terminal style | CAD |
|---|---|---|---|---|
| CFT2-1DC-AW | ON-ON | SPDT | PC Straight | |
| CFT2-1EC-AW | ON-OFF-ON | SPDT | PC Straight | |
| ☆CFT2-1GC-AW | (ON)-OFF-(ON) | SPDT | PC Straight | |
| ☆CFT2-1HC-AW | ON-OFF-(ON) | SPDT | PC Straight | |
| CFT2-1DC4-AW | ON-ON | SPDT | Right angle | |
| CFT2-1EC4-AW | ON-OFF-ON | SPDT | Right angle | |
| ☆CFT2-1GC4-AW | (ON)-OFF-(ON) | SPDT | Right angle | |
| ☆CFT2-1HC4-AW | ON-OFF-(ON) | SPDT | Right angle | |
| CFT2-1DC6-AW | ON-ON | SPDT | Vertical mounting | |
| CFT2-1EC6-AW | ON-OFF-ON | SPDT | Vertical mounting | |
| ☆CFT2-1GC6-AW | (ON)-OFF-(ON) | SPDT | Vertical mounting | |
| ☆CFT2-1HC6-AW | ON-OFF-(ON) | SPDT | Vertical mounting |
☆：Semi-standard products. （ON）：Momentary.
Outline Dimensions
(Unit:mm)
Soldering Specifications
- Manual Soldering
Device：Soldering iron
350℃, Max.; 3 seconds, Max. - Auto Soldering
Device：Jet wave type or dip type
260℃, Max.; 3 to 5 seconds (One time)
Total dip time within 10 sec.

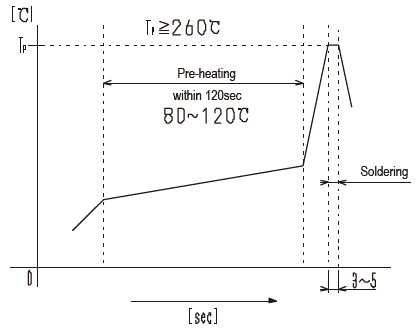

※Pre-heating should be done at temperatures ranging from 80℃ to 120℃ and within 120 sec.
- When soldering two or more terminals to the common land, use the solder resist to solder them independently.
Flux Cleaning
- Solvent : Fluorine or Alcohol type.
- Cleaning after soldering should be done after the PC board is exposed to room temperature (30℃ or below) for 1 to 2 hours.
- Do not use ultrasonic cleaning.

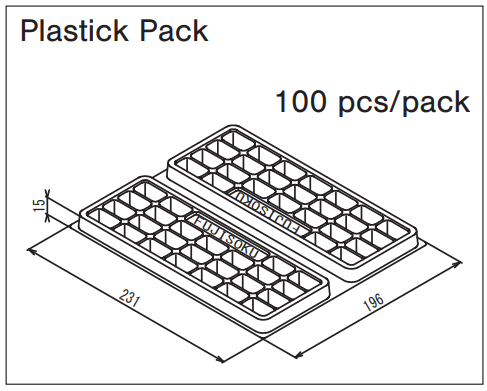

Packaging Specification
(Unit:mm)
Documents
Environmental Data
- ●The above contents and descriptions are subject to change without notice.
