Toggle switch ATE

●To buy this product, please go to the following Online Web stores.

Subminiature Toggle Switch

FeaturesFeatures

Twin-contact clip mechanism for high reliability.
Process sealed structure
Gold-plated contacts.
Terminal pin pitch: 2.54 mm.
Independent detent mechanism ensures lightoperational feel.
UL recognized (Excluding ATE-J series with plastic cap/rocker)

Specifications

Rating	Max.:50mA 60VAC/DC 0.4VA AC/DC Min.:1μA 20mVAC/DC UL:48VAC/DC 50mA
Initial contact resistance	50mΩ Max.(1.5mA 200μVAC)
Dielectric strength	250VAC 1 minute
Insulation resistance	500MΩ min. (500VDC)
Electrical life	10,000 cycles at 0.4VA rating. 50,000 cycles at 0.4VA rating（. D.E type） 30,000 cycles at 0.4VA rating（. F.G.H type）
Mechanical life	D.E type 50,000 cycles F.G.H type 30,000 cycles
Operating temperature range	-20℃～＋85℃
Storage temperature range	-40℃～＋85℃

Part Number Designation

A	TE	1	D -	2	M	3	- 10 - Z
Series	Actuator type TE: Toggle	No. of poles 1: 1 pole 2: 2 poles	SW function D: On-On E: On-Off-On F: On-(On) G: (On)-Off-(On) H: On-Off-(On)	Terminals 2: PC straight 5: R/A 0.2" pitch 6: R/A 0.3" pitch 7: V/M	Actuator shape M: Standard F: Flatted toggle J: Plastic knob type	Bracket 3: Without bracket	Clip mechanism

D -

- 10 - Z

Series

Actuator type

TE:

Toggle

No. of poles

1 pole

2 poles

SW function

D: On-On

E: On-Off-On

F: On-(On)

G: (On)-Off-(On)

H: On-Off-(On)

Terminals

2: PC straight

R/A 0.2" pitch

R/A 0.3" pitch

V/M

Actuator shape

Standard

Flatted toggle

Plastic knob type

Bracket

Without bracket

Clip mechanism

List of Part Numbers

Part No.	Circuit / Toggle shape	Terminals	SW function	CAD
Part No.：ATE1D-2M3-10-Z	SPDT / Standard	PC straight	ON-ON	3D CAD（Any Model）
Part No.：ATE2D-2M3-10-Z	DPDT / Standard	PC straight	ON-ON	3D CAD（Any Model）
Part No.：ATE1D-5M3-10-Z	SPDT / Standard	R/A 0.2 inch pitch	ON-ON	3D CAD（Any Model）
Part No.：ATE2D-5M3-10-Z^☆	DPDT / Standard	R/A 0.2 inch pitch	ON-ON	3D CAD（Any Model）
Part No.：ATE1D-6M3-10-Z	SPDT / Standard	R/A 0.3 inch pitch	ON-ON	3D CAD（Any Model）
Part No.：ATE2D-6M3-10-Z	DPDT / Standard	R/A 0.3 inch pitch	ON-ON	3D CAD（Any Model）
Part No.：ATE1D-2F3-10-Z	SPDT / Flatted toggle	PC straight	ON-ON	3D CAD（Any Model）
Part No.：ATE2D-2F3-10-Z^☆	DPDT / Flatted toggle	PC straight	ON-ON	3D CAD（Any Model）
Part No.：ATE2D-6F3-10-Z^☆	DPDT / Flatted toggle	R/A 0.3 inch pitch	ON-ON	3D CAD（Any Model）
Part No.：ATE1E-2M3-10-Z	SPDT / Standard	PC straight	ON-OFF-ON	3D CAD（Any Model）
Part No.：ATE2E-2M3-10-Z^☆	DPDT / Standard	PC straight	ON-OFF-ON	3D CAD（Any Model）
Part No.：ATE1E-5M3-10-Z^☆	SPDT / Standard	R/A 0.2 inch pitch	ON-OFF-ON	3D CAD（Any Model）
Part No.：ATE1E-6M3-10-Z	SPDT / Standard	R/A 0.3 inch pitch	ON-OFF-ON	3D CAD（Any Model）
Part No.：ATE1E-2F3-10-Z	SPDT / Flatted toggle	PC straight	ON-OFF-ON	3D CAD（Any Model）
Part No.：ATE1F-2M3-10-Z	SPDT / Standard	PC straight	ON-(ON)	3D CAD（Any Model）
Part No.：ATE1F-6M3-10-Z	SPDT / Standard	R/A 0.3 inch pitch	ON-(ON)	3D CAD（Any Model）
Part No.：ATE1F-6F3-10-Z^★	SPDT / Flatted toggle	R/A 0.3 inch pitch	ON-(ON)	3D CAD（Any Model）
Part No.：ATE1G-2M3-10-Z	SPDT / Standard	PC straight	(ON)-OFF-(ON)	3D CAD（Any Model）
Part No.：ATE2G-2M3-10-Z^☆	DPDT / Standard	PC straight	(ON)-OFF-(ON)	3D CAD（Any Model）
Part No.：ATE1G-5M3-10-Z^☆	SPDT / Standard	R/A 0.2 inch pitch	(ON)-OFF-(ON)	3D CAD（Any Model）
Part No.：ATE2G-5M3-10-Z^☆	DPDT / Standard	R/A 0.2 inch pitch	(ON)-OFF-(ON)	3D CAD（Any Model）
Part No.：ATE1G-6M3-10-Z^☆	SPDT / Standard	R/A 0.3 inch pitch	(ON)-OFF-(ON)	3D CAD（Any Model）
Part No.：ATE2G-2F3-10-Z^☆	DPDT / Flatted toggle	PC straight	(ON)-OFF-(ON)	3D CAD（Any Model）
Part No.：ATE1G-5F3-10-Z^★	SPDT / Flatted toggle	R/A 0.2 inch pitch	(ON)-OFF-(ON)	3D CAD（Any Model）
Part No.：ATE1H-2M3-10-Z^☆	SPDT / Standard	PC straight	ON-OFF-(ON)	3D CAD（Any Model）
Part No.：ATE1H-5M3-10-Z^★	SPDT / Standard	R/A 0.2 inch pitch	ON-OFF-(ON)	3D CAD（Any Model）
Part No.：ATE1H-6M3-10-Z^☆	SPDT / Standard	R/A 0.3 inch pitch	ON-OFF-(ON)	3D CAD（Any Model）
Part No.：ATE1H-5F3-10-Z^★	SPDT / Flatted toggle	R/A 0.2 inch pitch	ON-OFF-(ON)	3D CAD（Any Model）

☆: Semi-standard products /
★: Made to order products

Optional Accessories

Actuator	Part No.	Color
Color Cap for ATE-2M/5M/6M (for Standard Toggle type)	140000470174	White
	140000470175	Red
	140000470173	Black
	140000470179	Gray

Bracket
Applicable	Models	ATM-2M/2F (Toggle shape: Standard or Flatted, Terminals: PC straight)
	Poles	1 pole	2 poles
	Box size	5 mm	7.5 mm	5 mm
Outline dimensions
Part No.		140000640314	140000640315	140000640318

Outline Dimensions

(Unit:mm)

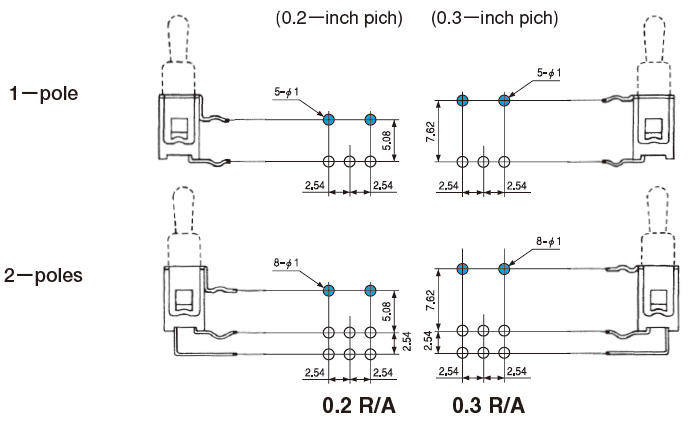

Right Angle Terminals

The space between the terminal rows are available in two dimensions: 0.2 inches (5.08 mm) and 0.3 inches (7.62 mm).
[Example] 0.2-inch pitch: ATE1D-5M3-10-Z 0.3-inch pitch: ATE1D-6M3-10-Z

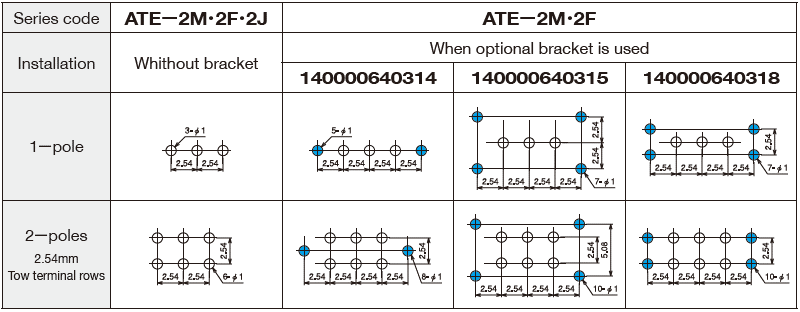

PC Hole Layouts

◆PC terminal

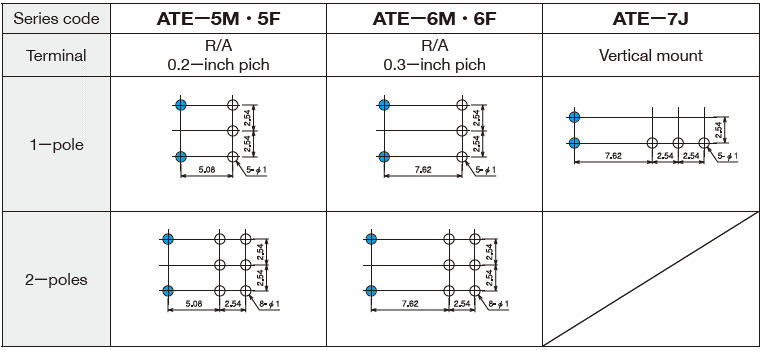

◆Right Angle terminal・Vertical Mount terminal

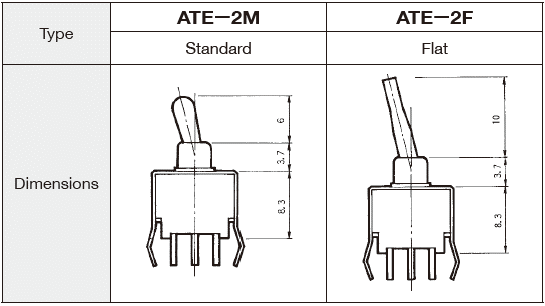

Bracket Mounted Dimensions

Soldering Specifications

Manual Soldering
Device ： Soldering iron
380℃, Max.; 3 seconds, Max.

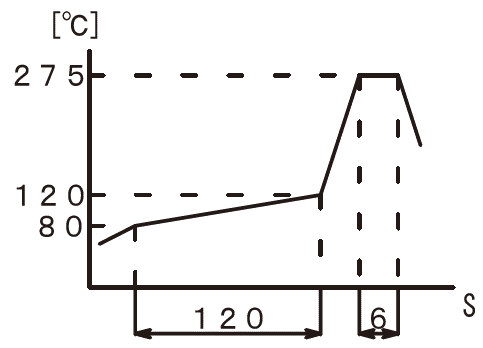

Auto Soldering
Device ： Jet wave type or dip type
275℃, Max.; 6 seconds, Max.　
Pre-heating should be done at temperatures ranging from 80℃　to 120℃ and within 120 seconds
Install the cap/rocker accessory after soldering and cleaning.

Flux Cleaning

Solvent : Fluorine or Alcohol type.
Cleaning after soldering should be done after the terminal temperature falls to 90℃ or below, or after leaving the switch for five minutes or longer at room temperature.

Mounting of Switch

Use PC boards with hole diameter of 1mm.
Do not bend the terminal pins before mounting the switch on the PC board.

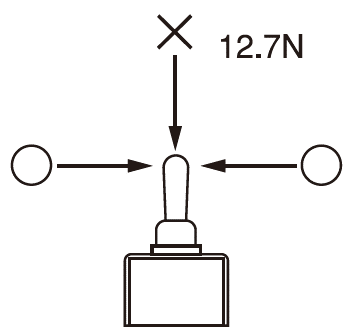

After mounting the switch, do not place the device in such a way that the device weight will be applied on to the actuator of the switch.
Do not apply load exceeding 12.7 N to the actuator.
