Pushbutton switch DP4
- ●To buy this product, please go to the following Online Web stores.
Non-Illuminated Type
-
Flexible Circuit Configuration The switch incorporates two 2-circuit switches which provide flexible circuit configuration.
-
High Contact Reliability Gold-plated contact with self-cleaning, twin contact mechanism provides high contact reliability.
-
PC Board Mount Direct mounting to PC board. The terminal pin layout is in inch pitch.
-
Ideal For Use in Dry Circuit (Gold-Plated Contact) When a switch is used under bad environmental conditions (sulfidizing gas, etc.), contact surface may be affected. Gold-plated contact is recommended especially for low current applications.
Specification
| Rating | Non-Switching:DC50V 100mA Switching:100mA 5VDC（Gold DC0.2mV 1μA min.） |
|---|---|
| Initial Contact Resistance |
100mΩ max. （1.5mA 200μVAC） |
| Dielectric Strength |
250VAC 1 minute |
| Insulation Resistance |
1,000MΩ min. （DC250V） |
| Electrical Life | 200,000 operations |
| Travel |
2.5mm |
| Operating Force |
2.45±0.98N |
| Operating Temperature Range | －25～＋75℃ |
| Storage Temperature Range | －25～＋85℃ |
| Contact Bounce | 5 ms max. |
Part Number Designation
| DP | 4 - | 200 | B | - Z |
|---|---|---|---|---|
|
Series |
Structure |
Registration No. |
Contact plating Blank: Silver plated B: Gold plated |
|
List of Part Numbers
| Part No. | Contact plating | SW function | No. of poles | SW function | CAD |
|---|---|---|---|---|---|
| Part No.：DP4－200－Z | Silver plated | Momentary | 2 poles | ON－(ON) | |
| Part No.：DP4－200B－Z | Gold plated | Momentary | 2 poles | ON－(ON) |
Optional Accessories
| Accessories | Part No. | Color | Ouline dimensions |
|---|---|---|---|
| Color button | 140008050103 | White |  |
| 140008050105 | Red | ||
| Bracket | 140000340157 | Black |  |
| 140000340162 | Gray |
Soldering
- Manual soldering
Device: Soldering iron
380°C, Max. 3 s Max. - Auto soldering
Device: Jet wave or dip type
275±10℃ 6 s Max. ・Preheat time shall be 120 s max. at 80～120 ℃.
・ For DPL type, soldering should be done with the lock released.

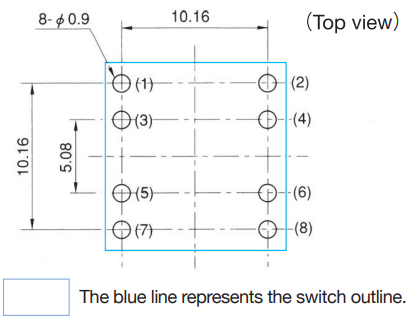

PC Hole Layouts
Circuit Diagram
※Do not remove the button when the switch is locked.
Documents
Environmental Data
