Handheld digital manometer PG-100B

PG-100B

PG-100B

●To buy this product, please go to the following Online Web stores.

Handheld digital manometer PG-100B

FeaturesFeatures

New lineup of PG-100 series for measuring gas and liquid pressure
Capable of measuring Absolute pressure (PG-100B-102A)
Excellent stability
High precision semiconductor chip combined with temperature compensation circuit guarantee excellent stability.
Long battery life
Lasts more than 1000hrs with two AAA dry batteries.
Automatic power off function
Easy, one-handed operation
Easy-to-read large LCD display
Pressure unit selectable type also available (PG-100B-****-W)

Standard specifications[kPa version]

Unless otherwise specified, the specs are defined at an ambient temperature of 25±5 °C.

General specifications	Pressure reference	Gauge		Absolute
	Model number	102R	103R	102A
	Rated pressure range	−100~100kPa	−100~1000kPa	0~100 kPa abs
	Maximum pressure	200kPa	2000kPa	200 kPa abs
	Break-down pressure	300kPa	3000kPa	300 kPa abs
	Pressure medium	Gases/liquids compatible with SUS316L
	Operating temp. range	0 ~ 50°C
	Compensated temp. range	0 ~ 50°C
	Operating humidity	15 ~ 85%RH（No condensation）
	Storage temp.	−20 ~ 70°C（Atmospheric pressure, humidity 65 %RH maximum）
	Pressure port	MM 5 female
	Net weight	Approx. 100g
	Power	AAA dry battery DC 1.5 V × 2 Battery life 1000 h minimum
Display	No. of digits	3 1/2
	Display element	LCD
	Rated display range	-100.0 ~ 100.0 kPa	−100 ~ 1000 kPa −. 100 ~ 1.000（MPa version）	00.0 ~ 100.0 kPa
	Display cycle	Approx. 4 times/s
	Integrated accuracy	± 0.5 %F.S. ± 2 digits (at 25 °C ± 5 °C)
	Integrated accuracy	± 1.0 %F.S. ± 2 digits (at 25 °C ± 25 °C)		± 2.0 %F.S. ± 2 digits (at 25 °C ± 25 °C)
	Resolution	1 digit
Analog output	Power supply (External supply)	5 ± 0.5 V DC 5 mA maximum
	Output voltage	0 ~ ± 1.000 V ※ Proportionate to display value
	Output accuracy/Resolution	± 10 mV / 1mV
	Output resistance	Approx. 10 kΩ
	Response	Approx. 10 ms
	Additional function	Auto power off, Display hold, Battery replacement display(LOBAT), Zero point adjustment
	Accessories	Fitting (one touch for 6mm O.D. tube),Insert ring, 2 AAA batteries, strap, protective cover
	Option (Sold seperately)	PG-100B soft carrying case

Standard specifications[Non SI unit version]

※Unless otherwise specified, the specs are defined at an ambient temperature of 25±5 °C.

General specifications	Pressure reference	Gauge
	Model number (mmHg display:compound)	102R-H
	Rated pressure range	-100~100 (-750 ~ 750) kPa(mmHg)
	Maximum pressure	200(1500) kPa(mmHg)
	Break-down pressure	300 (2250) kpa(mmHg)
	Operating temp. range	0~50 °C
	Compensated temp. range	0~50 °C
	Operating humidity	35~85% RH（No condensation）
	Storage temp.	-20~70°C (Atmospheric pressure, humidity 65 %RH maximum）
	Pressure medium	Gases/liquids compatible with SUS316L
	Pressure port	M 5 female
	Net weight	Approx. 100g
	Power	AAA dry battery DC 1.5 V × 2 Battery life 1000 h minimum
Display	No. of digits	3 1/2
	Display element	LCD
	Rated display range (mmHg display)	− 750 ~ 750
	Display cycle	Approx. 4 times/s
	Resolution	± 0.5 %F.S. ± 2 digits (at 25 °C ± 5 °C)
	Resolution	± 1.0 %F.S. ± 2 digits (at 25 °C ± 25 °C)
	Resolution	1 digit
Analog output	Power supply (External supply)	5 ± 0.5 V DC 5 mA maximum
	Output voltage	0 ~ ± 1.000 V ※Proportionate to display value
	Output accuracy/Pesolution	± 10 mV / 1 mV
	Output resistance	Approx. 10 kΩ
	Response	Approx. 10 ms
	Additional function	Auto power off , Display hold, Battery replacement display(LOBAT), Zero point adjustment
	Accessories	Fitting (one touch for 6mm O.D. tube),Insert ring, 2 AAA batteries, strap, protective cover
	Option (Sold seperately)	PG-100B soft carrying case

ENVIRONMENTAL CHARACTERISTICS

Test item	Test conditions（At 25 ± 5 °C)	Permissible change
Vibration	Amplitude 1.5 mm P-P, 10 ~ 55 Hz, 3 directions for 2 hours each (packed)	Indicating accuracy: ± 1 %F.S. maximum
Shock	98.1 m/s² , 3 directions for 3 times each (packed)
Moisture resistance	40 °C, 90 ~ 95 %RH, 240 hrs
Pressure cycling	0 ~ Rated pressure, 10⁶cycles

MODEL NUMBER DESIGNATION

PG-100B-	102R	M	X2	T
Series name	Rated pressure range/Pressure reference　 102R:-100~100 kPa/ Gauge(Compound) 103R:-100~1000 kPa/ Gauge(Compound) 102A:0~100 kPa abs/ Absolute	Unit of display Blank:kPa M:MPa H:mmHg W:Selectable^✽1	Inspection report/Calibration Certificate Blank:Not attached X1:Inspection report X2:Inspection report and Calibration certificate	Traceability system chart Blank:Not attached T:Traceability system chart

PG-100B-

102R

Series name

Rated pressure range/Pressure reference　

102R:-100~100 kPa/

Gauge(Compound)

103R:-100~1000 kPa/

Gauge(Compound)

102A:0~100 kPa abs/

Absolute

Unit of display

Blank:kPa

M:MPa

H:mmHg

W:Selectable^✽1

Inspection report/Calibration Certificate

Blank:Not attached

X1:Inspection report

X2:Inspection report and

Calibration certificate

Traceability system chart

Blank:Not attached

T:Traceability system chart

✽1) 103R range products do not correspond to Unit mmHg of Pressure unit selectable W type.
(Refer to the Pressure unit selectable W type below.)

Pressure unit selectable W type

Pressure range	Unit selectable W type
Pressure range	kPa	MPa	mmHg	in.Hg	mmAq	psi	bar
101R	〇	―	〇	〇	〇	〇	〇
102R	〇	〇	〇	〇	―	〇	〇
103R	〇	〇	―	〇	―	〇	〇

※ " ー" is not supported as a display unit.

LIST OF MODEL NUMBERS

Pressure reference		Gauge(Compound)		Absolute
Rated pressure range (kPa)		-100～100	-100～1000	0 ～ 100（abs）
kPa	Product only	PG-100B-102R	PG-100B-103R	PG-100B-102A
	Inspection report	PG-100B-102R-X1	PG-100B-103R-X1	PG-100B-102A-X1
	Inspection report and Traceability system chart	PG-100B-102R-X1T	PG-100B-103R-X1T	PG-100B-102A-X1T
	Inspection report and Calibration certificate	PG-100B-102R-X2	PG-100B-103R-X2	PG-100B-102A-X2
	Traceability system chart	PG-100B-102R-T	PG-100B-103R-T	PG-100B-102A-T
	Inspection report,Calibration certificate and Traceability system chart	PG-100B-102R-X2T	PG-100B-103R-X2T	PG-100B-102A-X2T
MPa	Product only	―――――――	PG-100B-103R-M	―――――――
	Inspection report		PG-100B-103R-M-X1
	Inspection report and Traceability system chart		PG-100B-103R-M-X1T
	Inspection report and Calibration certificate		PG-100B-103R-M-X2
	Traceability system chart		PG-100B-103R-M-T
	Inspection report,Calibration certificate and Traceability system chart		PG-100B-103R-M-X2T
mmHg	Product only	PG-100B-102R-H	―――――――	―――――――
	Inspection report	PG-100B-102R-H-X1
	Inspection report and Traceability system chart	PG-100B-102R-H-X1T
	Inspection report and Calibration certificate	PG-100B-102R-H-X2
	Traceability system chart	PG-100B-102R-H-T
	Inspection report,Calibration certificate and Traceability system chart	PG-100B-102R-H-X2T
Selectable	Product only	PG-100B-102R-W	PG-100B-103R-W	PG-100B-102A-W
	Inspection report	PG-100B-102R-W-X1	PG-100B-103R-W-X1	PG-100B-102A-W-X1
	Inspection report and Traceability system chart	PG-100B-102R-W-X1T	PG-100B-103R-W-X1T	PG-100B-102A-W-X1T
	Inspection report and Calibration certificate	PG-100B-102R-W-X2	PG-100B-103R-W-X2	PG-100B-102A-W-X2
	Traceability system chart	PG-100B-102R-W-T	PG-100B-103R-W-T	PG-100B-102A-W-T
	Inspection report,Calibration certificate and Traceability system chart	PG-100B-102R-W-X2T	PG-100B-103R-W-X2T	PG-100B-102A-W-X2T

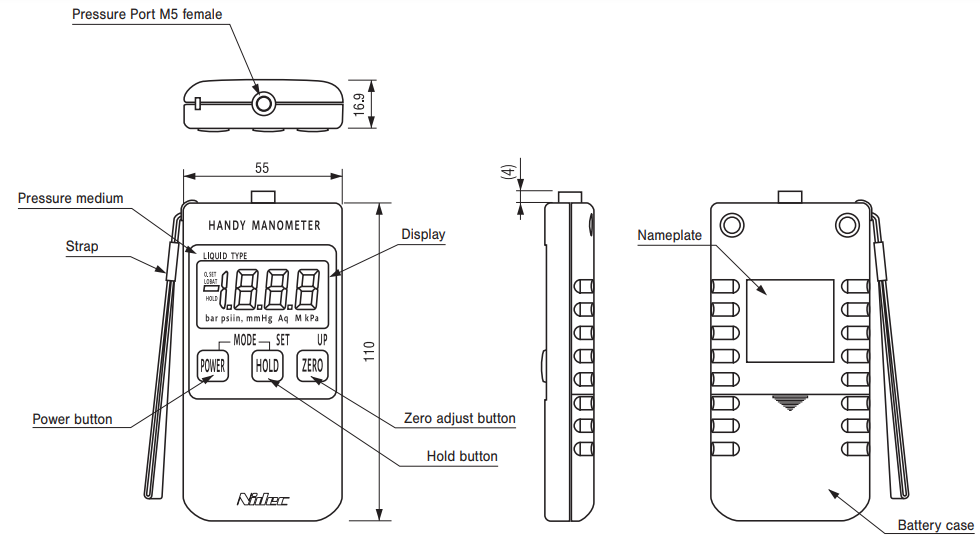

OUTLINE DIMENSIONS

Unless otherwise specified, tolerance : ± 0.5 (Unit: mm)

Troubleshooting

Symptom/Problem	Possible cause	Action/Troubleshooting
Fluctuation in display value.	Fluctuation in display value.	Fluctuation in measured pressure or leakage.	Check for air leaks from the attachments or pipe joints. If no problems are found on the use environment, please contact our sales team.
Zero point deviation	Zero point deviation	Residual pressure in the pipework.	When measuring guage pressure, please make sure that pipework has open access to atmospheric pressure Please set the zero point when the pipe has open access to the atmophere. Should you be measuring absolute pressure then please contact our sales team. For other display deviations, recalibration is required, please contact our sales team.。
No display when power is on.	No display when power is on.	Reversed polarity of dry batteries.	Check the polarity of the dry batteries. If the polarity is correct then replace with new batteries Commercially available AAA batteries are used in the PG-100B. If the system is not restored after replacing the batteries, please contact our sales team.
Display shows "LOBAT".	Display shows "LOBAT".	Low battery.	Replace the battery when "LOBAT" is shown on the display. Please replace the two AAA dry batteries and dispose the used batteries in accordance with the instructions of the local government. Make a zero-adjustment after replacing the batteries.
Flashing display.	Flashing display.	A pressure exceeding 130% of the rating is applied.	Check the source pressure and use within the rated pressure range.
How to mount the attachment	How to mount the attachment		Please refer to "PG-100B Attachment"below.

How to mount the attachment

1. One Touch Fitting

One Touch Fitting(※With washer)

- [Manufacturer / Model]

  NIHON PISCO CO., LTD / SSC6-M5
- [Material]

  Metal parts: SUS316, Seal Rubber: FKM
[Specification]

Fluid medium: Air, Water (Conditional*) Others such as chemicals (Conditional*)
Max. operating pressure: 1.0 MPa
Max. vacuum: -100 kPa
Operating temp. range: -15~120 °C (No freezing)

[Dimensions]

(Unit: mm)
Tube φD	6	φP	11.8
L	22.6	R	M5×0.8
A	3	H (Opposite side)	12
B	25.6	Effective cross-sectional area	3 mm²
C	19.6	Weight	8.4 g

⚠️ Attention⚠️ Attention

Make sure to follow the instructions below when the fluid medium is water or other chemicals.

1.Surge pressure must be controlled lower than max. operating pressure when using water or liquid as a fluid medium.

2.Be sure to place Insert Ring into the tube edge when the tube is inserted into Push-In fittings with water liquid as a fluid medium. (please see below)

3.The specification above may not be applied, depending on the kind of chemicals or mixed gases used as fluid medium.

(1) How to insert and to detach a tube

❶ How to insert a tube

Simpry insert a tube to push-in tube fitting and it is completed.
Make sure to insert a tube up to tube-end.
Lock-claws bite a tube and elastic sleeve seals around the tube.
When installing, please refer to the C dimension in the upper dimension table.

❷ How to detach a tube

Pull out a tube with pushing release-ring, and the tube gets detached.
Make sure to stop air supply before you detach a tube.

(2) How to tighten the screws

❶ Tighten the screws

There are two types of tightening screws: one is the method of tightening the outer diameter hexagon with a wrench, and the other is the method of tightening the hexagon inner diameter with a hexagonal wrench (you can leave a small space between the joints).
In tightening the screw, refer to the following Note 2.

Note 1. Make sure that the outside diameter tolerance of the tube meets the following specifications.

MM size (mm)	Nylon tube	Urethane tube
φ6mm	±0.1mm	±0.15mm

Note 2. When tightening screws, please refer to the following recommended tightening torque.

Screw type	Screw size	Tightening torque
Metric thread	M5×0.8	1.0～1.5N・m

2. Insert Ring

Insert Ring

[Manufacturer / Model]

NIHON PISCO CO., LTD / SSC6-M5

[Dimensions]

Applicable tube	D1	D2	B	Thickness	Weight (g)
(Unit: mm)
O.D.φ6/I.D.φ4	φ4	φ4.5	18.5	0.2	0.35

External Installation

⚠️ Attention⚠️ AttentionWhen using liquid as a medium or connecting the extremely soft tube to the one-touch fitting, be sure to use the included insert ring. If not used, the tube may fall off.

Documents

●The above contents and descriptions are subject to change without notice.
