Low-profile Slide Switches

FeaturesFeatures

Low-profile of 1.4 mm

Part Number Designation

CUS -	1	2	T	B
Series name	No. of poles 1:1 pole 2：2 poles(2 contacts type only)	No. of contacts 2：2 contacts 3：3 contacts 4：4 contacts	Form of packaging T：Taping	Shape of terminal B：Gull wing

CUS -

Series name

No. of poles

1:1 pole
2：2 poles(2 contacts type only)

No. of contacts

2：2 contacts
3：3 contacts
4：4 contacts

Form of packaging

T：Taping

Shape of terminal

B：Gull wing

List of Part Numbers

Part number	No. of poles	No. of contacts	Shape of terminal	Pieces in package	CAD
CUS-12TB	1	2	Gull wing	2500 pcs./reel	3D CAD（Any Model）
CUS-13TB	1	3	Gull wing	2500 pcs./reel	3D CAD（Any Model）
CUS-14TB	1	4	Gull wing	2500 pcs./reel	3D CAD（Any Model）
CUS-22TB	2	2	Gull wing	1400 pcs./reel	3D CAD（Any Model）

Standard Specifications

Operating temp. range	− 20 ~ 70 °C
Storage temp. range	− 40 ~ 85 °C
Sealing	Non washable
Net weight	Approx. 0.08 g (CUS-12) Approx. 0.10 g (CUS-13) Approx. 0.13 g (CUS-14) Approx. 0.11 g (CUS-22)

Electrical Characteristics

Contact rating	Non-switching:DC50 V 100 mA Switching:DC4 V 300 mA Minimum:DC20 mV 1 μA
Contact timing	Non-shorting
Contact resistance	70 mΩ maximum
Insulation resistance	100 MΩ minimum (DC 100 V)
Dielectric strength	AC100 V 60 s

Mechanical Characteristics

No. of positions	2, 3, 4
Stroke	1.5 mm
Stop strength	10 N {1.02 kgf} 15 s
Solderability	245 ± 3 °C 2 ~ 3 s
Soldering heat	Reflow peak : 250 ~ 255 °C Manual soldering : 350 ± 10 °C 3 ~ 4 s
Shear	5 N {0.5 kgf} 10 s
Substrate bending	Width 90 mm, bend 3 mm, 5 s, 1 time
Pull-off strength	5 N {0.5 kgf} 10 s

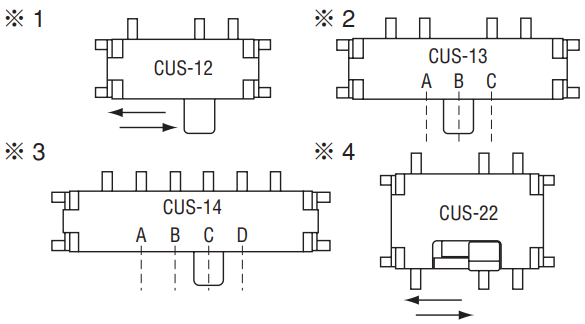

Operating force	CUS-12 ※1 12 ± 1.7 N {0.2 ± 0.17 kgf} CUS-13 ※2： A → B : 1.5 ± 1.2 N {0.15 ± 0.12 kgf} B → C : 2 ± 1.7 N {0.2 ± 0.17 kgf} C → B : 1.5 ± 1.2 N {0.15 ± 0.12 kgf} B → A : 2 ± 1.7 N {0.2 ± 0.17 kgf} CUS-14 ※3 A → B : 1.5 ± 1.2 N {0.15 ± 0.12 kgf} B → C : 2 ± 1.7 N {0.2 ± 0.17 kgf} C → D : 2 ± 1.7 N {0.2 ± 0.17 kgf} D → C : 1.5 ± 1.2 N {0.15 ± 0.12 kgf} C → B : 2 ± 1.7 N {0.2 ± 0.17 kgf} B → A : 2 ± 1.7 N {0.2 ± 0.17 kgf} CUS-22 ※4 2 ± 1.7 N {0.2 ± 0.17 kgf}

Environmental Characteristics

Vibration	Amplitude 1.5 mm or Acceleration 98 m/s2,10-500-10 Hz, 3 directions for 10 cycles each
Shock	490 m/s2, 11 ms, 6 directions for 3 times each
Load life	Continuous load 10000 cycles, DC4 ± 0.5 V, 300 ± 10 mA
Humidity	40 °C, Relative humidity 90 ~ 95 %,240 h, No load
High temp. exposure	85 °C, 96 h, No load
Low temp. exposure	− 40 °C, 96 h, No load
Thermal shock	− 40 (0.5 h) ~ 85 °C (0.5 h), 5 cycles

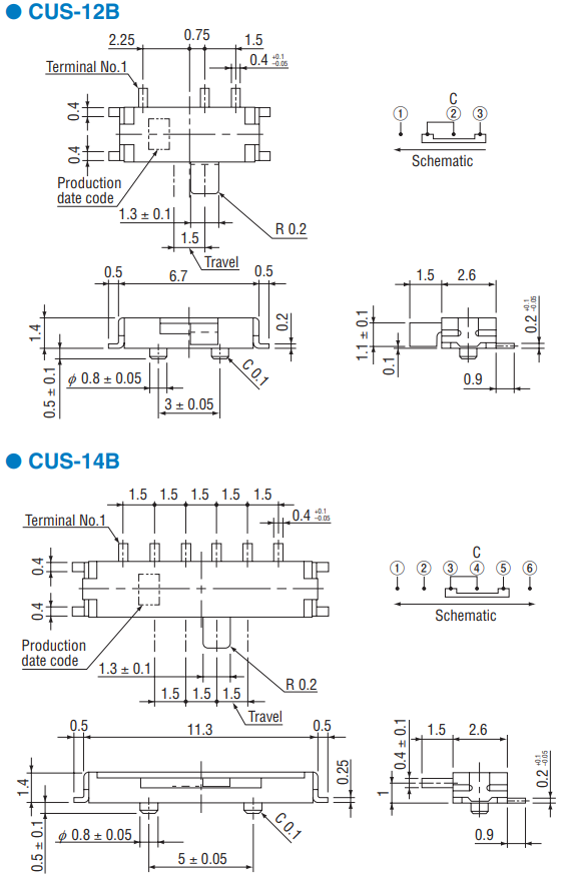

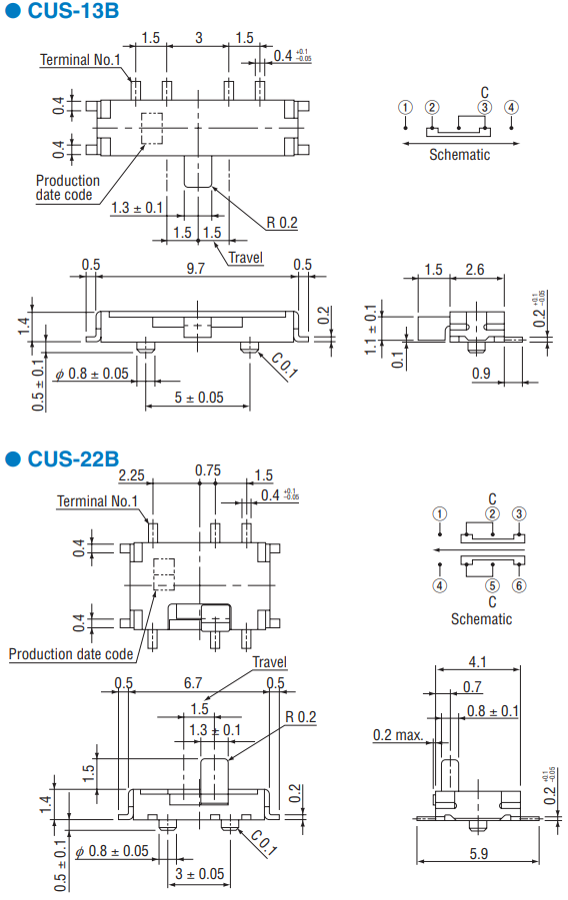

Outline Dimensions

Unless otherwise specified, tolerance : ± 0.2 (Unit : mm)

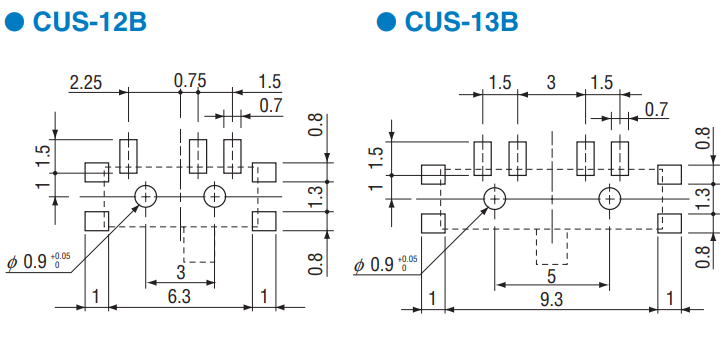

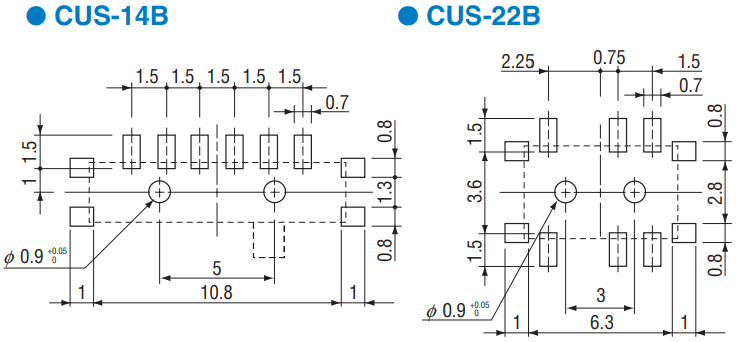

Recommended P.C.B. Pad Outline Dimensions

(Unit : mm)

Packaging specifications

Taping version is packaged in 2500 pcs. par reel (1400 pcs. for CUS-22).
Taping version is boxed with 1 reel (2500 pcs. or 1400 pcs.).
Maximum number of consecutive missing pieces = 2.

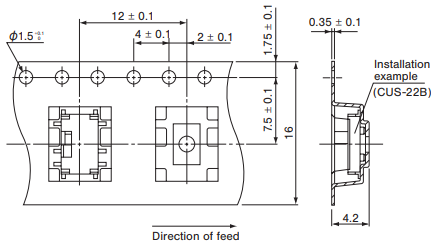

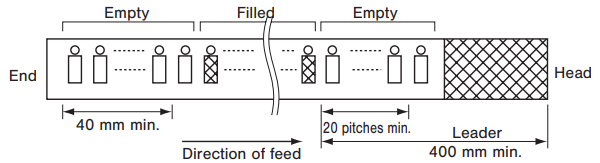

Leader length and reel dimension are shown in the diagrams below.
