Illuminated pushbutton switch TM/TR

Ultra-Miniature Illuminated Pushbutton Switches

Specifications

Part Number Designation

LED specification

• TM2-21-## / TR2-21-##

List of Part Numbers

Optional Accessories

1. Color buttons

Size	Illuminated type or Non	Color	Part No.	Outline dimensions
□7.5 ㎜	Without LED	Black	140000480712
		Gray	140000480713
		White	140000480714
		Ivory	140000480715
		Silver	140000480764
		Red	140000480744
		Green	140000480746
		Blue	140000480745
	With LED, Dot illuminated	Black	140007480068
		Gray	140007480069
		White	140007480070
		Ivory	140007480071
		Silver	140007480076
□10 ㎜	Without LED	Black	140000480716
		Gray	140000480715
		White	140000480718
		Ivory	140000480719
		Silver	140000480765
		Red	140000480748
		Green	140000480750
		Blue	140000480749
	With LED, Dot illuminated	Black	140007480117
		Gray	140007480118
		White	140007480119
		Ivory	140007480120
		Silver	140007480125
□12.6 ㎜	Without LED	Black	140000480720
		Gray	140000480721
		White	140000480722
		Ivory	140000480723

2. Mounting frames

Applicable size	Applicable model	Color	Part No.	Outline dimensions
for □7.5 ㎜	TM1/ TM2/ TR1/ TR2	Black	140000340143
		Gray	140000340144
		White	140000340145
		Ivory	140000340146
for □10 ㎜	TM1/ TM2/ TR1/ TR2	Black	140000340147
		Gray	140000340148
		White	140000340149
for □12.6 ㎜	TM1/ TM3	Black	140000340215
		Gray	140000340216
		White	140000340217
	TR1/ TR3	Black	140000340151
		Gray	140000340152
		White	140000340153

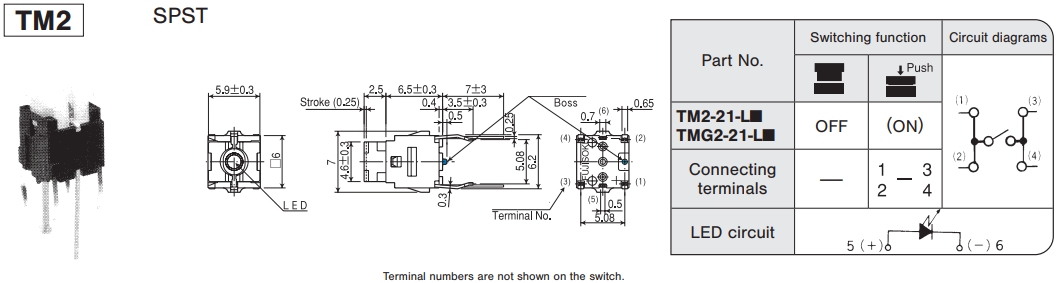

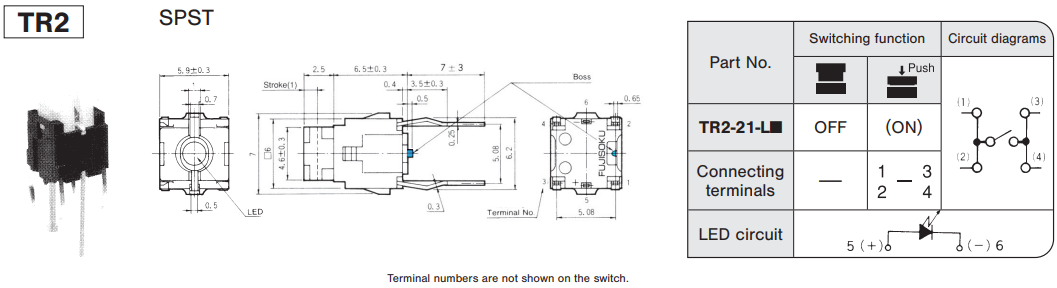

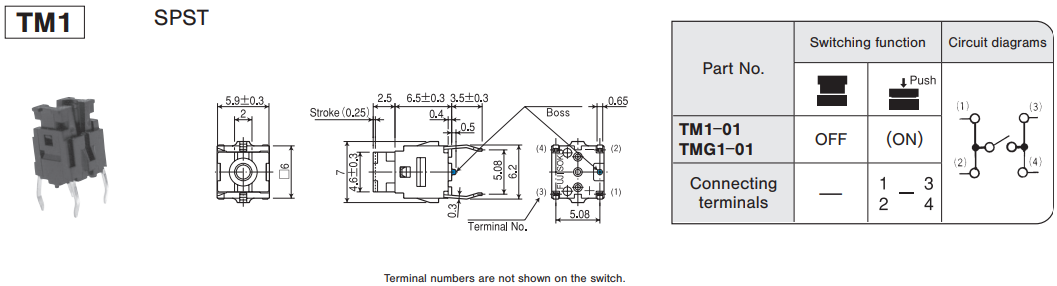

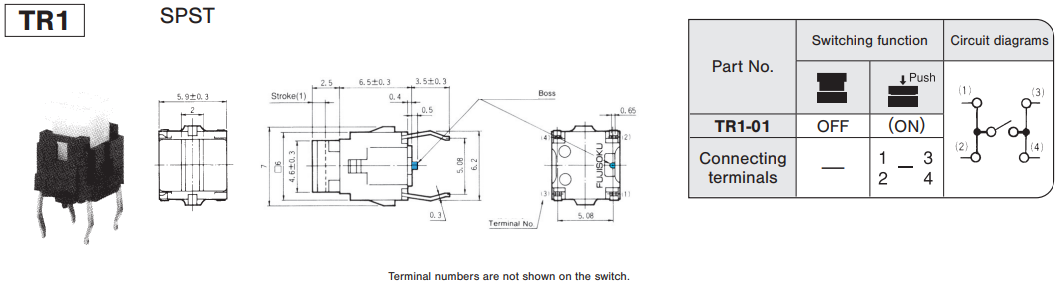

Outline Dimensions

(Unit:mm)

Packaging Specifications

(Unit:mm)

Handling Notes

Ambient Conditions

• In case of switches with silver-plated contacts, do not use in an environment where there is corrosive gas such as sulfuric or ammonia gas which may affect the silver plating.
• TM and TR series are open-structure switches and should not be used in a dusty environment.

Soldering Specifications

• Preheating in the flow line should be 80 °C to 120 °C and within 120 seconds.
• Do not dip solder the switches with color buttons or mounting frames attached. Soldering heat may deform the accessories or cause ingress of flux.

Flux Cleaning

• Solvents : Fluorine or Alcohl type
• The TM/TR series are not washable. To wash the PC board, clean the soldering surface of the PC board with a brush so that the switch is not exposed to the cleaning solution.
• After soldering, wait until the temperature of the terminals cool down to 90℃ or below or until the parts are exposed to room temperature for more than 5 min. before washing.
