Pressure transducer with amp. PA-800
- ●To buy this product, please go to the following Online Web stores.
PRESSURE TRANSDUCERS WITH AMP. PA-800

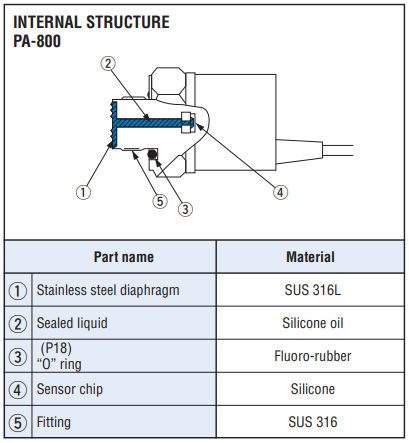

- High corrosion resistance by double diaphragm structure
- Built-in amplifier circuit
- Built-in temperature compensation function (0 ~ 50 °C)
- Voltage output mode
|
|
Standard specifications
| Operating temp. range | −20 ~ 70°C |
|---|---|
| Compensated temp. range | 0 ~ 50°C |
| Operating humidity | 35 ~ 85%RH（No condensation） |
| Storage temp. | −20 ~ 80°C（Atmospheric pressure, humidity 65 %RH maximum） |
| Pressure medium | Corrosive gases/liquids compatible with SUS316L and SUS304 |
| Insulation resistance | 100 (500 V DC)MΩ min. |
| Dielectric strength | 500 V AC, 60 s（Leakage current 1 mA maximum） |
| Sealed liquid | Silicone oil |
| Pressure port | G 3/8 (PF 3/8) An “O” ring is provided. (P18) |
| Supply voltage | 12 ~ 24 ± 10 %V DC |
| Ripple content | 10 % (P-P)maximum |
| Consumption current | 20mA maximum |
| Net weight | Approx. 125g |
Analog output
| Pressure range | 102G | 102V | 352G | 103G |
|---|---|---|---|---|
| Output voltage | 1 ~ 5V DC | |||
| Zero voltage | 1 ± 0.04V (at 25 °C) | |||
| Span voltage | 4 ± 0.04V (at 25 °C) | |||
| Output current | 1mA maximum（Load resistance 5 kΩ minimum) | |||
| Linearity/Hysteresis | ± 0.3%F.S. | ± 0.5%F.S. | ||
|
Thermal error 0 ~ 50 °C |
ZERO:± 0.05/± 0.1%F.S./°C SPAN:± 0.05/± 0.1%F.S./°C | |||
| Supply voltage effect | ± 0.1V maximum | |||
| Response | Approx. 2ms | |||
| Gravitational effect (From vertical position to horizontal position) |
Approx. 0.5%F.S.max. | Approx. 0.15%F.S.max. | Approx. 0.05%F.S.max. | |
Model Number Designation
| PA-800- | 102 | G- | 05 |
|---|---|---|---|
|
Series name |
Rated pressure range 102：0 ~ 98.1 kPa {0 ~ 1 kgf/cm2} |
Pressure reference G：Gauge |
Thermal error 05：0.05 % F.S./°C |
List of model numbers
| Model numbers | Pressure reference | Rated pressure | Maximum pressure | Break-down pressure | Thermal error | CAD |
|---|---|---|---|---|---|---|
| PA-800-102G-05 | Gauge | 98.1{1}kPa {kgf/cm2} | 196{2}kPa {kgf/cm2} | 294{3}kPa {kgf/cm2} | 0.05 % F.S./°C | |
| PA-800-102G-10 | Gauge | 98.1{1}kPa {kgf/cm2} | 196{2}kPa {kgf/cm2} | 294{3}kPa {kgf/cm2} | 0.1 % F.S./°C | |
| PA-800-102V-05 | Gauge | -98.1{-1}kPa {kgf/cm2} | 196{2}kPa {kgf/cm2} | 294{3}kPa {kgf/cm2} | 0.05 % F.S./°C | |
| PA-800-102V-10 | Gauge | -98.1{-1}kPa {kgf/cm2} | 196{2}kPa {kgf/cm2} | 294{3}kPa {kgf/cm2} | 0.1 % F.S./°C | |
| PA-800-352G-05 | Gauge | 343{3.5}kPa {kgf/cm2} | 686{7}kPa {kgf/cm2} | 1030{10.5}kPa {kgf/cm2} | 0.05 % F.S./°C | |
| PA-800-352G-10 | Gauge | 343{3.5}kPa {kgf/cm2} | 686{7}kPa {kgf/cm2} | 1030{10.5}kPa {kgf/cm2} | 0.1 % F.S./°C | |
| PA-800-103G-05 | Gauge | 981{10}kPa {kgf/cm2} | 1961{20}kPa {kgf/cm2} | 2942{30}kPa {kgf/cm2} | 0.05 % F.S./°C | |
| PA-800-103G-10 | Gauge | 981{10}kPa {kgf/cm2} | 1961{20}kPa {kgf/cm2} | 2942{30}kPa {kgf/cm2} | 0.1 % F.S./°C |
Environment Characteristics
| Test item | Test conditions (At 25 ± 5 °C) | Permissible change |
|---|---|---|
| Vibration | 10 ~ 500 Hz, 1.5 mm maximum/98.1 m/s2 , 3 directions for 2 hours each |
Zero voltage, Span voltage: ± 1 %F.S. maximum each |
| Shock | 981 m/s2 , 3 directions for 3 times each | |
| Pressure cycling | 0 ~ Rated pressure, 106 cycles | |
| Moisture resistance | 40 °C, 90 ~ 95 %RH, 240 hrs. |

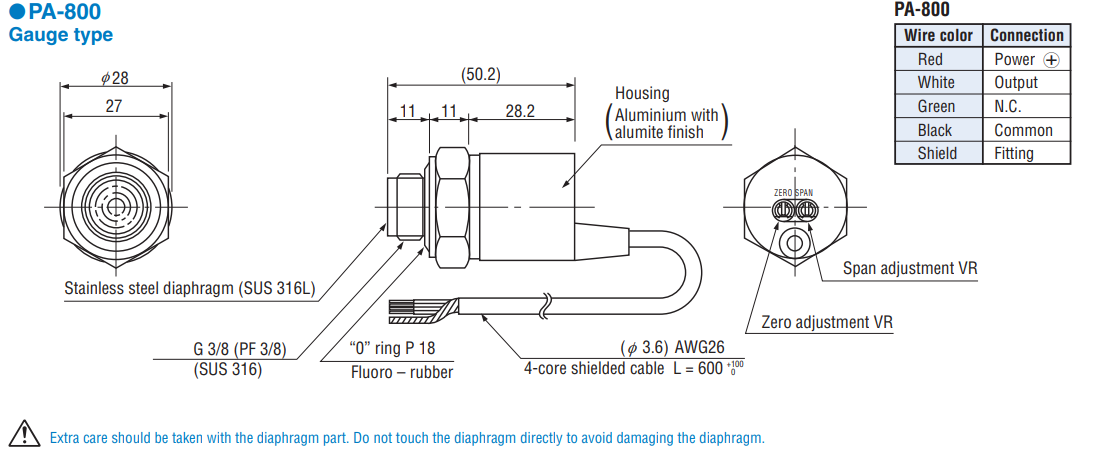

Outline Dimensions

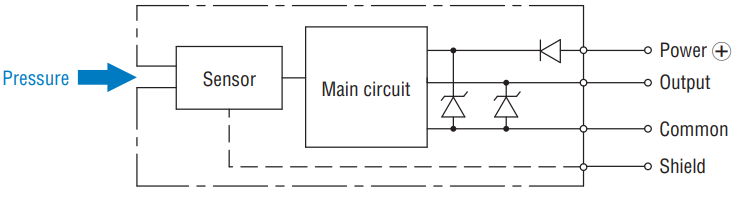

Internal circuit diagram
|
|
Documents
- ●The above contents and descriptions are subject to change without notice.
